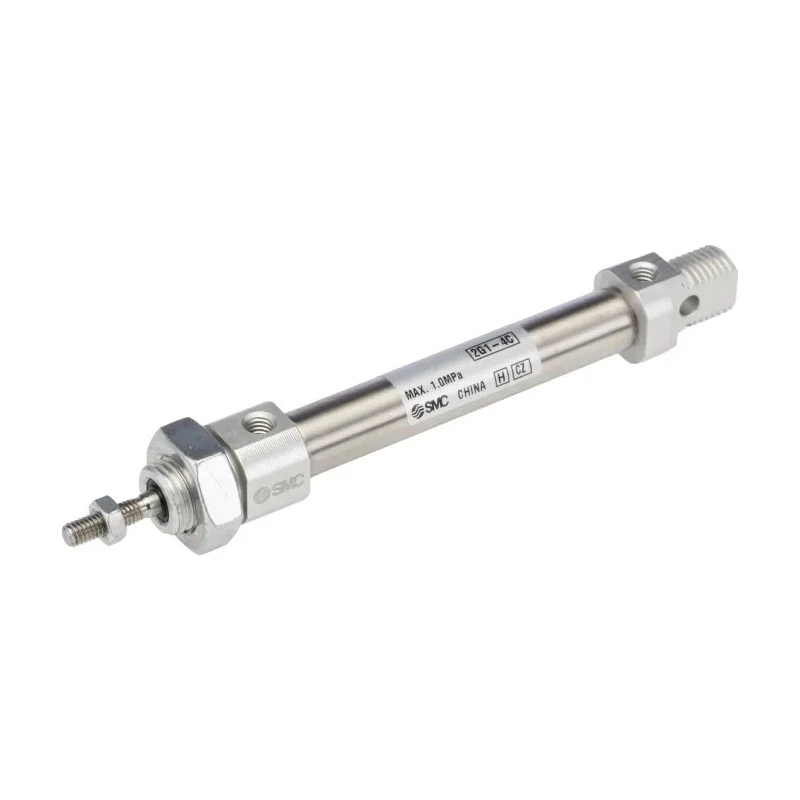

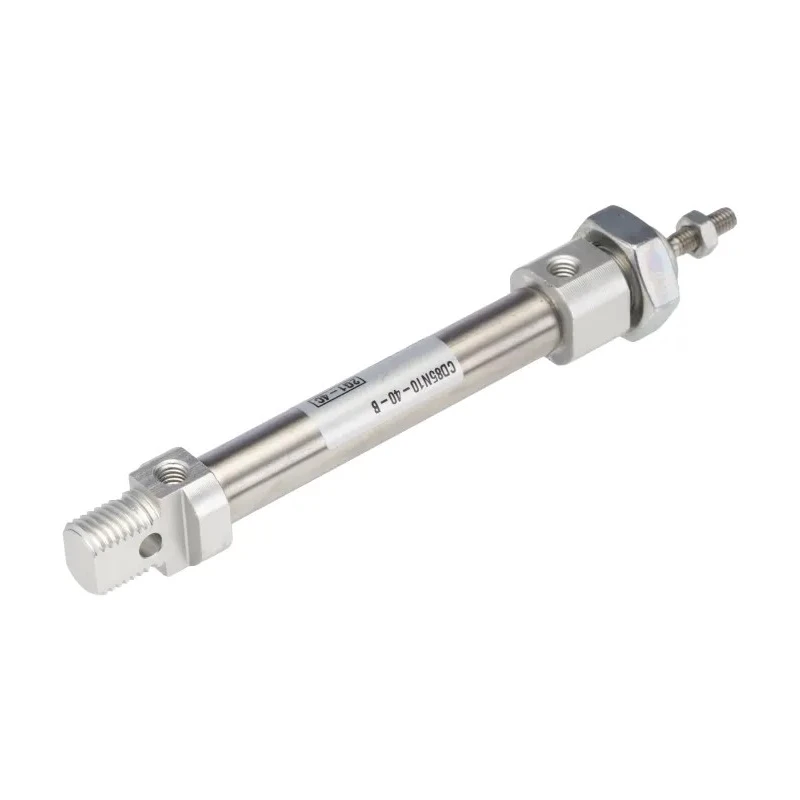

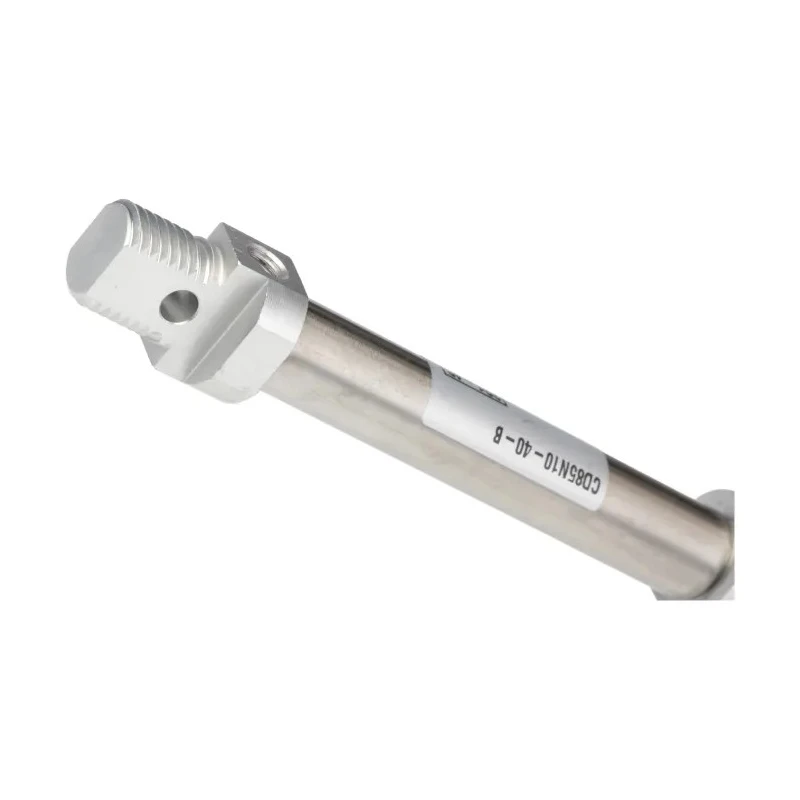

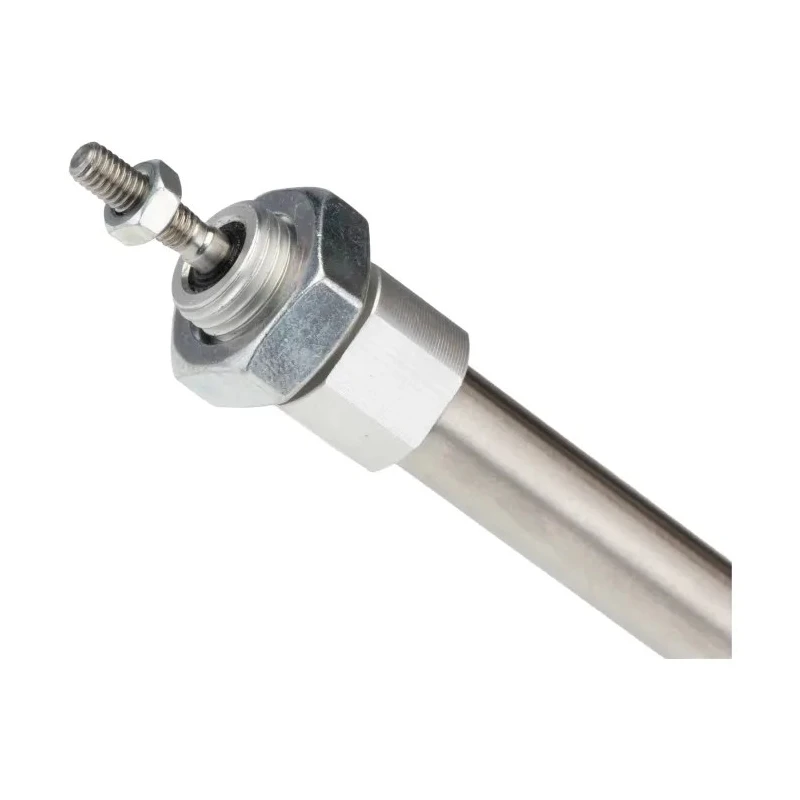

SMC 40 mm Stroke Length Double Acting Cylinder Aluminium Alloy Body Clevis Mount Rubber Bumper Cushioning CD85

Free Delivery in India | Lowest Global Shipping Charges

SMC 40 mm Stroke Length Double Acting Cylinder Aluminium Alloy Body Clevis Mount Rubber Bumper Cushioning CD85



Category Pneumatics & Hydraulics Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Model	CD85
Mount Type	Clevis
Series	CD85
Maximum Operating Temperature	80°C
Stroke Length	40mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 6432
Cushioning Type	Rubber Bumper
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M4

Key Features

Double acting operation allows controlled bidirectional push and pull movement.
Aluminium alloy body offers lightweight strength for compact automation.
Cushioning with rubber bumpers reduces impact and vibration for longer service life.
Clevis mounting enables easy pivot installation in varied orientations.
Metric M4 male piston rod thread facilitates simple accessory attachment.
Maximum piston speed rated at 1500 mm/s supports rapid cycling tasks.
Designed for operating temperatures up to 80 degrees Celsius.
Conforms to ISO 6432 standard for dimensional and interface interchangeability.

Product Description

SMC CD85N10-40-B is a high-quality double acting pneumatic cylinder with a 40 mm stroke length, featuring an aluminium alloy body for optimal lightweight strength in compact automation systems. Designed for industrial use, this cylinder provides reliable and precise linear motion through its double acting action, delivering push and pull force in pneumatic systems.

The cylinder mounts via a clevis pivot, allowing effective installation in applications requiring rotational alignment between load and actuator. Rubber bumpers cushion end-of-stroke impacts to minimize vibrations and extend the service life of internal seals and bearings, especially under high-cycle conditions.

The piston rod is a single type with a metric M4 male thread, simplifying the integration of compatible fittings, sensors, and accessories, ensuring flexible tooling attachment. It is engineered to perform at piston speeds up to 1500 mm/s, supporting rapid operation cycles common in manufacturing, assembly automation, and electronic tooling.

With a maximum operating temperature of 80 degrees Celsius, the CD85N10-40-B cylinder is suitable for environments requiring elevated temperature resistance. It complies with ISO 6432 standards, guaranteeing dimensional uniformity and interchangeability with other small bore cylinders.

Applications include pick-and-place actuators in assembly lines, valve actuation in control panels and jigs, compact pneumatic tooling in electronics manufacturing, and small press or clamp operations in mechanical workshops. The aluminium alloy body provides a favorable strength-to-weight ratio, making it ideal for compact and weight-sensitive installations.

Double acting operation enables controlled bidirectional force. Aluminium alloy body for lightweight strength. Rubber bumper cushioning protects internal components from impact. Clevis mount allows pivoting installation.

Metric M4 male thread piston rod for easy accessory fitting. Rated for piston speeds up to 1500 mm/s. Supports operating temperatures up to 80°C. Conforms to ISO 6432 for interchangeability. Suitable for pick-and-place, valve actuation, and compact pneumatic tooling.

Manufactured in China, supplied new. Explore more pneumatic cylinders and actuators for industrial automation and fluid power applications on EnvMart.
