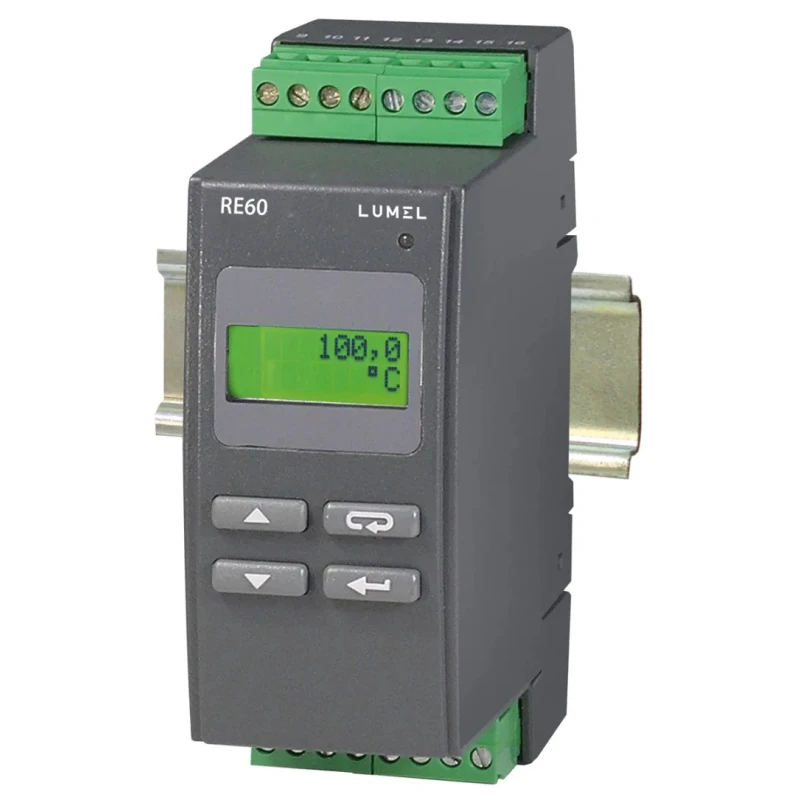

Lumel RE60 DIN Rail PID Temperature Controller 1 Input, 3 Output Relay 230V AC On-Off RE60

Lumel RE60 PID Temperature Controller RE60 is a high-precision device designed for controlling temperature via on-off control using 1 input sensor and 3 relay outputs rated at 230V AC. This controller is suitable for industrial applications including telecommunications, food processing, and drying industries requiring stable temperature control.

The device's LCD display allows for easy programming and monitoring of process parameters. It supports J Type Thermocouple and PT100 input types, providing flexibility for temperature sensing. The controller includes 1 control output and 2 alarm outputs, enabling reliable temperature management and alarms.

Designed for installation on standard 35 mm DIN rails, it offers convenience and compactness. Operating within a temperature range from 0°C to 50°C, the RE60 maintains consistent operation under typical industrial conditions. Diagnostics for error detection in the measuring circuit enhance reliability.

This RE60 controller complies with key industrial standards such as EN 61010-1, EN 60529, and electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-4. With an IP40 rating, the device is protected against solid objects larger than 1 mm, suitable for controlled environments.

The compact design with dimensions 12 mm length, 45 mm width, and panel depth of 100 mm makes it ideal for tight spaces. The maximum current rating is 5A and maximum voltage 250V, supporting standard industrial loads.

Equipped with 1 control input and 3 relay outputs for versatile control. Supports J Type Thermocouple and PT100 sensors for accurate temperature measurement. LCD display facilitates easy configuration and monitoring. Operating temperature range from 0°C to 50°C ensures stable functioning.

Mounts on 35 mm DIN rail for simple and secure installation. Includes diagnostics to detect measuring circuit errors. Complies with multiple EN standards for quality and safety. IP40 rated for dust protection in industrial environments.

Ideal for use in telecommunications cabinet temperature control, food industry processes, drying industry setups, and other temperature stabilization applications. This product seamlessly integrates into industrial control systems requiring precise PID temperature regulation.
