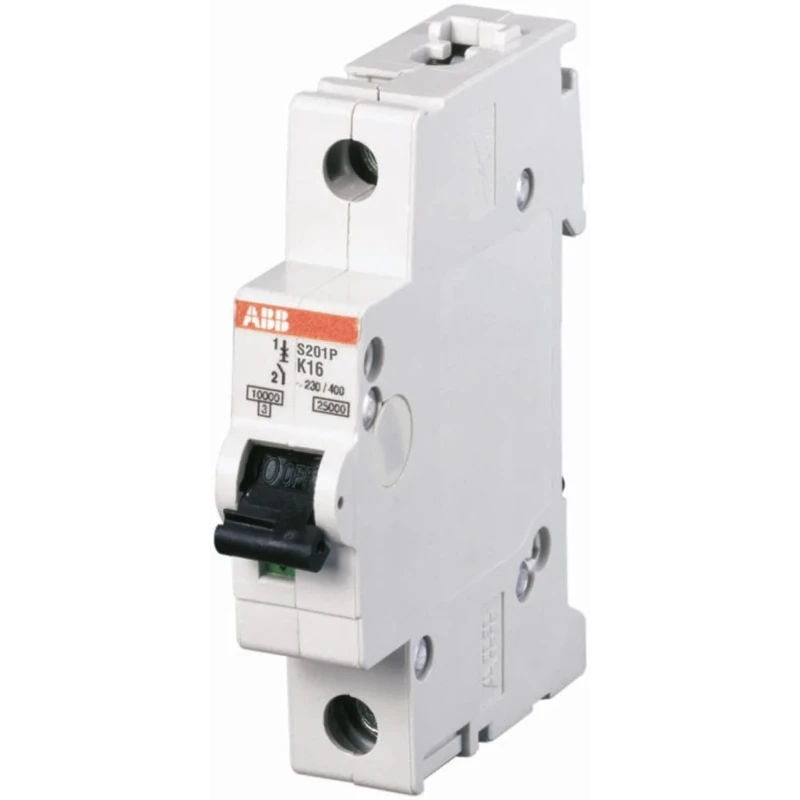

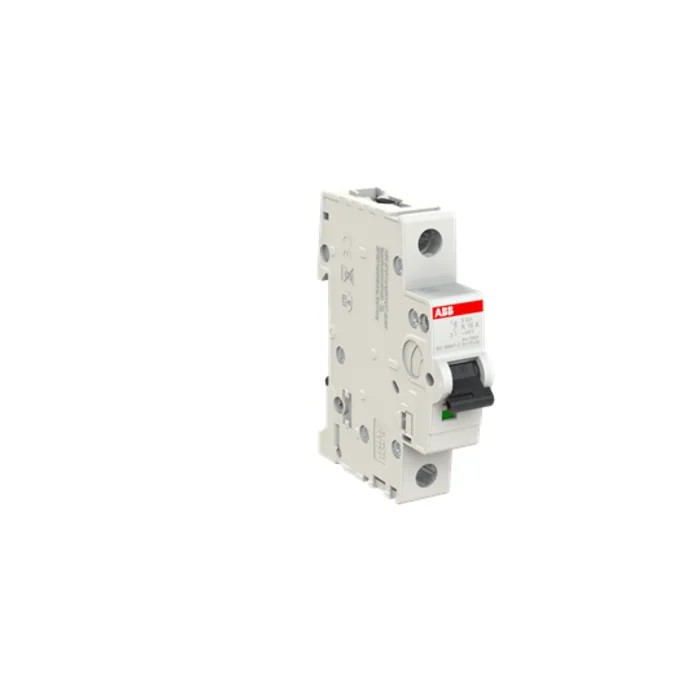

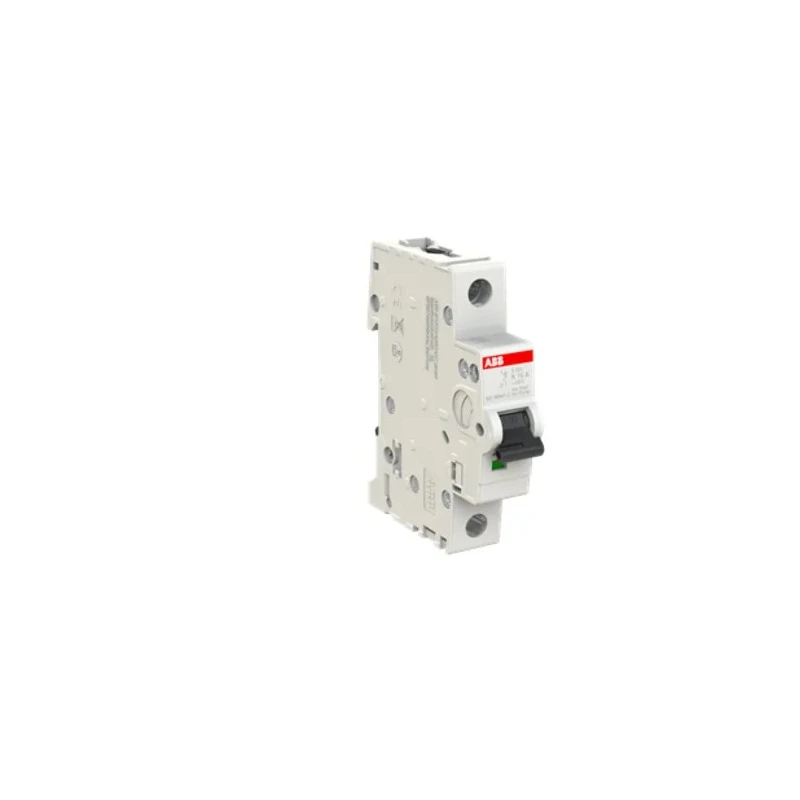

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 16A, Type K, 253V AC, 72V DC, 6kA 2CDS251001R0467 S201-K16

ABB 2CDS251001R0467 S201-K16 System Pro M Compact Miniature Circuit Breaker is a high-performance electrical protection device rated at 16A current for single-pole circuits. It offers both AC voltage rating of 253V and DC voltage rating of 72V, suitable for a wide range of industrial and commercial electrical applications.

This Type K breaker is optimized for motor control circuits, providing reliable tripping at currents between 8 and 12 times its nominal rating to prevent nuisance trips during high inrush currents common in motor startup. It integrates a thermal tripping mechanism for overload protection and an electromagnetic mechanism to safeguard against short circuits. The contact position indicator enables quick visual status checks, enhancing operational safety.

Constructed with insulated housing, this breaker protects users against electric shock hazards. Its low power dissipation of 2 watts minimizes energy loss, ensuring efficiency in prolonged usage. Mounting on a standard 35mm DIN rail and equipped with screw terminals, it eases installation and maintenance tasks, securely fastening conductors to prevent wiring faults.

This breaker features an IP20 and IP40 rating, offering dust and limited moisture protection, making it suitable for use in challenging industrial conditions that include automotive manufacturing, power plants, mining, and oil and gas industries. It complies with internationally recognized IEC and EN standards, guaranteeing quality and safety.

The compact size with a width of 17.5mm and dimensions of 88mm height by 76mm depth allows integration into existing control panels efficiently. The ABB System Pro M Compact Series is designed for easy disassembly and sustainability. Notably, this MCB withstands vibration and shock, supporting robust industrial environments.

Designed for motor control circuit protection with tripping current between 8 and 12 times rated current. Includes delayed thermal tripping and electromagnetic short circuit protection. DIN rail mounting with screw terminals for secure wiring.

Low power loss of 2W ensures energy efficiency. Electrical endurance up to 20,000 cycles extends service life. Compact 17.5mm width with IP20 and IP40 protection ratings. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

Suitable for harsh industrial environments including automotive, mining, power generation, and oil and gas sectors.

This product belongs to EnvMart's Miniature Circuit Breaker category, suitable for applications requiring reliable, energy-efficient circuit protection in industrial, manufacturing, power generation, and automation systems.
