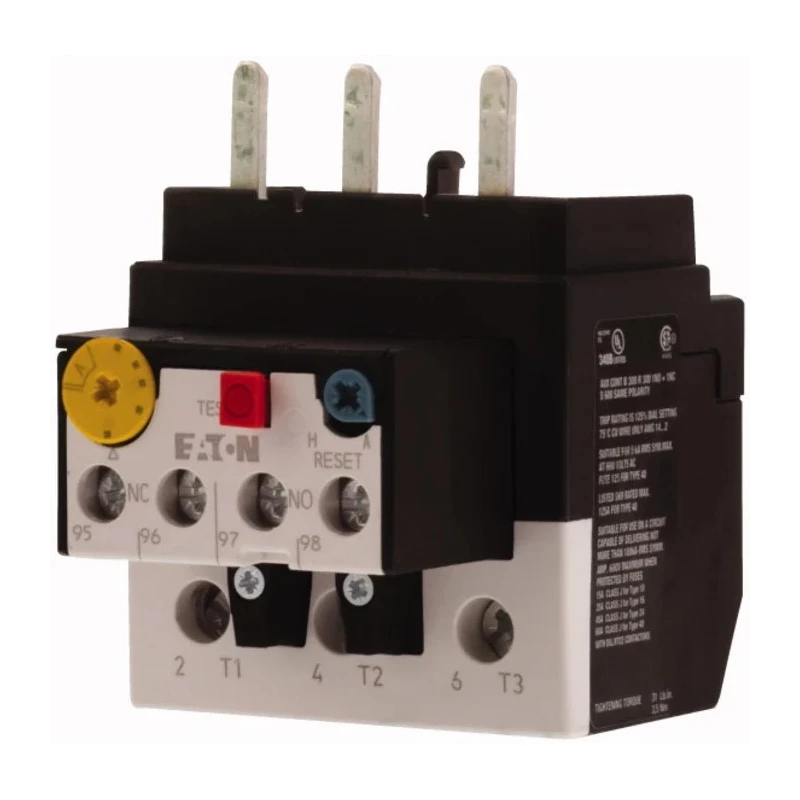

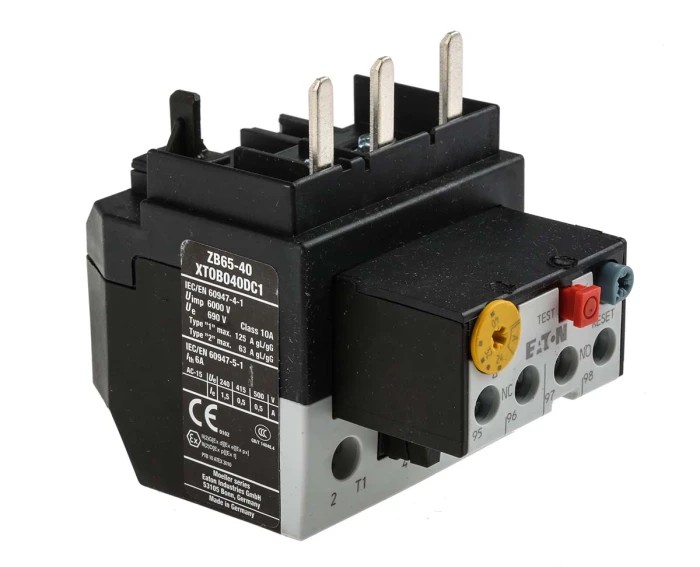

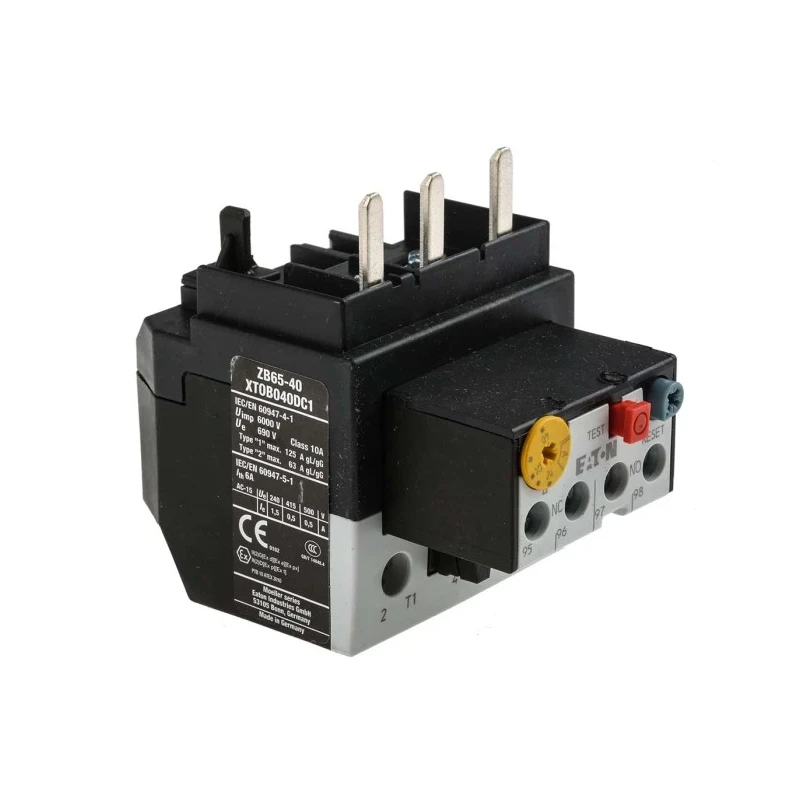

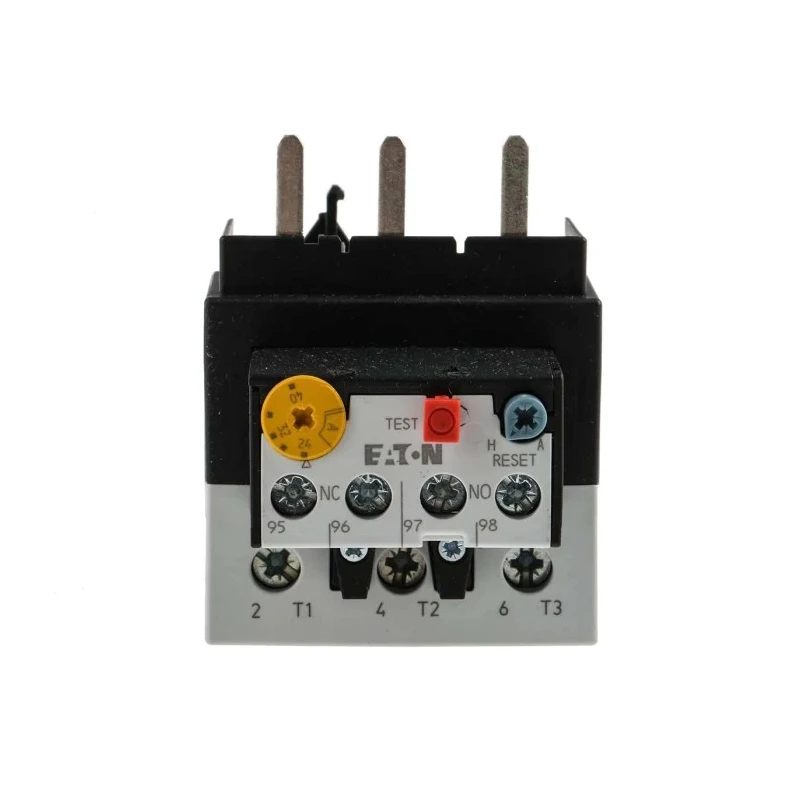

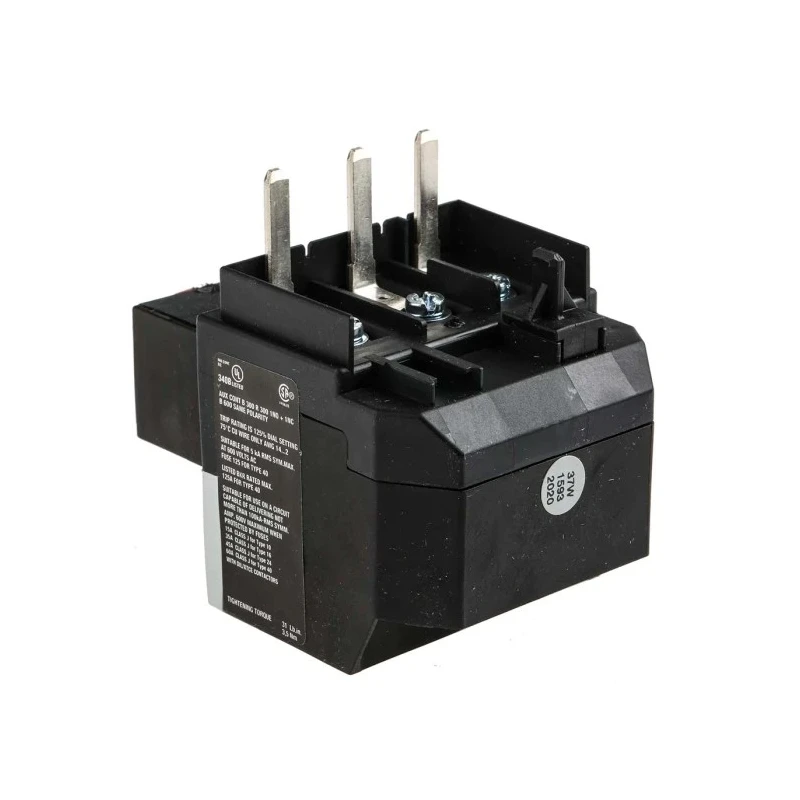

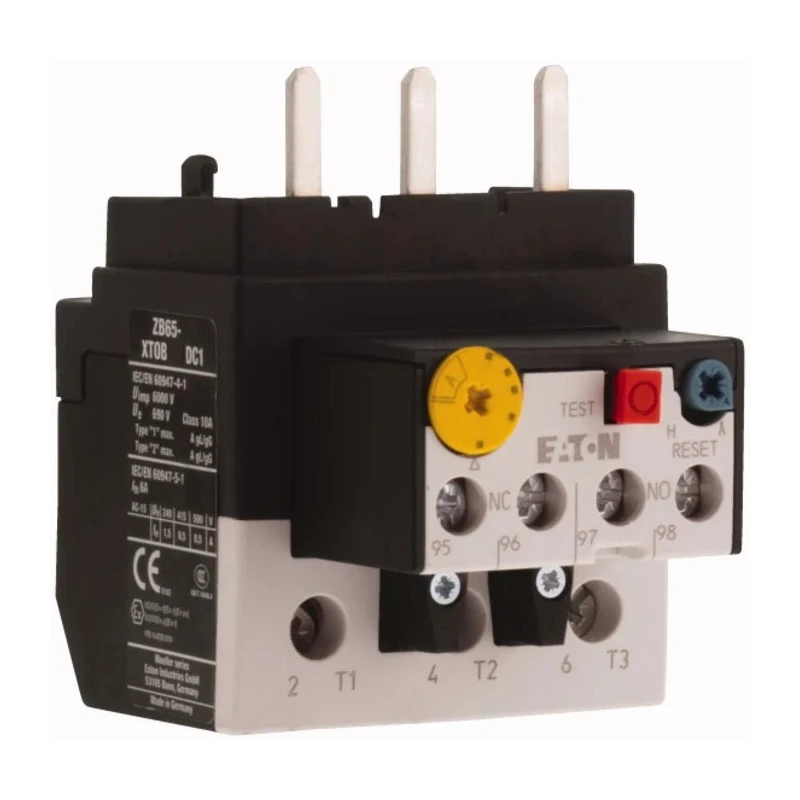

Eaton ZB65 Overload Relay 1 NO/1 NC, 24-40 A FLC, 40A Contact Rating, 7.5 W Power, 500V AC ZB65

Eaton ZB65 Overload Relay 1 NO/1 NC, model ZB65, is engineered for precise motor protection with a full load current range of 24 to 40 A and a relay contact rating of 40 A. It operates at 500 V AC control voltage and has a power consumption of 7.5 W. This robust relay integrates seamlessly with contactors to monitor electrical circuits, protecting equipment from overheating and electrical faults to ensure longevity and safety.

The ZB65 series overload relay features screw terminals compatible with both solid and stranded conductors for secure installation. It supports both automatic and manual reset methods, enhancing operational convenience. The relay is built to withstand challenging environments, featuring a wide operating temperature range of -5°C to 55°C and a rated impulse withstand voltage of 6 kV to resist sudden voltage spikes.

Compact and lightweight, measuring 102 mm by 60 mm by 79.2 mm and weighing approximately 220 g, this relay supports efficient space management in control panels. It complies with international standards including IEC/EN 60947-4-1, UL, CSA, VDE, and CE approvals, assuring quality and reliability for industrial and automation applications.

Motor full load current rating: 24-40 A. Relay contact current rating: 40 A. Screw terminal connections compatible with varied wire types. Resettable overload protection with both automatic and manual reset. Operating temperature range suitable for demanding industrial environments.

Rated impulse withstand voltage of 6 kV for surge protection. Compact size and light weight for easy installation. Control voltage of 500 V AC and contact voltage rating of 690 V AC. IP00 ingress protection; avoid exposure to moisture.

Certified to multiple international standards ensuring safe and reliable operation.

This Eaton ZB65 Overload Relay is ideal for use in industrial automation, manufacturing, HVAC systems, and electrical control panels requiring dependable motor protection. Its construction and certifications make it a trustworthy component for demanding electrical control applications. Browse Eaton components and Overload Relays on EnvMart for further industrial automation needs.
