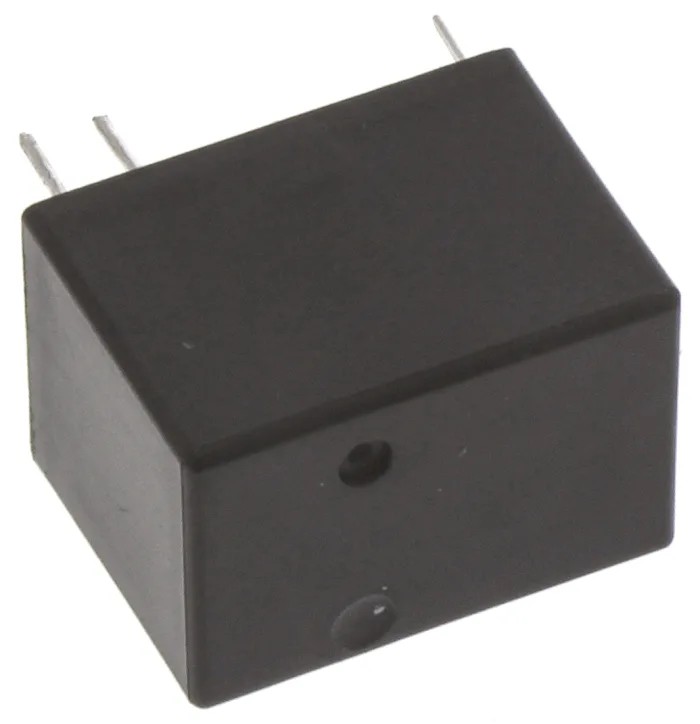

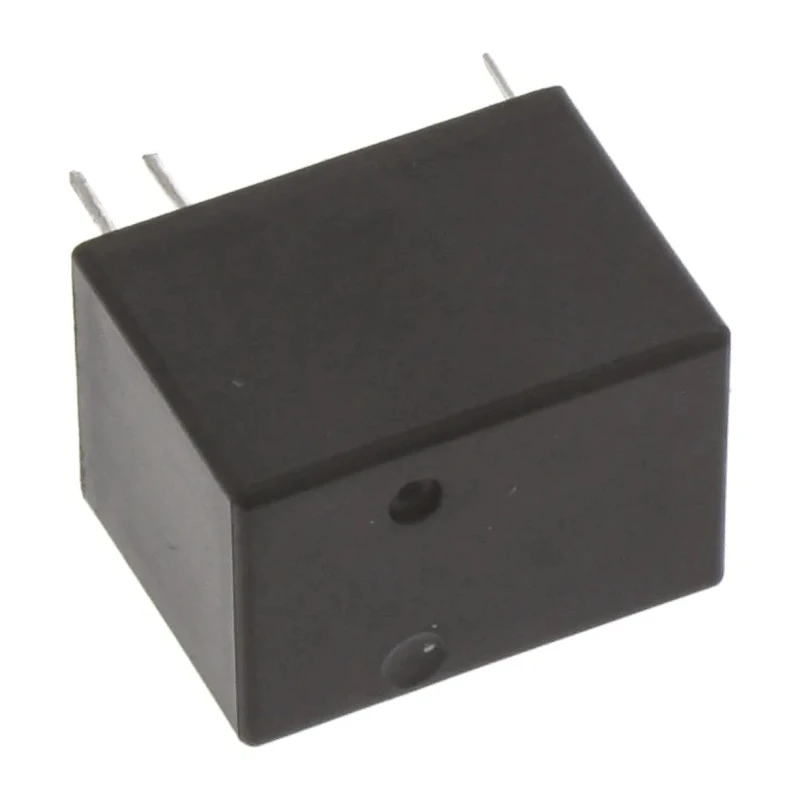

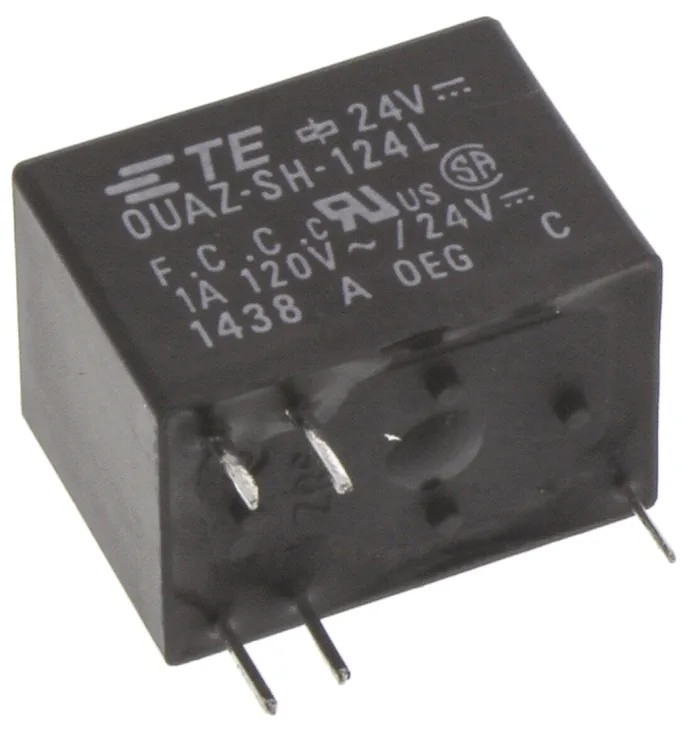

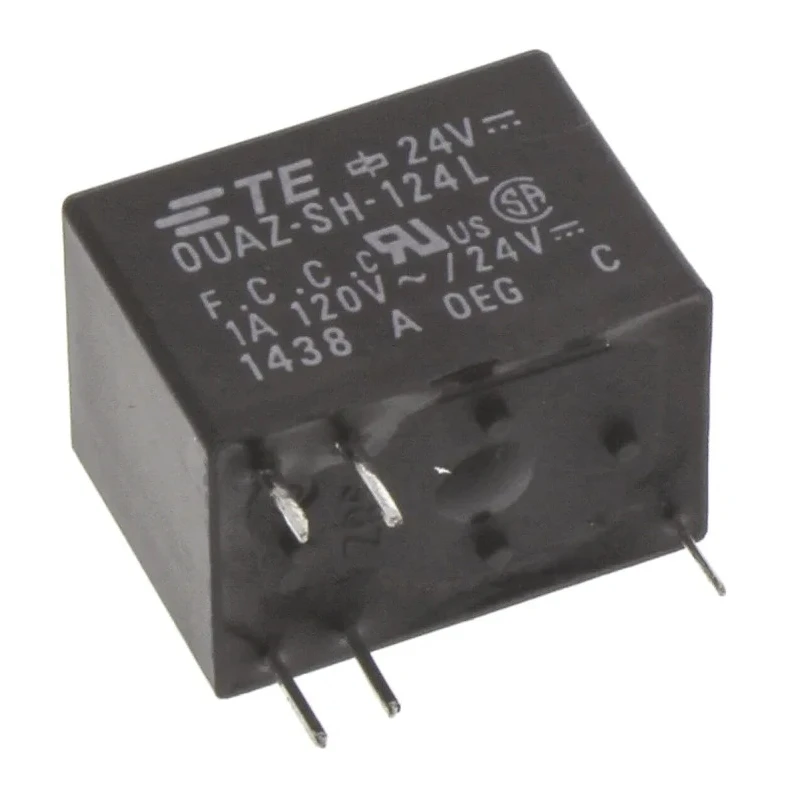

TE Connectivity PCB Signal Relay 24V DC Coil 2A DPDT OUAZ-SH-124L

TE Connectivity OUAZ-SH-124L PCB Signal Relay offers precise signal switching with a coil voltage of 24V DC and a switching current capacity of 2A, making it suitable for various electronic and industrial control circuits.

This relay features a DPDT (Double Pole Double Throw) contact configuration, allowing multiple circuit switching within a compact form factor. The relay is designed for PCB mounting using through-hole terminals, supporting easy and secure assembly onto printed circuit boards.

Operating reliably within temperatures from -30°C to 60°C, this relay is constructed with gold plated contacts to maximize conductivity and reduce wear. The coil resistance is 1200 ohms, consuming 450 milliwatts of power, which ensures energy-efficient operation. Dimensions of 15.4mm in length, 7.6mm in width, and 11.5mm in height provide a compact footprint ideal for dense electronic assemblies.

The relay complies with RoHS standards, and has UL and CSA approvals, ensuring adherence to environmental and safety requirements. The relay’s fully sealed design protects against dust and moisture, extending long-term reliability in demanding environments.

This product is suitable for industrial automation, electrical control systems, signal conditioning, and various electronics manufacturing applications requiring reliable, low-voltage signal relay capabilities.

Designed for mounting on PCB with through-hole terminal type for easy board integration. Operates reliably between -30°C and 60°C operating temperature range. Gold plated contacts ensure superior conductivity and durability.

Compact dimensions of 15.4mm length, 7.6mm width, and 11.5mm height suit tight electronic assemblies. Coil resistance is 1200 ohms with power consumption of 450mW for efficient operation. Supports switching AC voltage of 24V and DC voltage of 24V for flexible applications.

UL and CSA approvals with RoHS compliance guarantee safety and environmental standards. Fully sealed design protects internal components from contaminants and extends lifespan. Explore more TE Connectivity products in the Signal Relay category on EnvMart for advanced electronic switching solutions.
