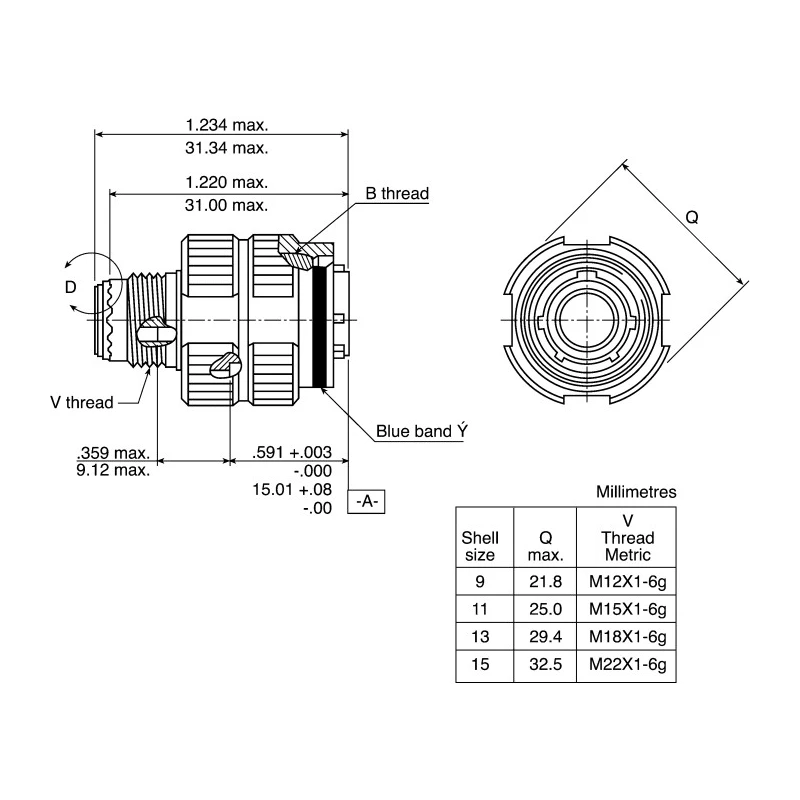

Amphenol Limited MIL Spec Circular Connector TV Copper Alloy Straight 6 Way Cable Mount Plug 600, 850V TV06RW-11-98SA(W52)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 850V ac |
| Brand | Amphenol Limited |
| Colour | Green |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV06RW-11-98SA(W52) |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 11 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Complies with MIL-DTL-38999 military standard for demanding applications.
- Rated for 600 and 850V AC voltage and 7.5A current carrying capacity.
- Constructed with aluminium housing plated in zinc cobalt for durability.
- Features screw coupling for secure and vibration-resistant mating.
- Operates reliably from -65°C to 175°C temperature range.
- Includes gold-plated copper alloy female contacts for enhanced conductivity.
- Green coloured shell with strain relief for cable protection.
Product Description
Amphenol Limited TV06RW-11-98SA(W52) MIL Spec Circular Connector is a cable mount plug designed to meet the demanding requirements of military and industrial applications. This product features a copper alloy body and a straight orientation, supporting robust electrical connections in harsh environments.
Compliant with MIL-DTL-38999 Series 3, the connector shell is crafted from aluminium alloy and finished with a zinc cobalt plating that provides exceptional corrosion resistance while being cadmium free, making it environmentally friendly. The green-coloured shell and gold-plated copper alloy female contacts ensure both durability and high conductivity.
This cable mount plug supports a voltage rating of 600 and 850V AC and a maximum current of 7.5A. It is designed with screw coupling mating type for secure and reliable mechanical connection, ensuring vibration resistance during operation. The connector operates efficiently across an extended temperature range from -65°C minimum to 175°C maximum, suitable for rugged industrial, military, aerospace, and communications applications.
The termination type is crimp with rear release contacts, supplied with the connector shell. It includes strain relief for cable protection and is part of the TV series, shell size 11. It features a standard connector size and is keyed for proper orientation.
Meets military standard MIL-DTL-38999 for high performance and durability. Aluminium housing with environmentally safe zinc cobalt plating. Gold-plated copper alloy contacts ensure reliable electrical performance. Robust screw coupling mechanism for secure mating.
Wide operating temperature range from -65°C up to 175°C. Strain relief enhances cable longevity and protection. Green shell color aids identification and style conformity.
This product is ideal for industrial, military, aerospace, and electronic applications requiring high-reliability circular connectors for cable mounting. The Amphenol Limited Mil Spec Circular Connector category at EnvMart features this and related connectors engineered to rigorous standards with durable materials for long service life.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 600 and 850V AC voltage.
It has a maximum current carrying capacity of 7.5A.
The housing is made of aluminium, and the contacts are gold-plated copper alloy.
It operates reliably from -65°C to 175°C.
The screw coupling mechanism ensures a secure and vibration-resistant mating connection.
This unit features a crimp termination type with rear release contacts.
The shell size for this model is 11.
The shell of this connector is green in color.
Yes, it complies with the MIL-DTL-38999 military standard.
It is designed for military, aerospace, industrial, and communications applications.
This model has 6 female contacts.
The zinc cobalt plating provides exceptional corrosion resistance and is environmentally friendly.
