Amphenol Limited MIL Spec Circular Connector TV Copper Alloy Straight 3 Way Panel Mount Female 7.5A TV07RW-09-98SN(W52)

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited MIL Spec Circular Connector TV Copper Alloy Straight 3 Way Panel Mount Female 7.5A TV07RW-09-98SN(W52)

Name: Amphenol Limited MIL Spec Circular Connector TV Copper Alloy Straight 3 Way Panel Mount Female 7.5A TV07RW-09-98SN(W52)
Brand: Amphenol Limited
SKU: 192728
Price: 62.58 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	600, 850V ac
Brand	Amphenol Limited
Colour	Green
Orientation	Straight
Current	7.5A
Model	TV07RW-09-98SN(W52)
Mount Type	Panel Mount
Housing Material	Aluminium
Contact Material	Copper Alloy
Series	TV
Termination Type	Crimp
Maximum Operating Temperature	175°C
Minimum Operating Temperature	-65°C
Contact Plating	Gold

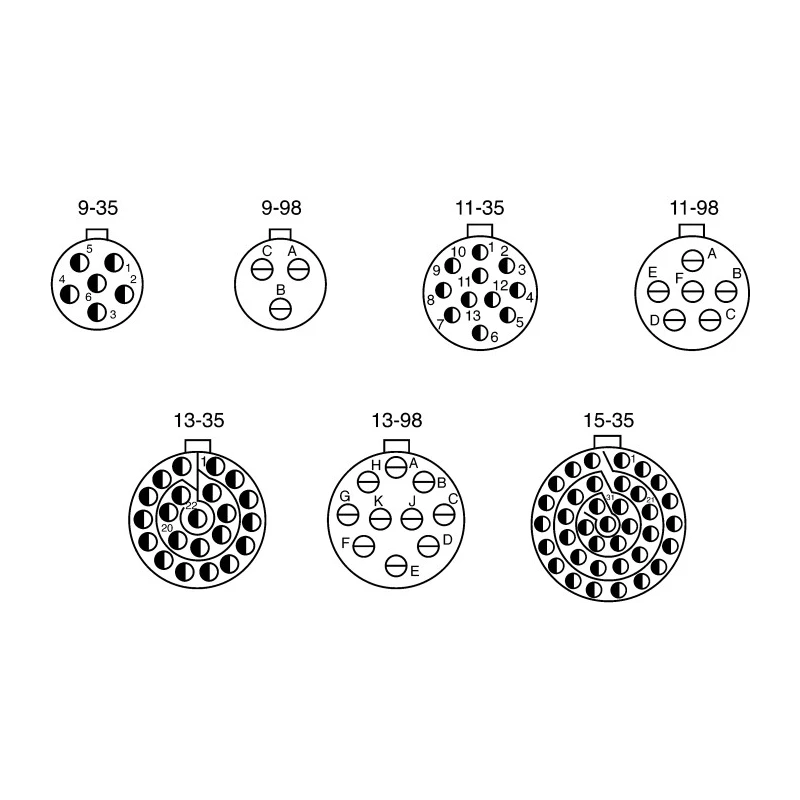

Number of Contacts	3
Contact Gender	Female
Connector Gender	Female
Shell Size	09
Military Standard	MIL-DTL-38999
Mating Type	Screw Coupling
Connector Size	Standard
Shell Plating	Zinc Cobalt

Key Features

Features a robust aluminium housing with zinc cobalt plating for enhanced durability.
Designed to meet MIL-DTL-38999 and other military standards for rugged applications.
Operates reliably across a wide temperature range from -65°C to 175°C.
Contacts are made from copper alloy with gold plating for excellent conductivity and corrosion resistance.
Utilizes crimp termination and screw coupling for secure, stable connections.
Green colour coded with strain relief for added mechanical reliability.
Ideal for industrial, military, aerospace, and harsh environment applications requiring durable, certified connectors.

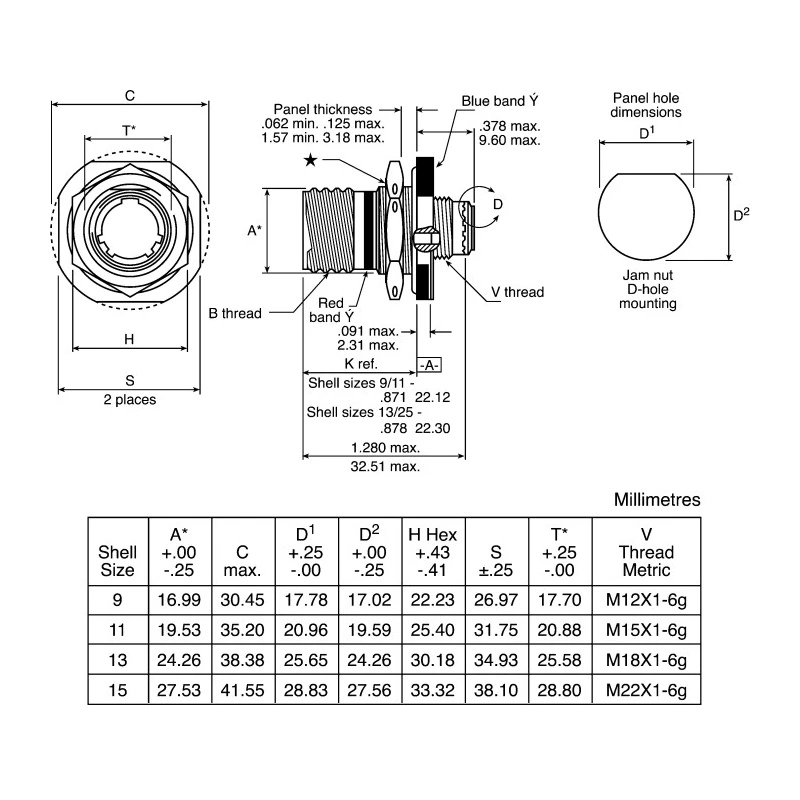

Jam nut receptacle design ensures secure panel mounting and ease of installation.

Product Description

Amphenol Limited TV07RW-09-98SN(W52) MIL Spec Circular Connector is a reliable and high-performance copper alloy straight 3 way female panel mount connector engineered for demanding industrial and military applications. Rated for a current capacity of 7.5 amperes and voltage tolerance between 600 and 850 volts alternating current, this connector ensures robust electrical performance and integrity.

The connector features a machined aluminium housing that is plated with zinc cobalt, providing a durable and corrosion-resistant finish compliant with EC Directive regulations for cadmium-free products. Its green colour coding and jam nut receptacle design allow clear identification and secure panel mounting respectively.

The internal contacts are made of copper alloy with a superior gold plating to enhance conductivity and resist corrosion. The connector utilises crimp rear release termination with screw coupling mating type, providing a secure mechanical and electrical connection suitable for harsh environments.

Designed to meet the MIL-DTL-38999 military standard, as well as BS 9520 G0003 and JN1034 specifications, this connector is built to operate efficiently in temperatures ranging from -65°C up to 175°C, making it ideal for aerospace, defense, industrial, and manufacturing sectors requiring ruggedized electrical connections.

Robust aluminium housing with zinc cobalt plating for durability. Copper alloy contacts with gold plating to ensure superior conductivity. Rated for current: 7.5A and voltage: 600-850V AC. Temperature rating from -65°C to 175°C for diverse environments.

Crimp termination and screw coupling type for secure connections. Panel mount with jam nut receptacle for ease of installation. Green colour for visual identification and strain relief for mechanical robustness. Complies with MIL-DTL-38999 and related military standards.

This Mil Spec Circular Connector is suited for applications in electronics, power systems, aerospace, military equipment, and industrial machinery where dependable, long-lasting connector performance is essential. Explore a wide range of Amphenol connectors and components in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a current capacity of 7.5 amperes and can handle voltages between 600 and 850 volts alternating current.

It operates efficiently in temperatures ranging from -65°C to 175°C, making it suitable for diverse environments.

The connector features a machined aluminium housing with zinc cobalt plating, and the contacts are made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.

It utilizes crimp rear release termination, providing a secure mechanical connection.

This model supports panel mount installation with a jam nut receptacle design for secure mounting.

It is designed to meet the MIL-DTL-38999 military standard, as well as BS 9520 G0003 and JN1034 specifications.

The connector is green color coded, which aids in visual identification.

This model is a female connector with three contacts.

It utilizes a screw coupling mating type for secure connections.

The country of origin for this connector is India.

It is ideal for applications in industrial, military, aerospace, and harsh environments requiring durable connectors.

The shell size of this connector is 09, which is a standard size for this type of connector.
