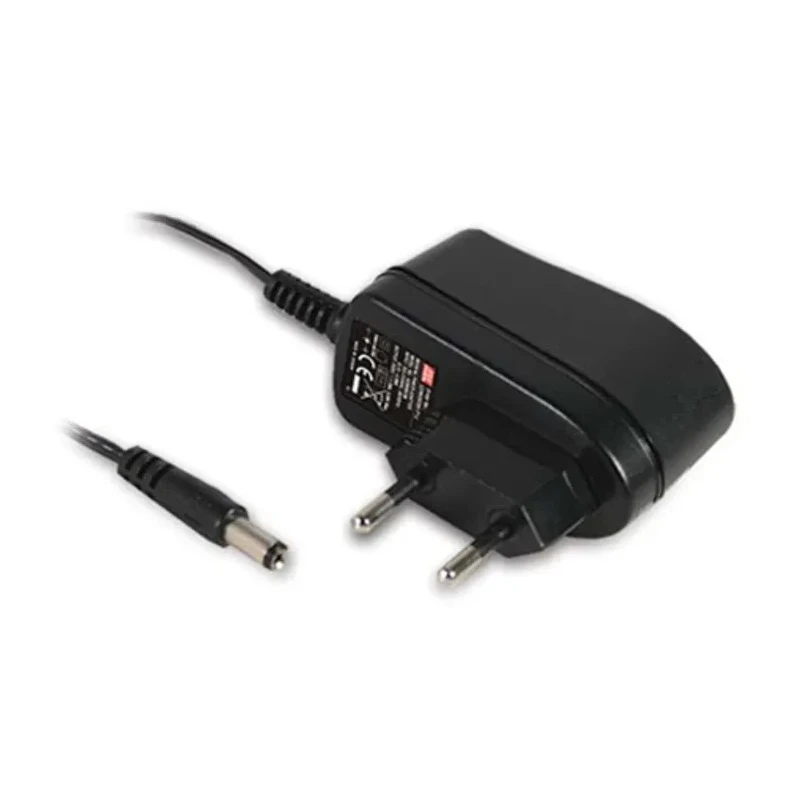

MEAN WELL AC/DC Adapter Type C 264V AC Output 400 mA 15 V DC GSM06E15-P1J

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Type C 264V AC Output 400 mA 15 V DC GSM06E15-P1J

Name: MEAN WELL AC/DC Adapter Type C 264V AC Output 400 mA 15 V DC GSM06E15-P1J
Brand: MEAN WELL
SKU: 192451



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GSM06E15-P1J
Cable Length	1.83m
Overall Length	32mm
Series	GSM06E
Overall Width	66mm
Maximum Operating Temperature	50°C
Plug Type	Type C
Maximum Input Voltage	264V ac
Maximum Output Current	400mA
Standards/Approvals	CE, IEC 60950-1, UL 60950-1
Minimum Input Voltage	100V ac
Overall Depth	42.5mm
Minimum Output Voltage	15V dc
Input Connector Type	EU Plug

Key Features

Equipped with a Type C EU plug for universal AC input ranging from 100 V to 264 V AC.
Compact design with overall dimensions 66mm width, 32mm length, and 42.5mm depth.
Designed for medical-grade applications meeting CE, IEC 60950-1, and UL 60950-1 standards.
Maximum operating temperature is 50°C ensuring reliable performance under demanding conditions.
Cable length of 1.83 meters provides flexible connection options.
Compliance with Level V energy efficiency regulation ensures power saving in operating and standby modes.
Features ultra-low leakage current adhering to 2*MOPP international medical standards.
Suitable for portable medical devices such as nebulizers, inhalers, and blood glucose monitors.

Product Description

MEAN WELL GSM06E15-P1J AC/DC Adapter Type C is a highly reliable 6 W medical-grade plug-in power supply designed for a wide range of medical and portable electronics applications. Featuring a 15 V DC fixed output with a maximum current of 400 mA, this adapter supports a wide input voltage range from 100 V AC to 264 V AC with a Type C EU plug for seamless use across various regions.

The compact dimensions of 66mm width, 32mm length, and 42.5mm depth make it easy to integrate into space-constrained environments. With a cable length of 1.83 meters, it offers flexible positioning for devices. Designed in compliance with CE, IEC 60950-1, and UL 60950-1 standards, the adapter meets stringent medical safety requirements with 2*MOPP insulation and ultra-low leakage current.

Operating reliably up to 50°C, the GSM06E15-P1J series also adheres to Level V energy efficiency standards, reducing energy consumption during active and standby states. This power supply is ideal for use in blood glucose meters, nebulizers, inhalers, and other portable medical and electronic devices requiring stable and safe DC power delivery.

Equipped with a Type C EU plug for universal AC input ranging from 100 V to 264 V AC. Compact design with overall dimensions 66mm width, 32mm length, and 42.5mm depth. Medical safety approvals including CE, IEC 60950-1, and UL 60950-1.

Maximum output current 400 mA and output voltage of 15 V DC. Maximum operating temperature of 50°C supports continuous use in demanding environments. Complies with Level V energy efficiency regulations. Ultra-low leakage current for medical device safety compliance.

Cable length of 1.83 meters for flexible connectivity.

This MEAN WELL AC/DC adapter series is widely used in industrial, medical, and laboratory applications requiring reliable, efficient, and compact power supplies. Browse EnvMart for the full range of MEAN WELL power supplies and components suitable for diverse electronic and medical device integration.
