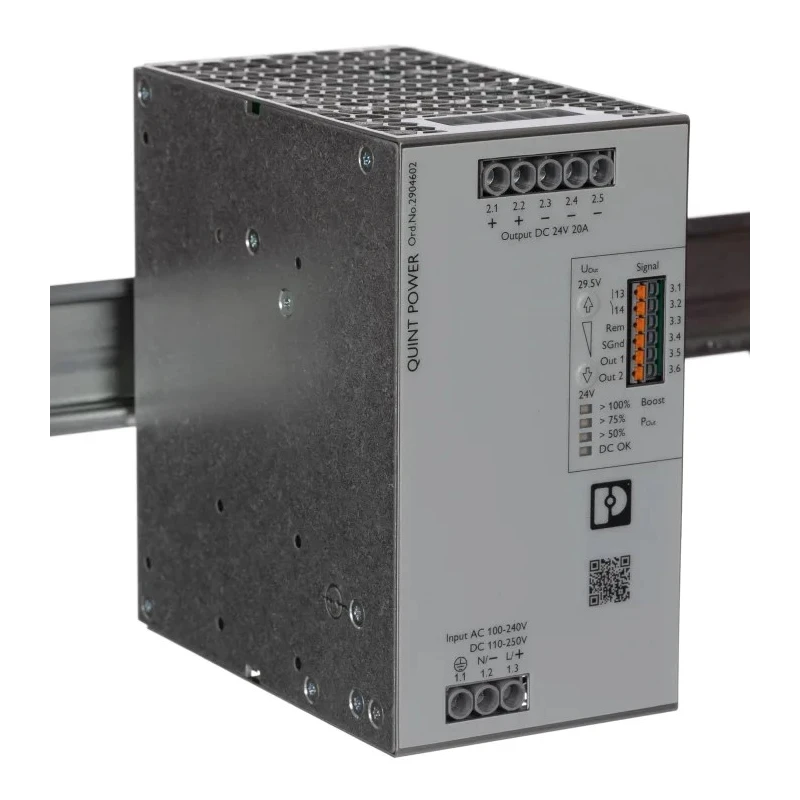

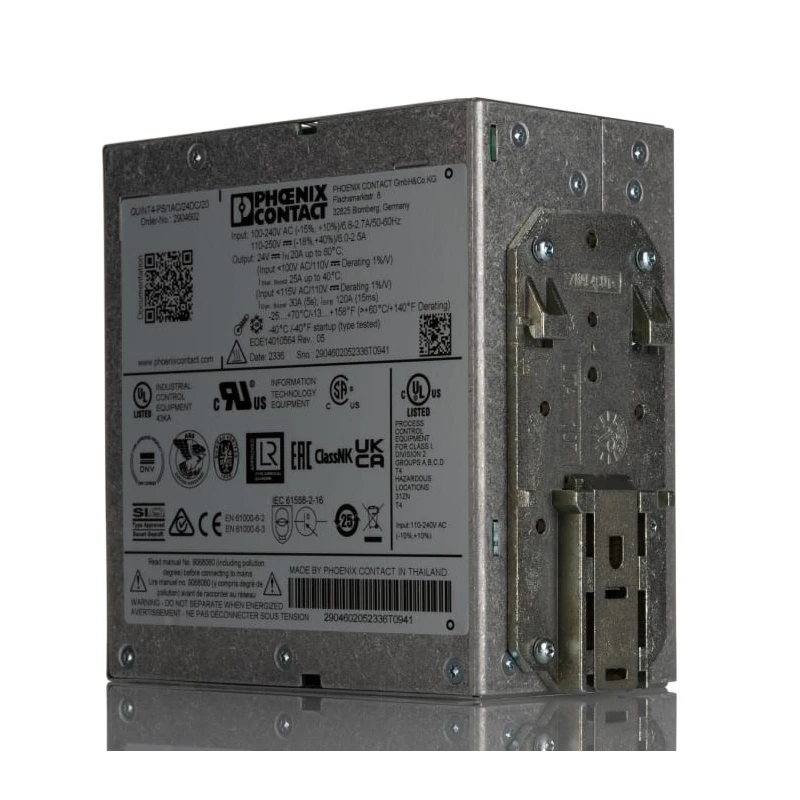

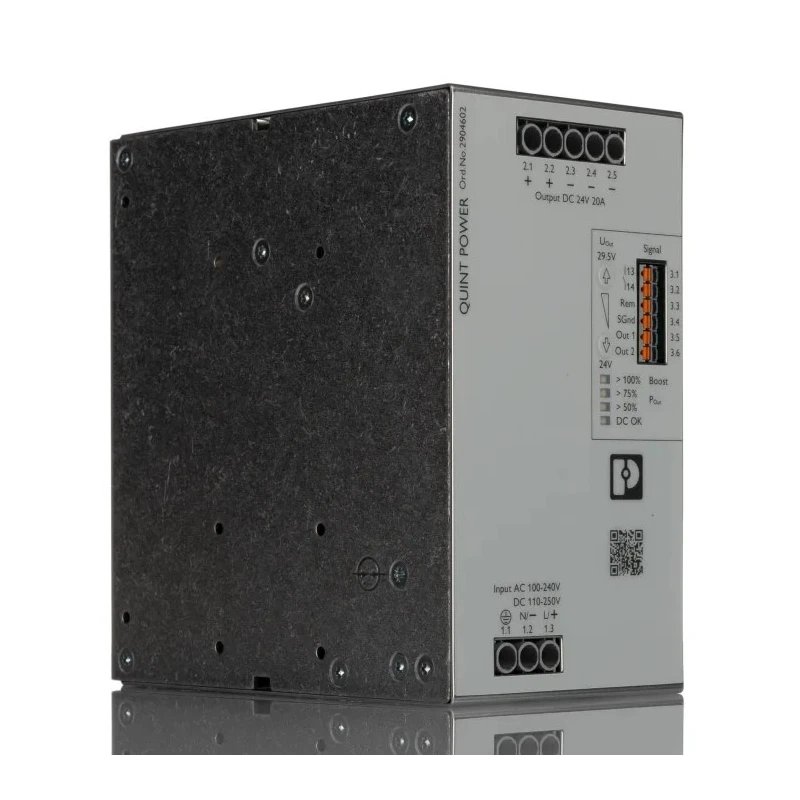

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply 480W, 29.5V DC Output, 20A, 85-250V AC/DC Input 2904602
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 480W |
| Efficiency | 94% |
| Height | 130mm |
| Model | 2904602 |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 70mm |
| Series | QUINT POWER |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 250, 240V dc |
| Electrical Phase | 1 |
| Hazardous Area Certification | Ex |
| Standards/Approvals | PRS, UL, EAC, DNV GL, cULus, cUL |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Robust switched mode design suitable for industrial DIN rail mounting.
- High efficiency of 94% ensures minimal energy loss.
- Wide operating temperature range from -25°C to 70°C for harsh environments.
- Integrated protective features including 12A fuse, varistor, and surge arrester.
- Remote DC-OK signal enables preventive function monitoring and fault indication.
- Compact dimensions of 130mm height, 70mm width, and 125mm depth.
- Supports single phase AC input and complies with multiple safety standards including UL and EAC.
- IP20 rated for protection against solid foreign objects.
Product Description
Phoenix Contact 2904602 QUINT POWER Switched Mode DIN Rail Power Supply is a robust high-performance power supply unit designed for mounting on DIN rails in industrial and hazardous area applications. Delivering 480 watts of power with a stable 29.5V DC output current of 20A, this power supply accepts a wide input voltage range from 85V AC up to 250V DC, enabling flexible connection options to single-phase AC or DC electrical systems.
Constructed with an IP20 protection rating and a compact form factor measuring 130mm in height, 70mm wide, and 125mm deep, this unit fits easily into control panels, machine building electrical enclosures, and railway control systems. It features a wide operating temperature range between -25°C and +70°C, making it suitable for harsh industrial and commercial environments.
Safety and reliability are core focuses, with built-in 12A fuse protection, varistor, and surge arrester to safeguard against electrical faults and voltage spikes. The power supply includes remote DC-OK signaling for real-time operational monitoring and fault notification to ease troubleshooting and maintenance.
Certified to recognized standards such as PRS, UL, EAC, DNV GL, cULus, and cUL, and ATEX rated for hazardous locations, this device complies with international safety and performance criteria. Efficiency exceeds 94%, reducing energy costs and thermal load. Additional features include selective fuse breaking (SFB) technology and dynamic power boost capabilities for starting high-load applications.
This power supply is ideal for industrial automation, manufacturing machinery, railway signaling, water treatment plants, and other demanding control system power needs. The lightweight design at approximately 1.3 kg provides easy handling and installation.
Robust switched mode DIN rail mount power supply delivering 480W. Wide input voltage range: 85V AC to 250V DC single-phase. Stable 29.5V DC output at 20A current with 94% efficiency. Operating temperature range from -25°C to 70°C suitable for harsh environments.
Comprehensive electrical protection including fuse, varistor, and surge arrestor. Remote DC-OK signal for preventive function monitoring and fault detection. Compact and lightweight design: 130x70x125 mm, ~1.3 kg. ATEX certified for use in explosive hazardous areas.
Compliant with PRS, UL, EAC, DNV GL, cULus, and cUL standards. Selectively trips circuit breakers to isolate faults with SFB technology. Explore further products in the Power Supplies category at EnvMart for reliable industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power supply delivers a total output of 480 watts with a stable 29.5V DC output current of 20A.
It accepts a wide input voltage range from 85V AC to 250V DC, suitable for single-phase electrical systems.
This model has an efficiency rating of 94%, ensuring minimal energy loss during operation.
The power supply has compact dimensions of 130mm in height, 70mm in width, and 125mm in depth.
It operates effectively within a temperature range of -25°C to +70°C, making it suitable for harsh environments.
It includes a built-in 12A fuse, varistor, surge arrester, and remote DC-OK signaling for fault monitoring.
Yes, it is ATEX certified for use in explosive hazardous locations and complies with multiple safety standards.
The unit weighs approximately 1.3 kg, facilitating easy handling and installation.
It is certified to standards including PRS, UL, EAC, DNV GL, cULus, and cUL, ensuring compliance with international safety criteria.
It is designed for industrial automation, manufacturing machinery, railway signaling, and water treatment plants.
This power supply operates on a single-phase electrical system.
The maximum output voltage of this power supply is 29.5V DC.
