Legrand Atlantic Series Steel Wall Box IP66 200 mm x 300 mm x 120 mm

Free Delivery in India | Lowest Global Shipping Charges

Legrand Atlantic Series Steel Wall Box IP66 200 mm x 300 mm x 120 mm

Name: Legrand Atlantic Series Steel Wall Box IP66 200 mm x 300 mm x 120 mm
Brand: Legrand
SKU: 192114
Price: 297.19 USD
Availability: InStock



Category Wall Boxes Brand Legrand Condition New

Specifications

Country of Origin	France
Brand	Legrand
Colour	Grey
Body Material	Steel
Model	IP66
IP Rating	IP66
Series	Atlantic
External Width	300mm
External Depth	120mm
External Height	200mm
Standards/Approvals	IEC, EN
Internal Mount Type	Perforated Rail
IK Rating	IK10
Protection Index	IP66 / IK10 / Nema 4
- vertical or horizontal mounting using stainless steel brackets (ref. Legrand	364 07)
Anti-corrosion, textured paint	RAL 7032
nVent HOFFMAN GL66 Series Steel Wall Box, IP66, 200 mm x 200 mm x 80mmBrand	nVent - Hoffman
nVent HOFFMAN GL66 Series Steel Wall Box, IP66, 200 mm x 300 mm x 120mmBrand	nVent HOFFMAN

Key Features

Constructed from solid galvanised steel providing excellent durability and corrosion resistance.
Texture painted with anti-corrosion RAL 7032 coating for enhanced environmental protection.
Ingress protection rating of IP66 ensures dust-tight and protection against powerful water jets.
IK10 rated for high impact resistance, suitable for harsh environments.
Equipped with punched vertical uprights allowing mounting of rails and solid plates.
Color is grey, matching industrial aesthetic requirements.
Internal mounting uses perforated rails for flexible equipment installation.
Captive screws provide secure assembly and maintenance ease.

Product Description

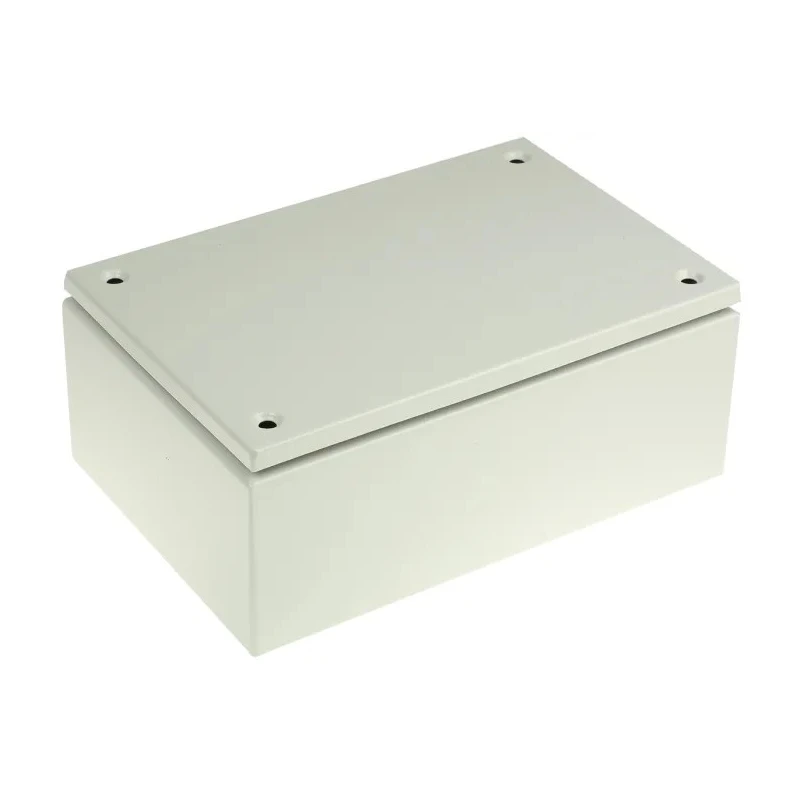

Legrand 0 356 07 Steel Wall Box IP66 200 mm x 300 mm x 120 mm is a high-quality metal enclosure designed for demanding industrial and electrical applications. The enclosure is fabricated from solid galvanised steel and finished with a textured, anti-corrosion RAL 7032 paint, ensuring strong resistance against harsh environments and corrosion.

This wall box offers an ingress protection rating of IP66, guaranteeing complete dust protection and resistance to powerful water jets, making it ideal for outdoor or industrial settings requiring reliable protection.

It also has an IK10 impact rating, offering robust physical protection from mechanical impacts. The design includes reversible mounting capabilities with both direct mounting options and vertical or horizontal installation using stainless steel brackets (ref. 364 07 by Legrand), facilitating versatile configuration to suit installation needs.

The enclosure dimensions of 200 mm height, 300 mm width, and 120 mm depth provide ample space for housing electrical components. Internally, it features punched vertical uprights and perforated rails that support flexible mounting of various electrical fixtures or panels. The enclosure is secured with captive screws to prevent loss during installation or maintenance.

Color coded in industrial grey, it meets IEC and EN standards guaranteeing compliance with international quality and safety norms. Manufactured in France, this Atlantic series wall box is suited for electrical, automation, and industrial control system applications.

Constructed from galvanised steel with anti-corrosion RAL 7032 paint. IP66 ingress protection and IK10 impact rating. Multiple mounting configurations with stainless steel brackets. Punched uprights and perforated rails for flexible equipment installation.

Captive screws for secure assembly. Complies with IEC and EN standards. Dimensions: 200 mm (H) x 300 mm (W) x 120 mm (D). Suitable for industrial and commercial electrical enclosures. Explore more products in the Wall Boxes category and other electrical enclosures at EnvMart for your industrial and commercial needs.
