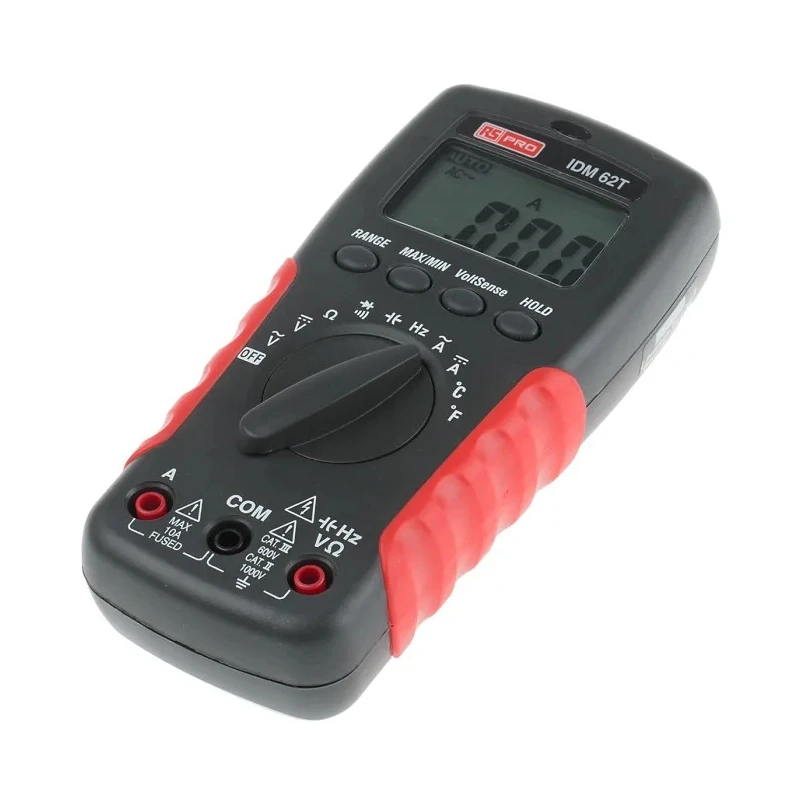

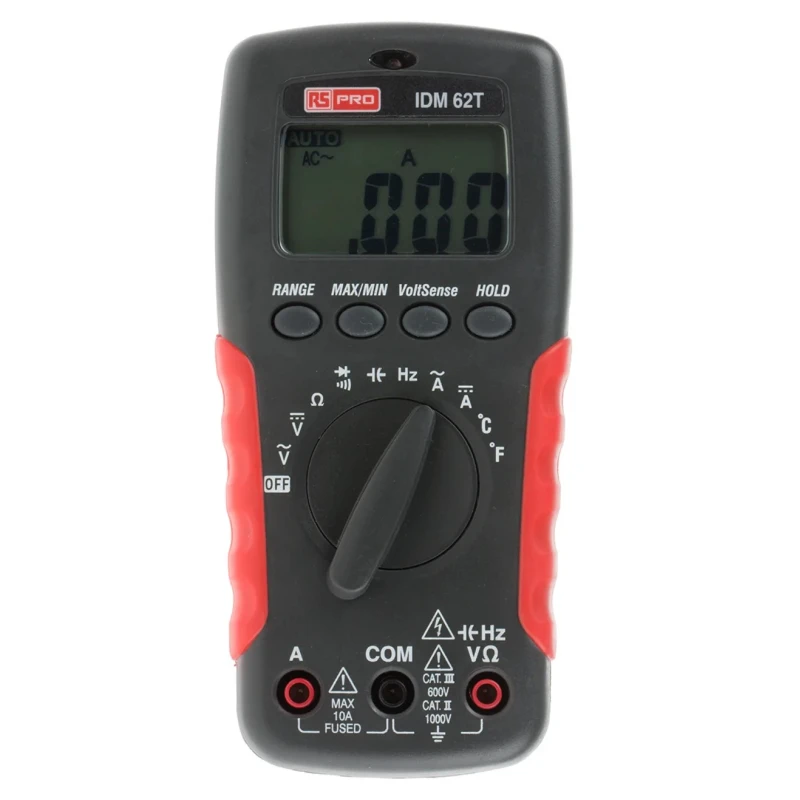

RS PRO Handheld Multimeter IDM62T 1kV DC Voltage 750V AC Voltage 10A AC/DC Current 20MHz Frequency Counter Taiwan IDM62T

RS PRO IDM62T handheld digital multimeter offers an extended range of functions suitable for industrial, electrical, laboratory, and HVAC applications. Built with robust safety standards (EN61010-1, CAT III 600 V, CAT II 1000 V), this device enables accurate measurements of DC and AC voltage up to 1000 V dc and 750 V ac respectively, making it ideal for demanding test conditions.

This multimeter supports AC/DC current measurements up to 10 Amps and includes an integral non-contact AC voltage detector, which provides audio-visual alerts for high-voltage presence, enhancing workplace safety. It features a 2000 counts LCD display delivering clear measurement readouts with 11 functions and 32 ranges, including frequency measurement up to 20 MHz and capacitance up to 2 mF.

The device incorporates a type K temperature sensor capable of measuring -20°C to 800°C, extending its versatility to thermocouple applications. Resistance up to 20 MΩ and diode voltage testing capabilities ensure multiple test requirements are met with one device. Full auto-ranging with manual override and MIN/MAX hold functionalities provide additional usability in complex testing environments.

Ergonomically designed with a slim profile and soft rubber side grips, the IDM62T is compact and fits comfortably in hand. It comes with a protective holster featuring a built-in stand and convenient test lead storage, optimizing field use and storage. Batteries are easily replaceable thanks to a user-friendly battery door.

Originating from Taiwan, this multimeter is engineered to withstand operating temperatures from 0°C to 50°C and conforms to international safety categories CAT II and CAT III, supporting up to 1kV safety category voltage. This ensures reliability and protection in industrial circuits and equipment testing.

The multimeter provides up to 1kV DC and 750V AC voltage measurement ranges. Maximum current measurement is 10A for both AC and DC. Includes a 20MHz frequency counter and a -20°C to 800°C type K temperature input. Non-contact voltage detection with visual and audible alerts enhances user safety.

Features full auto-ranging with manual override and MIN/MAX display hold functionality. Compact design with soft rubber side grips for ergonomic handling. Integral protective holster includes a built-in stand, nail hook, and test lead storage.

Powered by IEC LR03 AAA 1.5 V batteries with approximately 250 hours battery life. Safety rated to EN61010-1 standard, CAT III 600 V, CAT II 1000 V for industrial use.

This RS PRO IDM62T handheld multimeter is suited for use across electrical testing, maintenance, laboratory measurements, HVAC systems troubleshooting, and industrial equipment monitoring. Browse the EnvMart catalog for more advanced handheld and bench Multimeters from reputable industrial brands.
