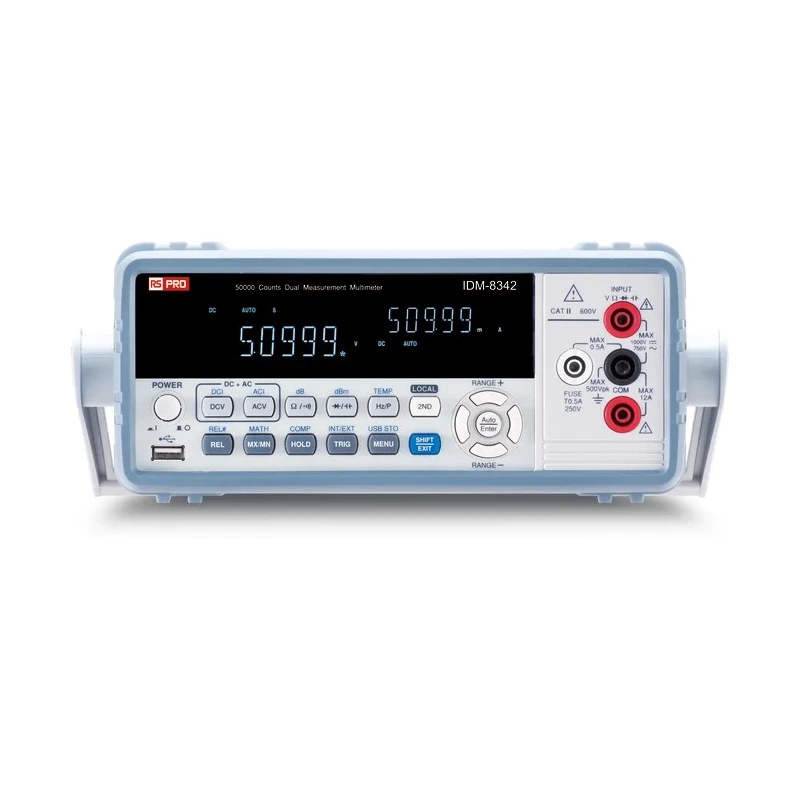

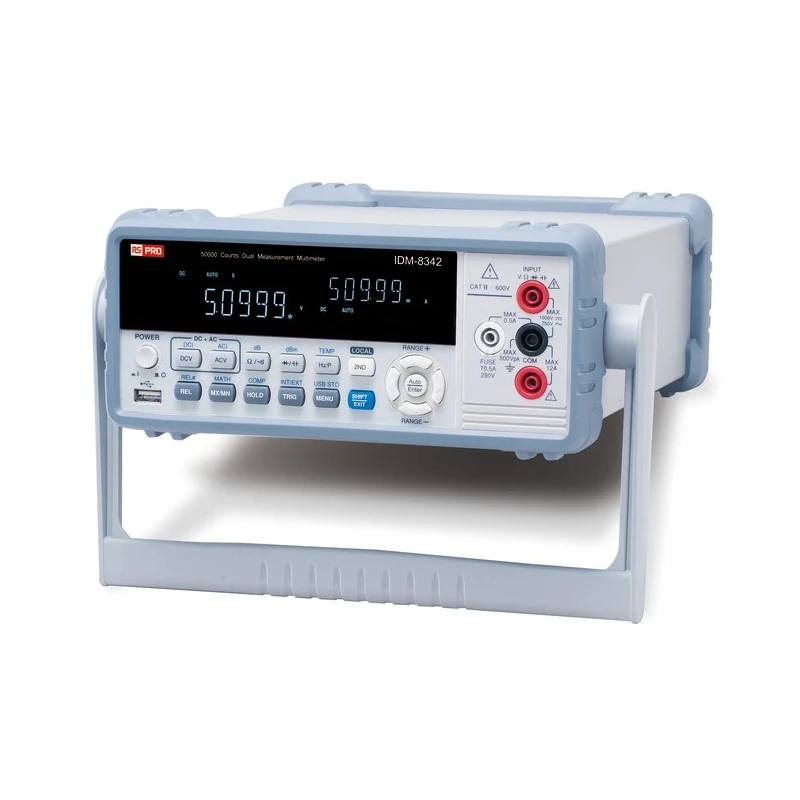

RS PRO Bench Multimeter True RMS, 10 A AC, 10 A DC, 750 V AC IDM8342
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Height | 107mm |
| Length | 265mm |
| Model | IDM8342 |
| Gross Weight | 2.9kg |
| Width | 302mm |
| Series | RS PRO |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±0.05% + 4 Digits |
| Interfaces | Standard USB device for communicating with a PC |
| Resistance Measurement Accuracy | ±0.1 % rdg + 3 Digits |
| AC Current Accuracy | ±0.5 % rdg + 20 Digits |
| Resistance Resolution | 10mΩ |
| AC Current Resolution | 10nA ac |
| DC Current Resolution | 10nA dc |
| Multimeter Type | Bench |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature |
| Maximum Resistance Measurement | 50mΩ |
| Maximum AC Current Measurement | 10A ac |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum DC Current Measurement | 10A dc |
| Maximum AC Voltage Measurement | 750V ac |
| Maximum Frequency | 1MHz |
| Safety Category Level | CAT II, CAT III, CAT IV |
| Safety Category Voltage | 600V |
| RS PRO Digital Digital Multimeter True RMS, 10 kA, 10 kA, 750 VBrand | RS PRO |
Key Features
- Provides True RMS measurement ensuring accurate AC and DC current readings.
- Maximum AC and DC current measurement capacity of 10 A.
- Maximum AC voltage measurement capacity is 750 V.
- Features an LCD display for clear readouts and monitoring.
- Measures multiple parameters including capacitance, frequency, resistance, temperature, and diode test.
- Includes safety ratings of CAT II, CAT III, and CAT IV up to 600 V.
- Operates with mains power supply and suitable for industrial and laboratory environments.
- Wide temperature operating range from 0°C to 50°C for versatile usage.
Product Description
RS PRO IDM8342 is a bench multimeter designed for industrial and laboratory applications requiring precision electrical measurements. This True RMS meter supports current measurement up to 10 A in both AC and DC modes, and voltage measurement up to 750 V AC, providing reliable performance in demanding test environments. Its LCD display ensures clear visibility of measurement data, supporting various electrical parameters including capacitance, frequency, resistance, temperature, diode tests, and continuity.
The multimeter's safety features comply with CAT II, CAT III, and CAT IV standards at 600 V, making it ideal for safe operation in various industrial electrical testing and maintenance roles. Measuring 265 mm in length, 302 mm in width, and 107 mm in height, it fits benchtop use while maintaining portability with a weight of 2.9 kg.
This model operates on mains power and is suited for production testing, quality inspection, repair and service, and educational laboratories. It features advanced functions such as manual and auto-ranging, max/min record, and USB interface for PC communication.
True RMS technology for precise AC/DC current measurements. 10 A maximum current measurement for both AC and DC. 750 V maximum AC voltage measurement capability. LCD display for accurate and clear data visualization. Multiple measurement options including capacitance, frequency, and temperature.
CAT II, III, and IV safety ratings ensure reliable usage under high voltage environments. Industrial-grade robust design with compact benchtop dimensions. Suitable for a wide range of industrial and laboratory electrical measurement needs.
USB connectivity for data logging and analysis with PC. Wide operating temperature range from 0°C to 50°C accommodates varied environments.
RS PRO IDM8342 bench multimeter is part of the RS PRO IDM-8300 series digital Multimeters offering high count accuracy and multiple functionalities, supporting professional demands for precise electrical test and measurement. Explore the RS PRO range for reliable industrial and laboratory instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current measurement capacity for both AC and DC is 10 A.
It can measure AC voltage up to 750 V.
This multimeter measures AC current, AC voltage, capacitance, continuity, DC current, DC voltage, diode test, frequency, resistance, and temperature.
The accuracy for DC current measurements is ±0.05% + 4 digits.
It has safety ratings of CAT II, CAT III, and CAT IV up to 600 V.
The operating temperature range is from 0°C to 50°C.
The resolution for both AC and DC current measurements is 10 nA.
The resistance measurement accuracy is ±0.1% rdg + 3 digits.
It measures 265 mm in length, 302 mm in width, and 107 mm in height, with a weight of 2.9 kg.
Yes, it features a standard USB device for communicating with a PC.
The maximum frequency measurement capability is 1 MHz.
It has an LCD display for clear readouts and monitoring.
