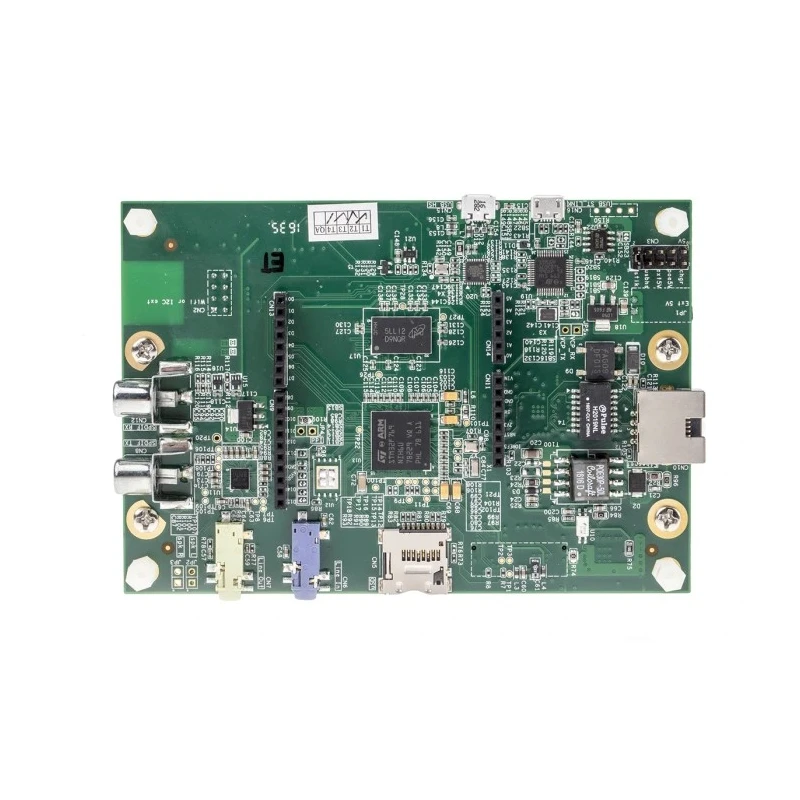

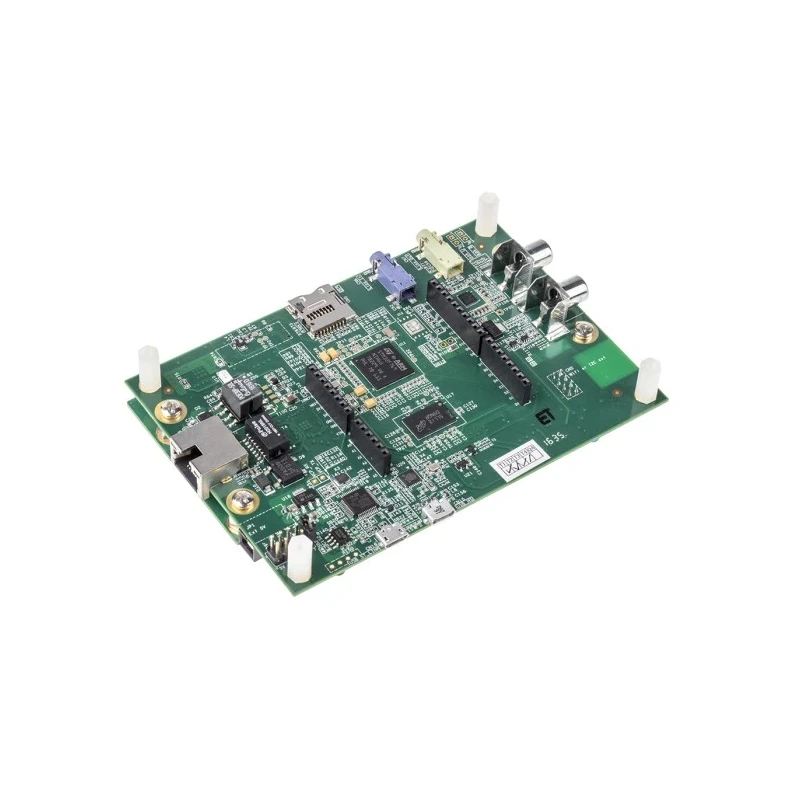

STMicroelectronics Discovery MCU Development Kit STM32F769I-DISCO with ARM Cortex M7 216MHz, 2MB Flash, 532KB RAM

STMicroelectronics STM32F769I-DISCO Discovery MCU Development Kit features a 216MHz ARM Cortex-M7 core STM32F769NIH6 microcontroller with 2MB Flash memory and 532KB RAM, making it ideal for embedded system development and rapid prototyping. This specialized MCU development kit offers extensive expansion capabilities via embedded Arduino Uno V3 shield connectors, allowing users flexibility to integrate various add-on boards for diverse applications.

The kit supplies comprehensive on-board resources, including 512Mbit quad-SPI NOR Flash memory and 128Mbit SDRAM to support high-performance computing. Audio applications are supported through the WM8994 stereo audio codec, multiple MEMS microphones, S/PDIF input/output, and 3.5mm stereo audio jacks. High-speed connectivity is provided via USB OTG HS, Ethernet compliant with IEEE-802.3-2002, and microSD card slot for storage expansion.

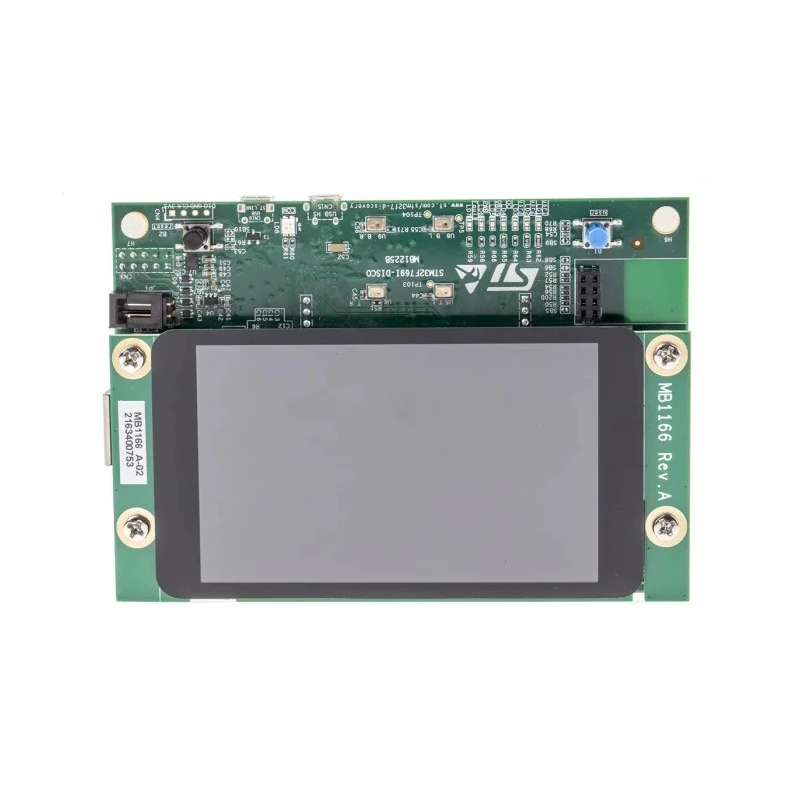

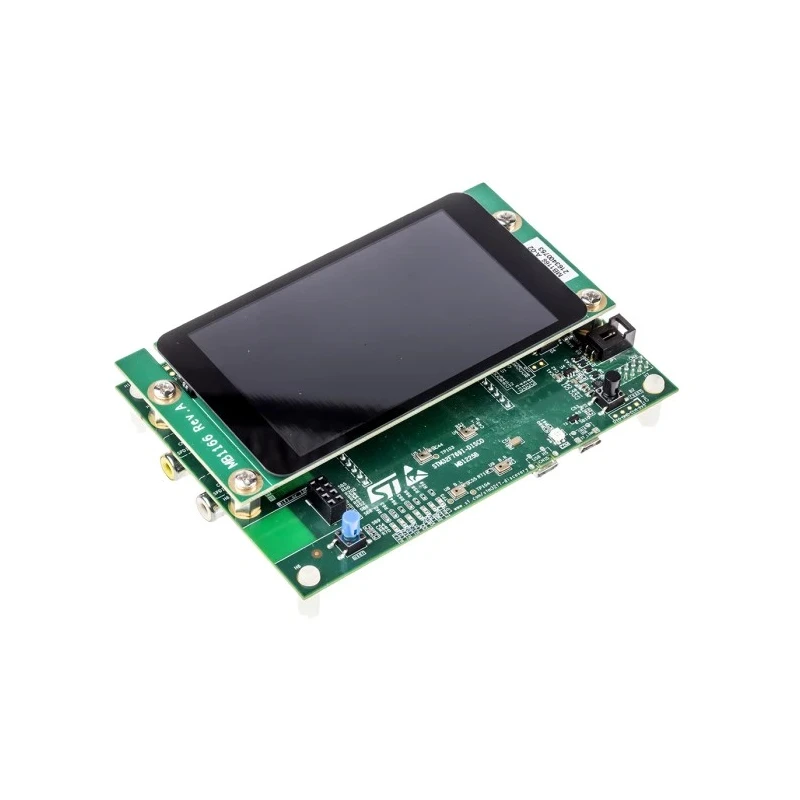

Display interfaces feature a MIPI DSI connector along with an integrated DSI to HDMI adapter board, enabling HDMI output to compatible displays. A suite of user-friendly buttons, including reset and user programmable pushbuttons, are accessible on the board for interactive control.

Multiple power supply options include ST LINK/V2-1, USB connector, Power over Ethernet compliant to IEEE 802.3af, Arduino-compatible, and external power sources, enhancing deployment versatility.

The development environment is backed by the STM32CubeF7 software package with free and open-source firmware examples supporting various integrated development environments. Native ST-LINK/V2-1 debugger facilitates mass storage, debugging, and virtual COM port features via USB connectivity.

This development kit is well-suited for industrial, communication, audio, video, and graphical applications requiring robust processing power, high-speed interfacing, and rich peripheral sets. It supports embedded system engineers and developers in evaluating and deploying the STM32F7 series effectively.

Features STM32F769NIH6 Cortex-M7 microcontroller with 216MHz speed. Includes high-capacity flash and RAM memories for complex applications. On-board audio codec and multi-microphone inputs support audio processing. Offers Ethernet and USB OTG for high-speed connectivity.

Equipped with HDMI output via DSI to HDMI adapter for display integration. Supports Arduino Uno V3 connectivity for expansion flexibility. Comes with comprehensive free firmware under STM32CubeF7 package.

For engineers and developers seeking high-performance MCU development tools, this STMicroelectronics Discovery kit delivers an integrated, expandable platform ideal for prototype through production workflows. Explore more STM32F7 series products and development kits at EnvMart.
