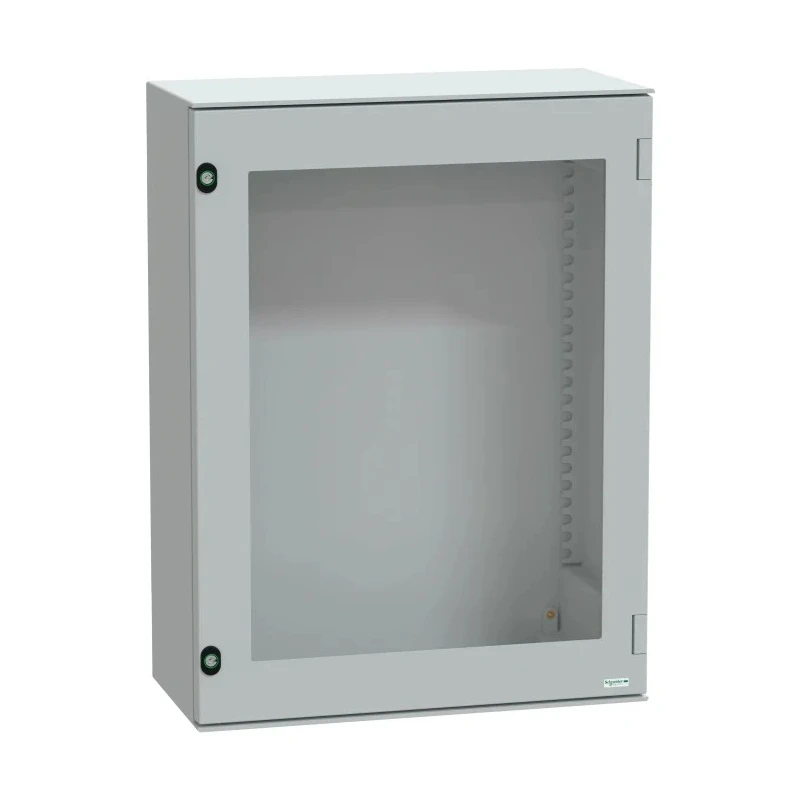

Schneider Electric PanelSeT Series Polyester Wall Box, IP66 Transparent Door, 847 mm x 636 mm x 300 mm NSYPLM86TG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Polyester |
| Model | NSYPLM86TG |
| IP Rating | IP66 |
| Series | PanelSeT |
| External Width | 636mm |
| External Depth | 300mm |
| External Height | 847mm |
| Standards/Approvals | UL |
| Door Lock Type | Double Bar |
| Internal Mount Type | Panel |
| IK Rating | IK08 |
| Fibox CAB P Series Polyester Wall Box, IP66, 835 mm x 635 mm x 300 mmBrand | Fibox |
Key Features
- The enclosure measures 847 mm height, 636 mm width, and 300 mm depth for spacious interiors.
- Constructed with flame-resistant polyester reinforced with fibreglass for durability.
- Equipped with a tempered glass transparent door allowing visibility of equipment inside.
- Features a double bar lock mechanism to secure instrumentation from unauthorized access.
- IP66 rating ensures complete dust tightness and protection from powerful water jets, suitable for outdoor conditions.
- Designed for panel internal mounting with no mounting plate included, enabling flexible installation.
- Robust against mechanical impact with IK08 rating for shock resistance.
- Operational temperature range from -40 °C to 80 °C supports diverse environments.
Product Description
Schneider Electric NSYPLM86TG Wall Box from the PanelSeT Series is a high-quality polyester enclosure designed for protecting instrumentation and electrical equipment in challenging environments. It offers an external height of 847 mm, width of 636 mm, and depth of 300 mm, making it ideal for various industrial and outdoor applications requiring robust housing solutions.
This enclosure is manufactured from flame-resistant polyester reinforced with fibreglass, delivering enhanced mechanical strength, chemical resistance, and durability. The transparent door is made of tempered glass, providing excellent visibility of the internal components while maintaining structural integrity and protection.
The enclosure features a secure double bar lock mechanism, ensuring controlled access to housed equipment. Its IP66 rating guarantees it is dust-tight and protected against powerful water jets, making it well suited for outdoor use where exposure to dust and water is a concern. Additionally, the IK08 rating offers resistance to mechanical impacts.
This wall box supports panel type internal mounting without the need for a mounting plate, providing flexible installation options based on user requirements. It operates reliably in a temperature range from -40 °C to 80 °C, suitable for diverse industrial, automation, and electronics applications.
The enclosure body is flame retardant and reinforced, enhancing safety and durability. The transparent tempered glass door allows visual inspection without opening. Double bar locking provides enhanced security against unauthorized access.
IP66 rating ensures high resistance to dust ingress and water jets outdoors. IK08 impact rating protects the enclosure from mechanical shock. UL certification confirms compliance with industry safety standards. Designed for wall mounting in industrial environments and outdoor installations.
Ideal for housing instrumentation in automation and electrical panels.
Schneider Electric’s PanelSeT Series offers reliable, durable enclosures suitable for industrial, manufacturing, construction, and outdoor electrical installation needs. Browse our extensive selection of electrical enclosures and Wall Boxes at EnvMart for compatible accessories and mounting solutions.
