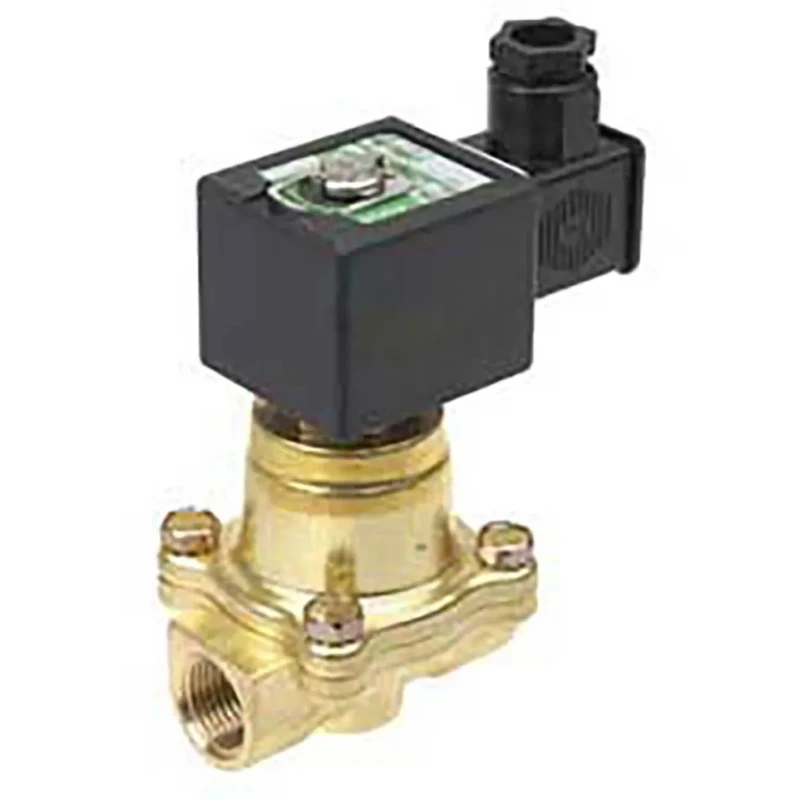

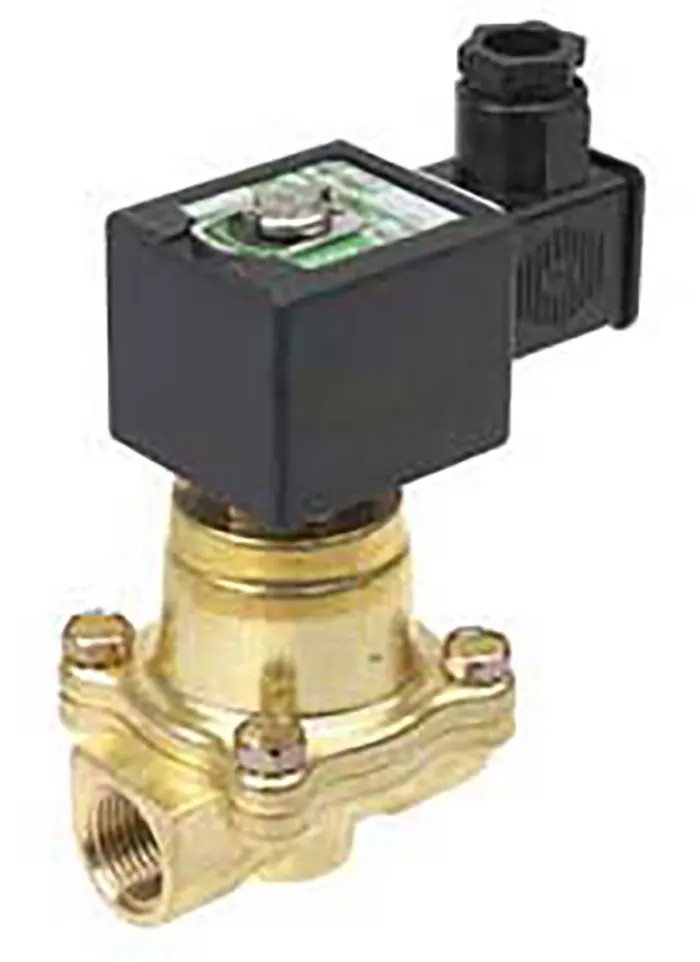

EMERSON ? ASCO Emerson ASCO Solenoid Valve 2 Port NC 110V AC Brass, 9 Bar Max, Series 222 SCE222E003.110/50

Free Delivery in India | Lowest Global Shipping Charges

EMERSON ? ASCO Emerson ASCO Solenoid Valve 2 Port NC 110V AC Brass, 9 Bar Max, Series 222 SCE222E003.110/50

Name: EMERSON ? ASCO Emerson ASCO Solenoid Valve 2 Port NC 110V AC Brass, 9 Bar Max, Series 222 SCE222E003.110/50
Brand: EMERSON ? ASCO
SKU: 86173
Price: 1220.98 USD
Availability: InStock



Category Solenoid Valves Brand EMERSON ? ASCO Condition New

Specifications

Country of Origin	United Kingdom
Brand	EMERSON ? ASCO
Body Material	Brass
Maximum Operating Pressure	9 bar
Outlet Connection Type	Rp (ISO 7/1)
Model	SCE222E003.110/50
Series	222
Number Of Ports	2
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-20°C
Orifice Diameter	19mm
Supply Voltage	110V ac
Standards/Approvals	IEC 335, EC Directives, CSA, UL
Default Valve Position	NC
Inlet Thread Standard	Rp (ISO 7/1)
Flow Factor Kv	5.1m³/h
Maximum Closing Time	100ms

Key Features

Two-port solenoid valve suitable for steam and hot water applications.
Normally closed (NC) configuration ensures safety by default.
Operates reliably at 110V AC with a brass body for durability.
Maximum operating pressure of 9 bar supports diverse industrial uses.
Features a 19 mm orifice and servo assist design for efficient flow control.
Offers compact DIN plug connection and can be mounted in any position.
Supports an operating temperature range from -20°C to 40°C.
Compliant with IEC 335, EC Directives, CSA, and UL standards.

Product Description

The Emerson ASCO SCE222E003.110/50 Solenoid Valve is a robust, pilot-operated valve engineered for demanding fluid control systems in industrial environments. This valve features a two-port, normally closed configuration, making it especially suitable for systems where fail-safe operation is essential. It operates with a 110V AC supply and is built with a durable brass body, lending it high resistance to wear and corrosion in applications handling hot water or steam.

This solenoid valve is designed for versatility in installation, equipped with a compact DIN plug and standard Rp (ISO 7/1) connection threads for optimized pipeline integration. The orifice diameter of 19 mm supports a substantial flow capacity, measured by a flow factor Kv of 5.1 m³/h, suitable for various industrial fluid and gas systems.

The Emerson ASCO SCE222E003.110/50 is engineered for continuous operation under a maximum pressure of 9 bar. Its servo-assisted design enhances performance, ensuring responsive opening and closing with a maximum actuation time of 100 ms. The valve's compact form minimizes heat loss and is built to function in a broad range of environments, withstanding temperatures from -20°C to 40°C.

Full compliance with international standards, including IEC 335, applicable EC Directives, CSA, and UL, supports deployment in regulated industries. The valve is ideally used in HVAC systems, process automation frameworks, steam distribution, and water treatment plants. Its normally closed mode adds operational safety by default, and the valve can be mounted in any orientation for easy integration into new or existing industrial assemblies.

The brass body construction and carefully rated pressure and temperature limits make this model suitable for critical process applications where reliability and regulatory compliance are necessary. Whether in manufacturing, process industry, or facility maintenance, the Emerson ASCO SCE222E003.110/50 delivers dependable control of steam, hot water, and compatible fluids.

For a complete range of automation, industrial valves, and fluid control solutions, browse Emerson ASCO Solenoid Valves in the EnvMart industrial supplies catalog.
