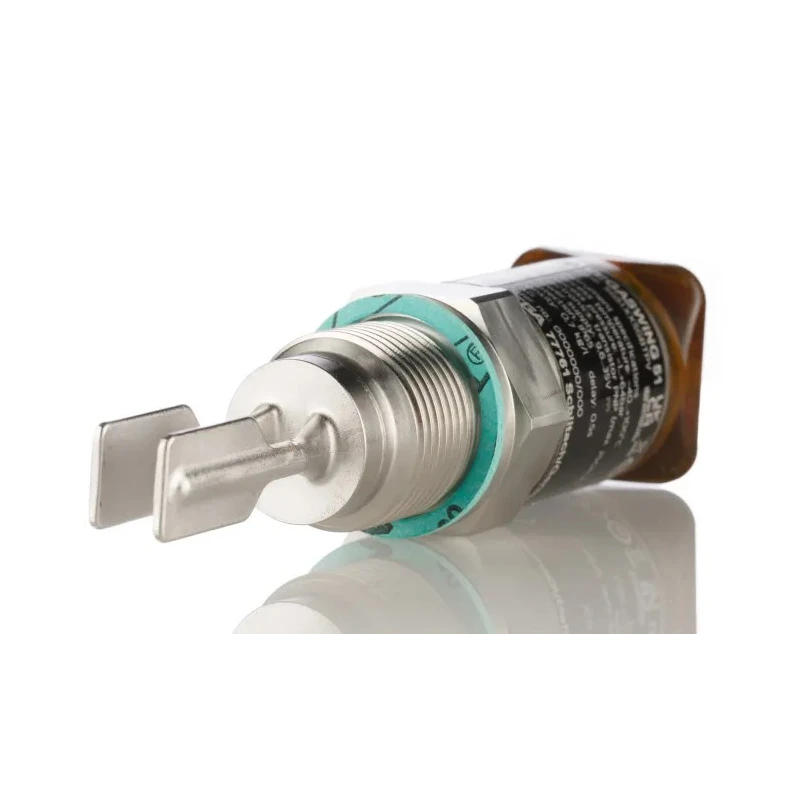

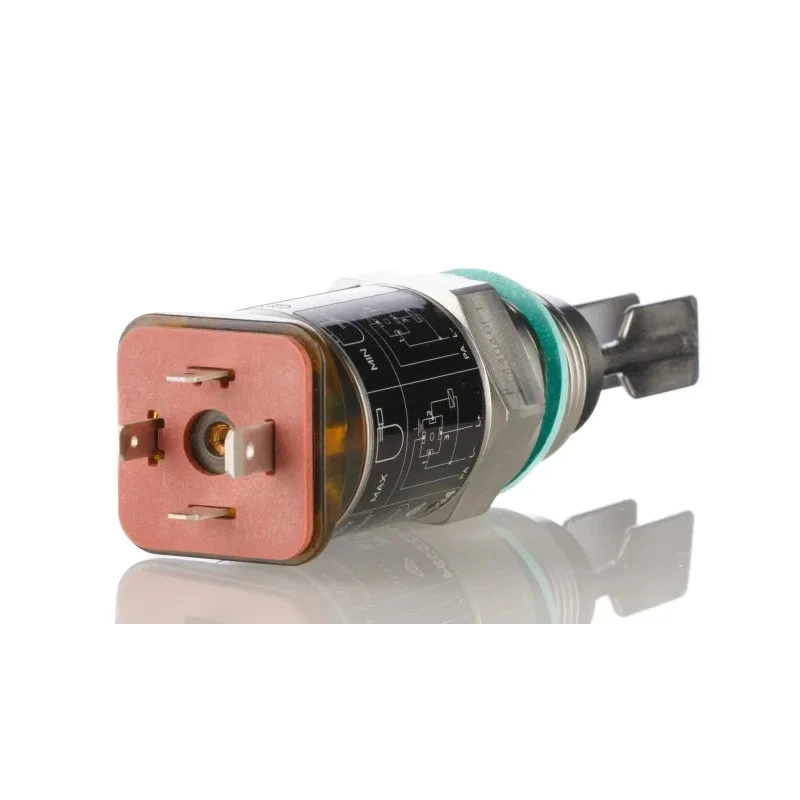

Vega VEGASWING 51 Series Tuning Fork Horizontal Level Switch Stainless Steel Housing SG51.XXSGBTPV

Vega SG51.XXSGBTPV VEGASWING 51 Series Tuning Fork Level Switch Horizontal is engineered with a stainless steel housing for robust industrial use. This tuning fork level switch features precise limit detection with millimeter accuracy, ideal as an empty or full detector, overfill protection, dry running protection, and pump protection in various vessels and pipeline applications.

The device supports horizontal mounting and incorporates an IO-Link interface type. Its operating temperature range spans from -40°C to 100°C, making it suitable for harsh environments. The maximum DC voltage rating is 35 V with a current tolerance of 250 mA and a pressure rating up to 64 bar, supporting process fittings such as G½, ½ NPT, and hygienic fittings.

Designed to be product-density independent, the switch reliably detects level changes regardless of the medium's conductivity or viscosity up to 10 Pa·s. The stainless steel housing ensures high corrosion resistance, and the device includes an external LED to indicate switch status, facilitating easy maintenance without interruption.

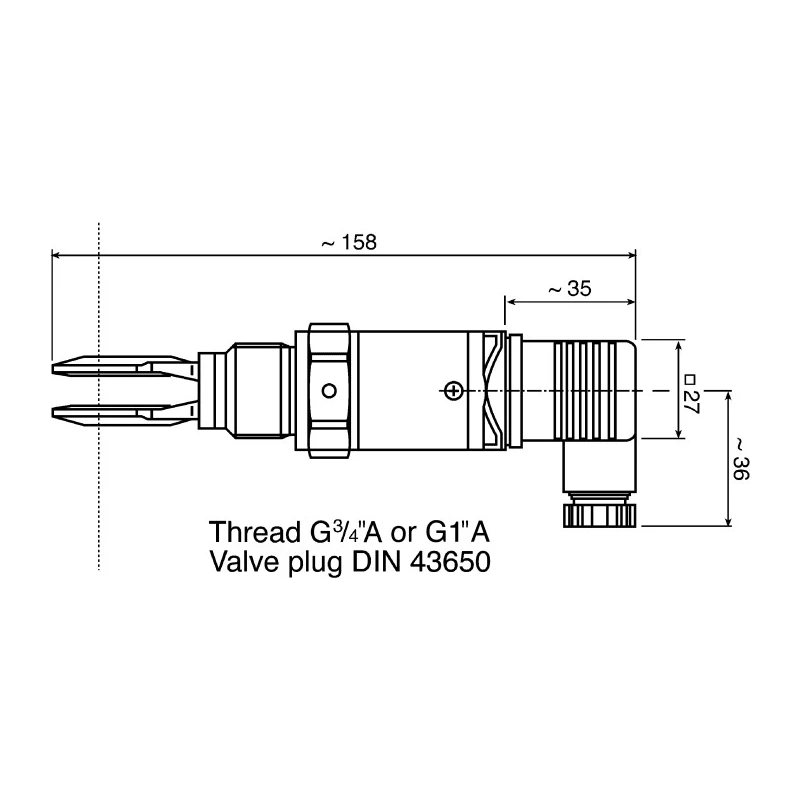

This maintenance-free level switch is compact with a 40 mm fork and housing design, offering reliability and safety for fluid level measurement in industrial automation, construction, HVAC systems, water treatment plants, and manufacturing industries.

Equipped with a PNP transistor output and is self-monitoring. Unaffected by product density, conductivity, or viscosity, ensuring consistent performance. Power consumption peaks at 0.5 W with a switching voltage over 34 V DC.

Compact and robust design optimizes installation space and durability. Ideal for detecting point levels in liquids for bilge, leakage monitoring, and oil tanks.

The SG51.XXSGBTPV series complies with standards including WHG, FDA, and EHEDG, affirming its suitability for hygienic and food industry environments. This Level Switch is made in Germany, assuring high-quality manufacturing compliance.
