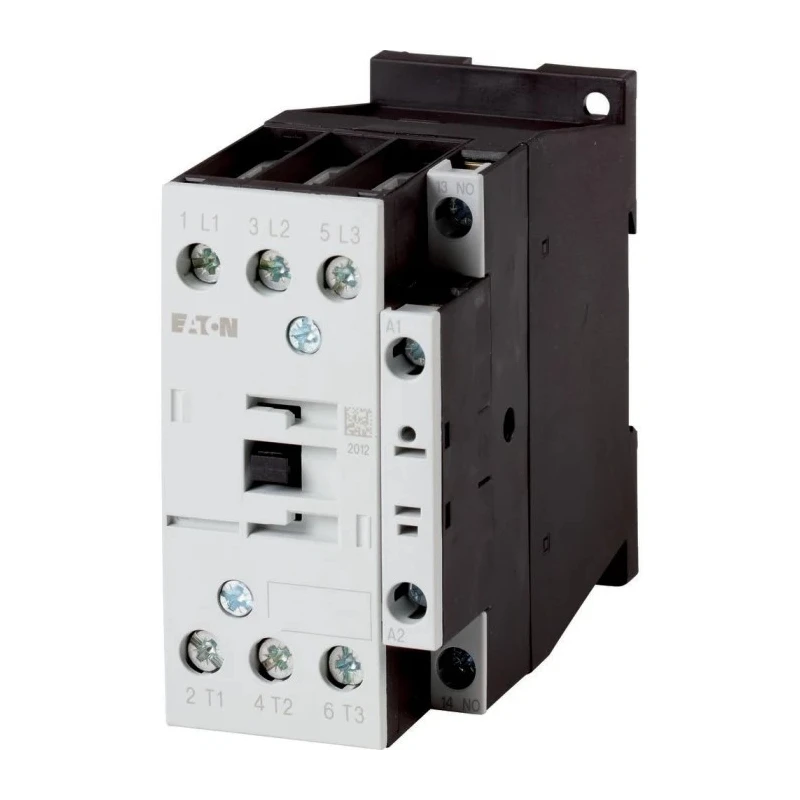

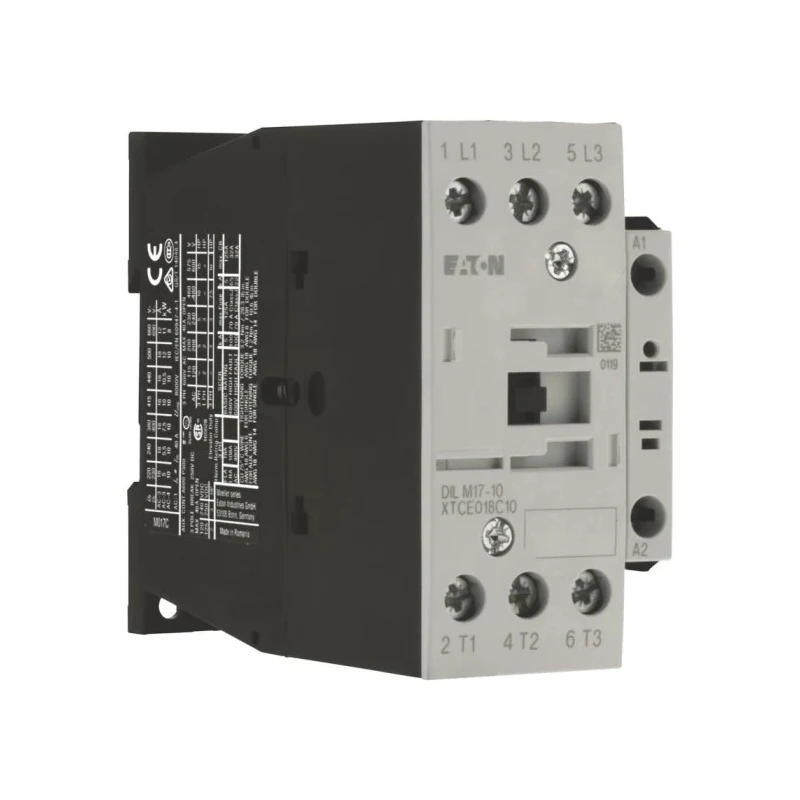

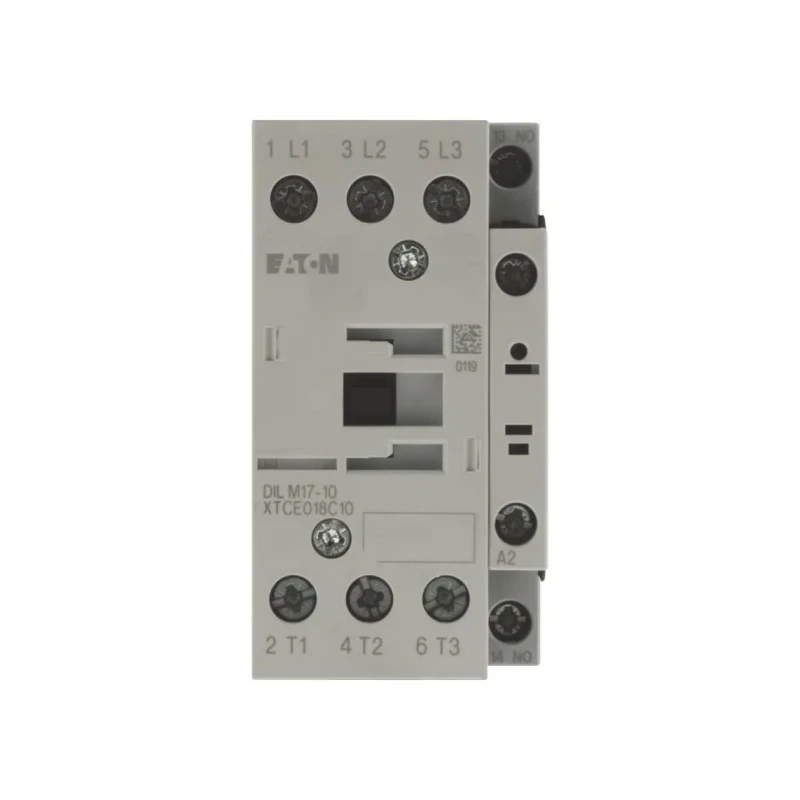

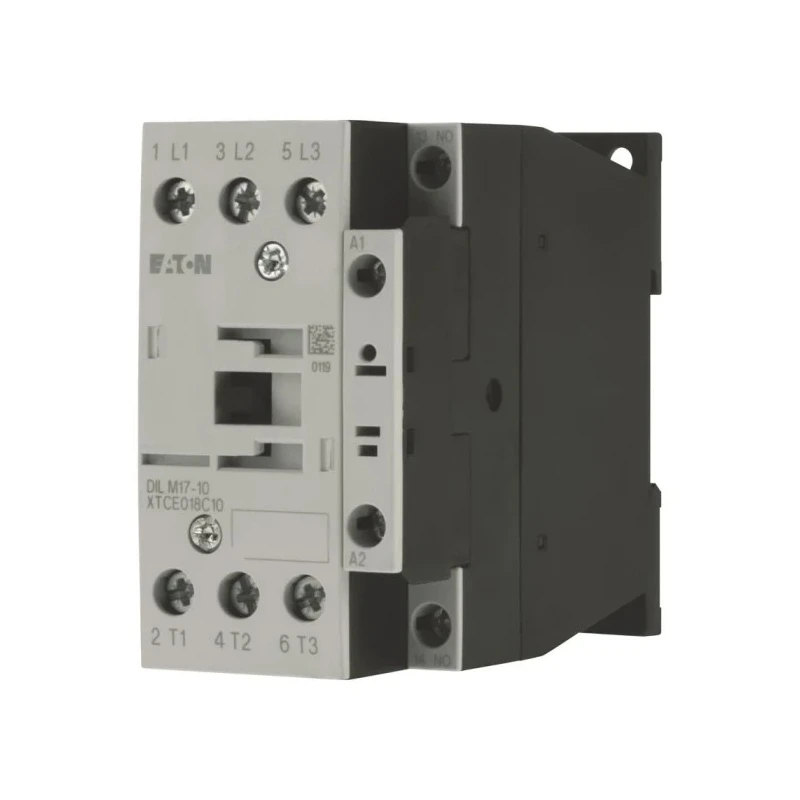

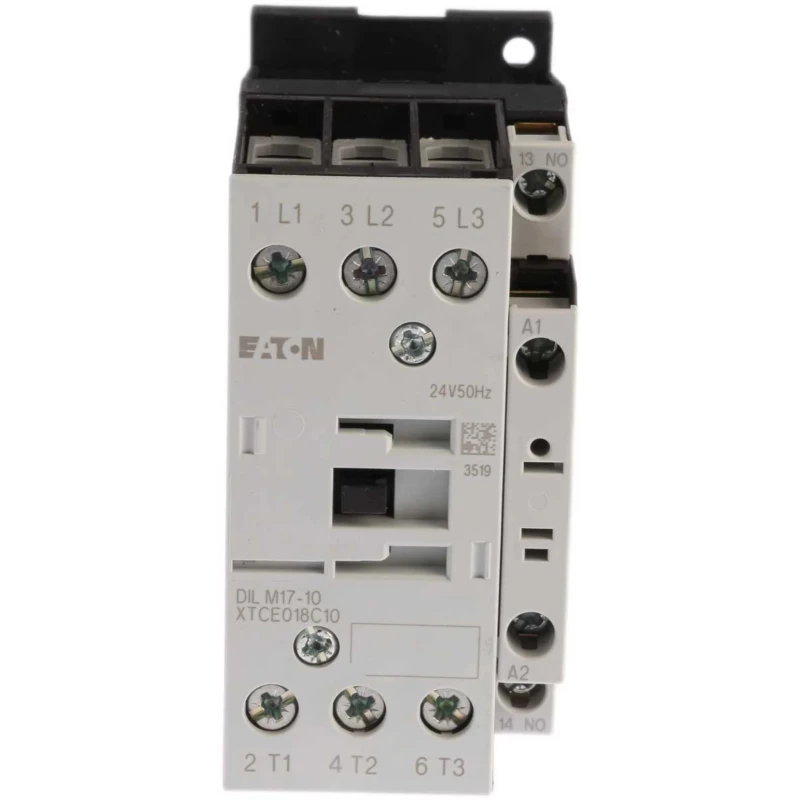

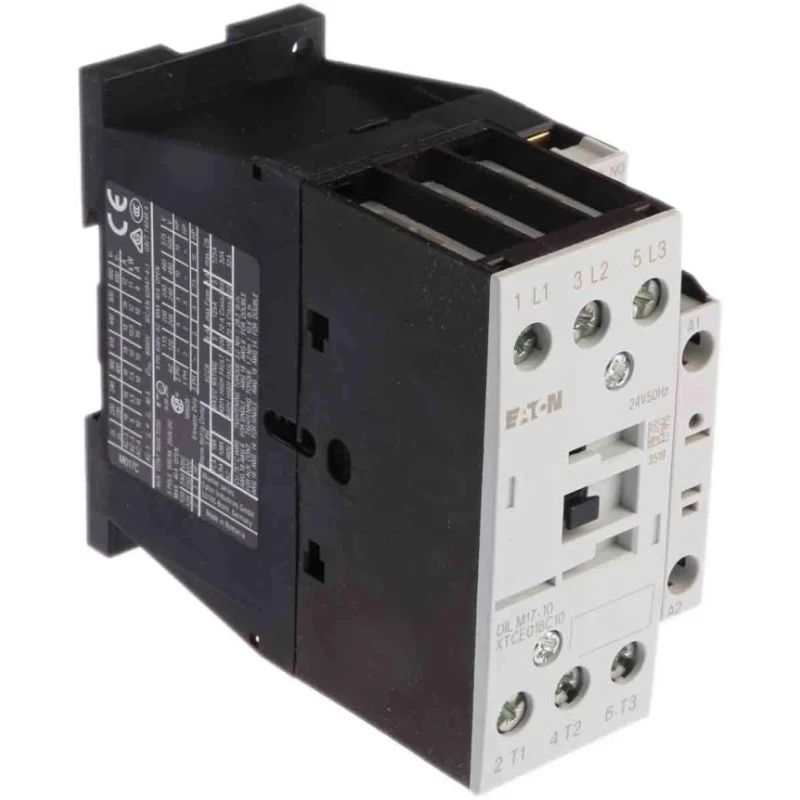

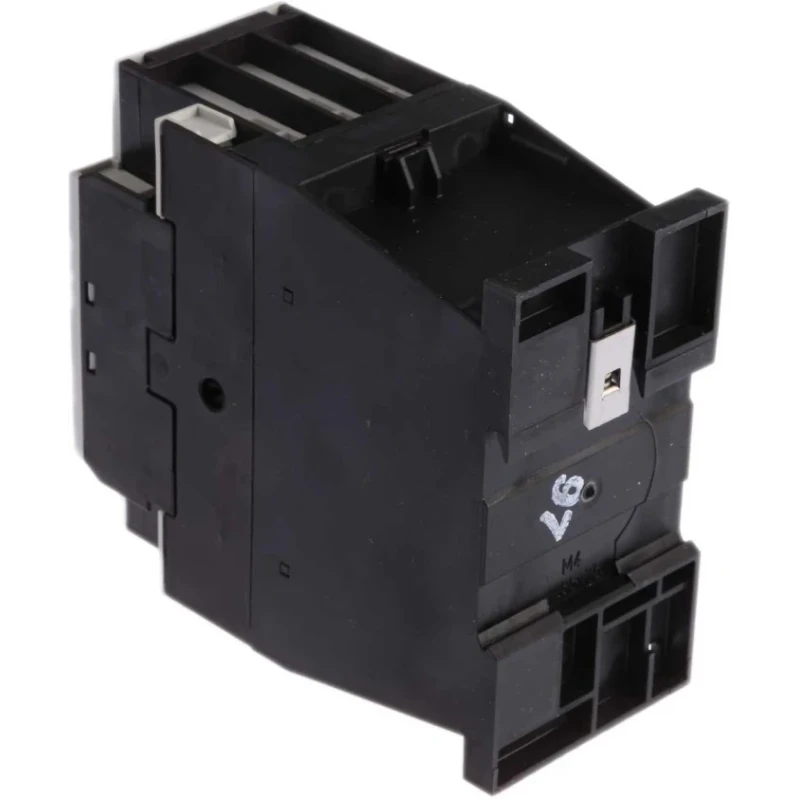

Eaton Contactor 3-Pole 17 A 7.5 kW 24V AC Coil Screw Mount DILM17-10(24V50HZ) 276991 DILM17-10(24V50HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | 276991 DILM17-10(24V50HZ) |
| Depth | 138mm |
| Width | 56mm |
| Mount Type | Screw |
| Series | DILM |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, CSA, IEC/EN 60947, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 17A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 245V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| DIL-M 4NO control relay,24Vac coilBrand | Moeller |
| Eaton DILM Contactor, 24V ac Coil, 3-Pole, 12 A, 5.5 kW 245V, 3 NO, 400V acBrand | Eaton |
| Cooper Bussmann 50A T Cartridge Fuse, 20.5 x 76.2mmBrand | Cooper Bussmann |
Key Features
- Designed with screw clamp terminals for easy installation without special tools.
- Operates reliably between -25°C and +40°C, suitable for industrial environments.
- Compact dimensions of 56 mm width, 85 mm length, and 138 mm depth to save panel space.
- Supports motor control and resistive loads with a 400V AC contact voltage.
- Features 3 normally open (3 NO) poles for controlling up to three phases simultaneously.
- Includes one auxiliary contact configured as 1 NO for additional control functions.
- Rated for up to 18 A operational current (Ie) and 245V control circuit voltage (Uc).
- Complies with industry standards VDE 0660, CSA, IEC/EN 60947, and UL for assured safety.
Product Description
Eaton 276991 DILM17-10(24V50HZ) Contactor is a high-quality motor control device designed for reliable switching in industrial automation and control applications. Featuring a 3-pole configuration with a 24V AC coil, it supports a contact current of 17 A and a power rating of 7.5 kW, ideal for controlling smaller motors and resistive loads.
The contactor adopts screw clamp terminals, ensuring straightforward and secure installation without requiring specialized tools. Its robust design withstands ambient temperatures ranging from -25°C to +40°C, catering to demanding industrial environments.
With compact dimensions of 56 mm width, 85 mm length, and 138 mm depth, this Eaton contactor optimizes panel space usage. It operates at a contact voltage of 400V AC with 3 normally open poles, allowing simultaneous control of three phases to enhance motor management efficiency.
It includes one auxiliary contact configured as 1 NO, offering additional operational flexibility for control circuits. The contactor is rated for an operational current (Ie) of 18 A and a control circuit voltage (Uc) of 245V, meeting diverse industrial system requirements.
Compliant with international standards including VDE 0660, CSA, IEC/EN 60947, and UL, this contactor guarantees reliable and safe operation. Manufactured in Romania, it embodies Eaton's commitment to quality and durability for industrial, automation, manufacturing, and motor control applications.
Easy installation with screw terminals without specialist tools. Reliable operation in ambient temperatures from -25°C to +40°C. Compact size suitable for space-constrained panels. 3 poles, normally open configuration enabling three-phase motor control.
Auxiliary contact (1 NO) for extended control functions. High operational current rating (18 A) and control voltage (245V). Meets key international safety and performance standards. Suitable for industrial, manufacturing, HVAC, and automation use cases.
Manufactured in Romania ensuring consistent quality. Explore the complete range of automation and control gear at EnvMart to find complementary Eaton Contactors and accessories for your industrial needs.
