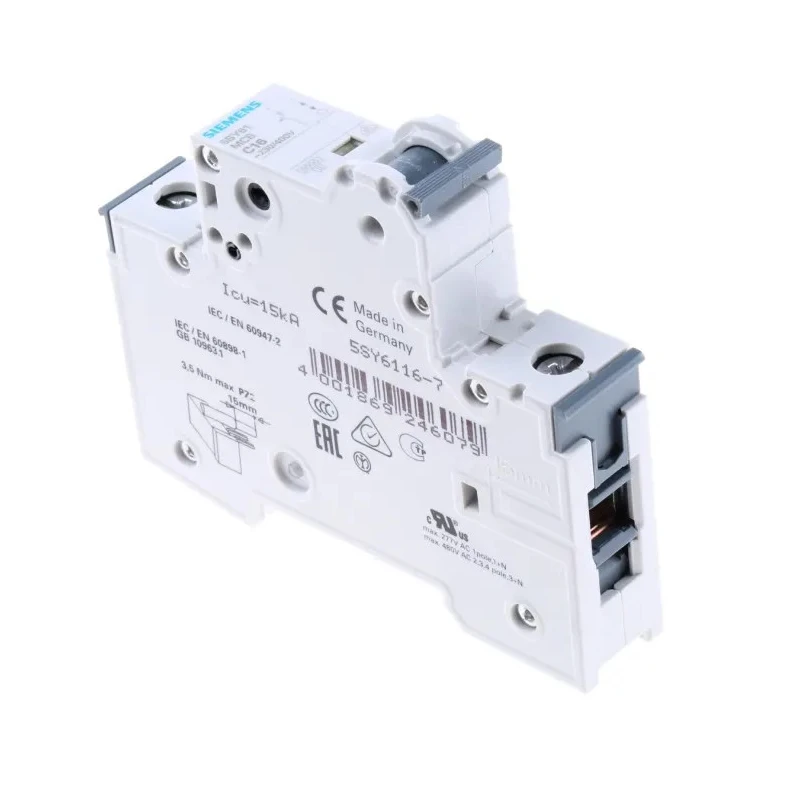

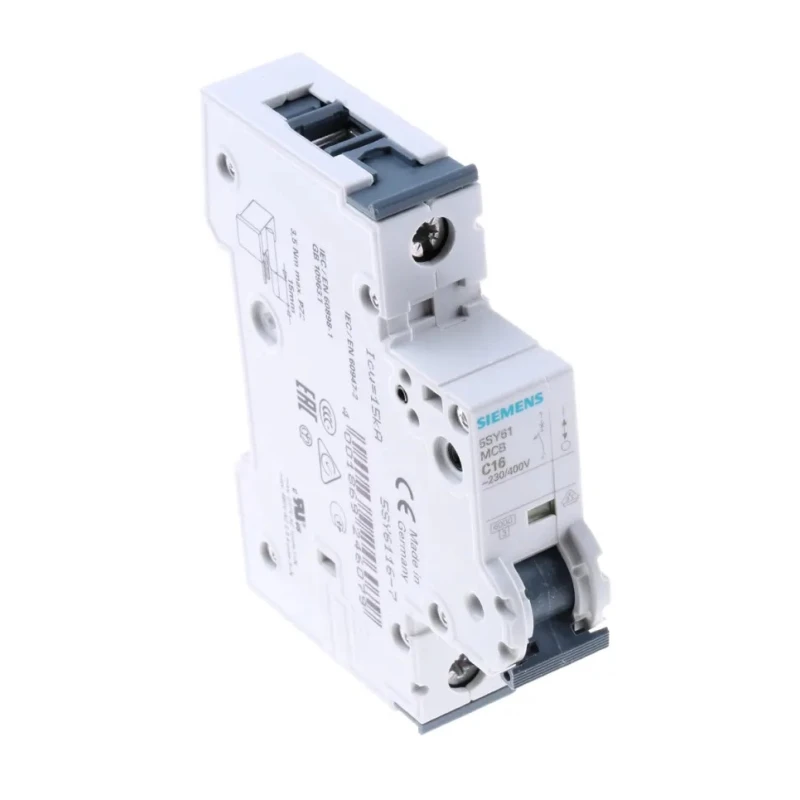

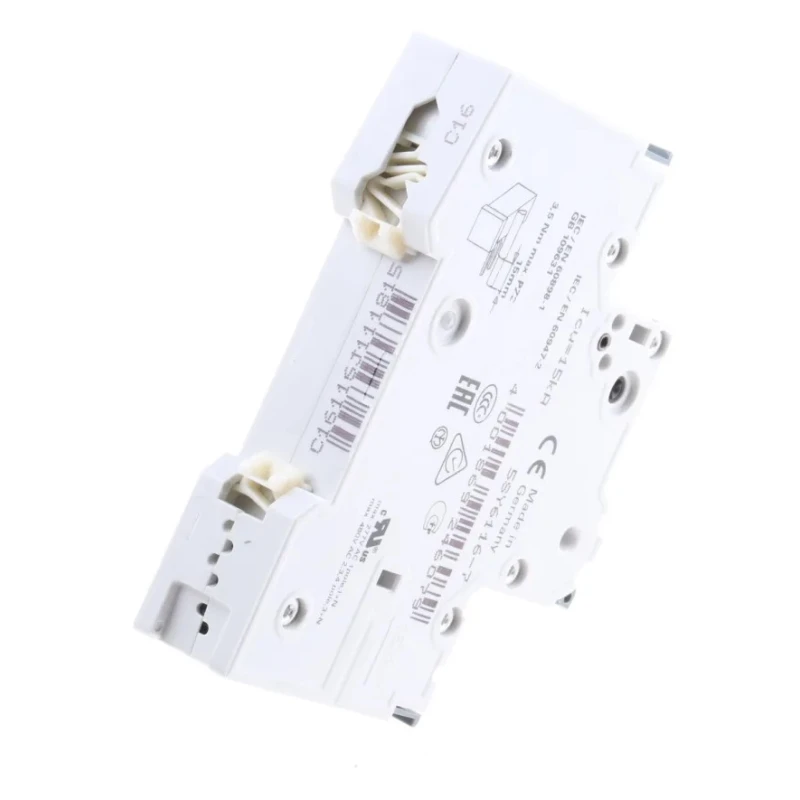

Siemens SENTRON Miniature Circuit Breaker, 1-Pole, 16A, Type C, 400V AC, 72V DC, 6kA Breaking Capacity 5SY6116-7

Siemens 5SY6116-7 Miniature Circuit Breaker is a high-quality electrical protection device designed to safeguard circuits against overloads and short circuits. This 1-pole MCB has a current rating of 16 amperes and tripping characteristics of Type C, making it well suited for industrial and commercial electrical installations.

The device is rated for an AC voltage of 400 volts and DC voltage of 72 volts, offering dual operational capability. It features a breaking capacity of 6 kiloamperes, which provides reliable interruption capabilities to protect both wiring and connected equipment under fault conditions.

The MCB is designed to mount quickly and securely on a standard 35mm DIN rail without any tools, simplifying installation and maintenance. Screw-type terminals ensure firm and stable connection of conductors with sizes ranging from 0.75 to 35 mm² (18 to 4 AWG).

This circuit breaker is IP20 rated, which guarantees protection against solid objects larger than 12 mm, including accidental finger contact, enhancing operational safety. It has a compact form factor with a depth of 76 mm and width of 17.5 mm, allowing efficient panel space utilization.

Engineered to withstand challenging environmental conditions, it tolerates relative humidity up to 95% and operates effectively within a temperature range of -25°C to +55°C. Its resistance to shock and vibration makes it well suited for demanding industrial environments.

The MCB complies with international standards IEC 60898, EN 60898, and VDE 0641 Part 11, reflecting Siemens commitment to safety and reliability. It is manufactured in Germany, underscoring its quality and durability in critical applications.

This MCB is designed for 1-pole installation, suitable for DIN rail mounting. Operates efficiently at 400V AC and 72V DC voltage ratings. Breaking capacity of 6kA ensures safety from overloads and short circuits. Equipped with screw-type terminals for secure wiring connections.

Compact design with dimensions of 76mm depth and 17.5mm width saves panel space. IP20 rated, providing protection against objects larger than 12mm and safe to touch. Works reliably in harsh environments with temperature tolerance from -25°C to +55°C.

Supports conductor sizes from 0.75 to 35mm² providing versatility. Conforms to standards IEC 60898, EN 60898, and VDE 0641 Part 11 for quality and safety assurance. Manufactured in Germany ensuring high production standards and reliability.

Ideal for electrical, automation, and industrial control applications, this Siemens SENTRON MCB provides dependable protection and efficiency. Explore more circuit breaker solutions by Siemens on EnvMart for your specific installation needs.
