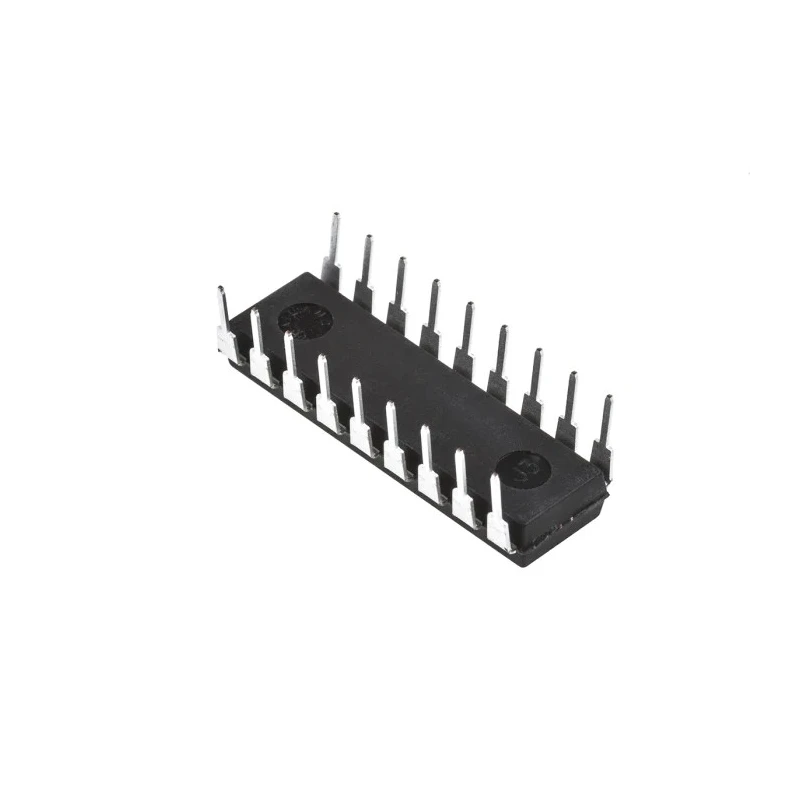

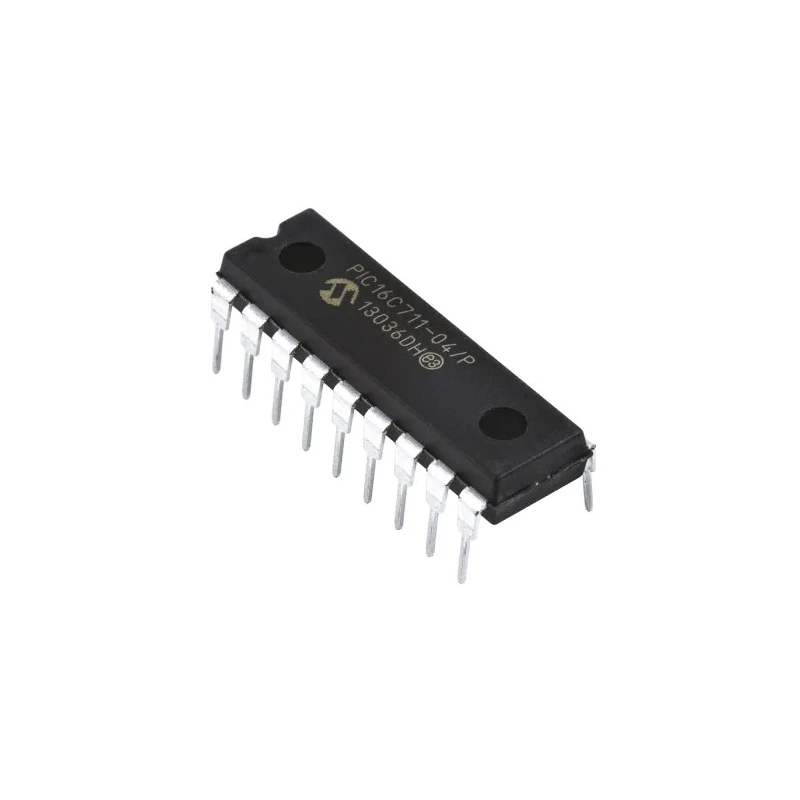

Microchip 8 bit PIC PIC16C Microcontroller 4 MHz 1.75kB EPROM 18-Pin PDIP PIC16C711-04/P

Microchip PIC16C711-04/P is an 8-bit PIC microcontroller from the PIC16C series, featuring a 4 MHz maximum clock frequency and 1.75kB EPROM program memory. It is housed in an 18-pin PDIP package suitable for through-hole mounting, making it ideal for compact embedded control applications.

This microcontroller is built upon Microchip's RISC architecture, offering 35 14-bit instructions and an 8-level hardware stack which supports efficient program execution up to 5 MIPS. It includes 25 programmable I/O pins facilitating versatile hardware connectivity in industrial, laboratory, and embedded systems.

The device integrates a SPI interface for communication with peripheral devices and 4 channels of 8-bit analogue-to-digital converters supporting sensor integration. It operates over a supply voltage range of 2V to 5.5V and has a maximum power dissipation of 1W, ensuring energy efficient performance.

Additional features include a watchdog timer, power-on reset, power-up timer, oscillator start-up timer, and brown-out reset protection - except for the PIC16C71 model - to guarantee robust operation in demanding environments. Its operating temperature spans from 0°C to 70°C, compliant with ISO 9001 automotive standards.

The PIC16C711-04/P microcontroller is well-suited for legacy embedded systems, industrial control, instrumentation, and educational purposes. Users requiring more flexible and flash-based programming should consider updated PIC16F series variants.

Utilizes an 8-bit PIC architecture optimized for embedded control. Operates with a maximum clock frequency of 4 MHz for moderate speed processing. Includes 1.75 kB of EPROM programmable memory for user programs. Equipped with 25 programmable input/output pins offering flexible interfacing.

Features an SPI communication interface for external device connectivity. Compact 18-pin PDIP package supporting through-hole PCB mounting. Functional operating voltage range from 2V to 5.5V ensures compatibility with varied power supplies.

Incorporates 4 channels of 8-bit analogue-to-digital converters for sensor reading. Embedded watchdog timer, power-on reset, and brown-out reset for reliable operation. Temperature operating range from 0°C to 70°C suited for industrial environments.
