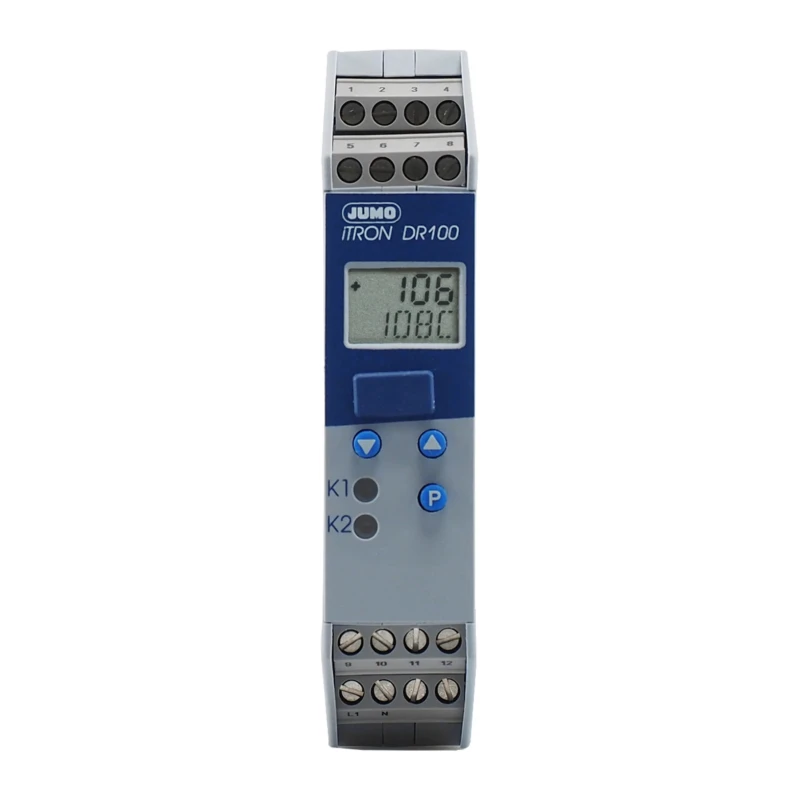

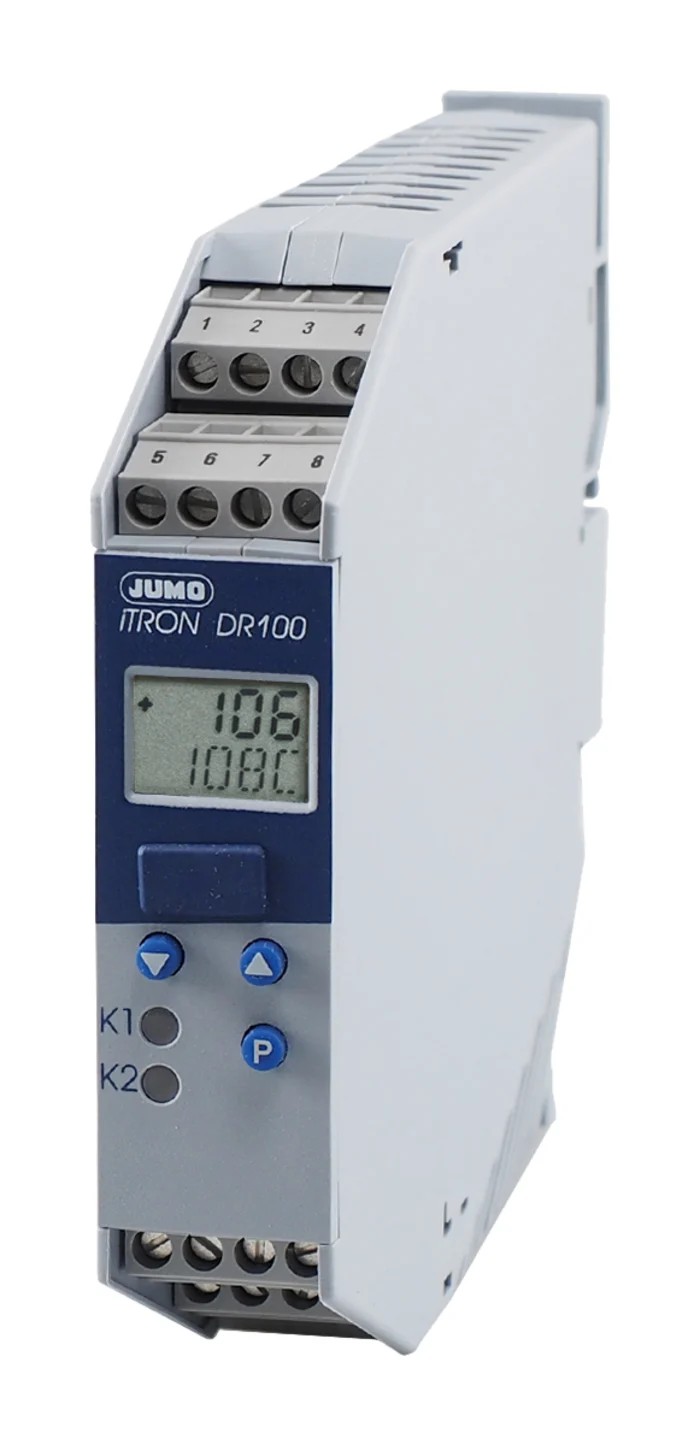

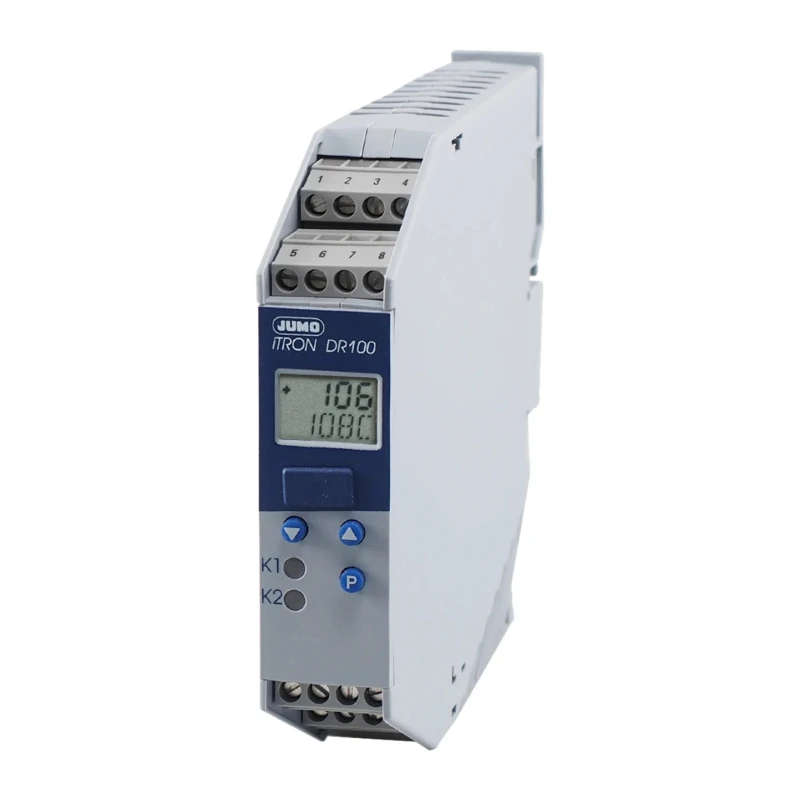

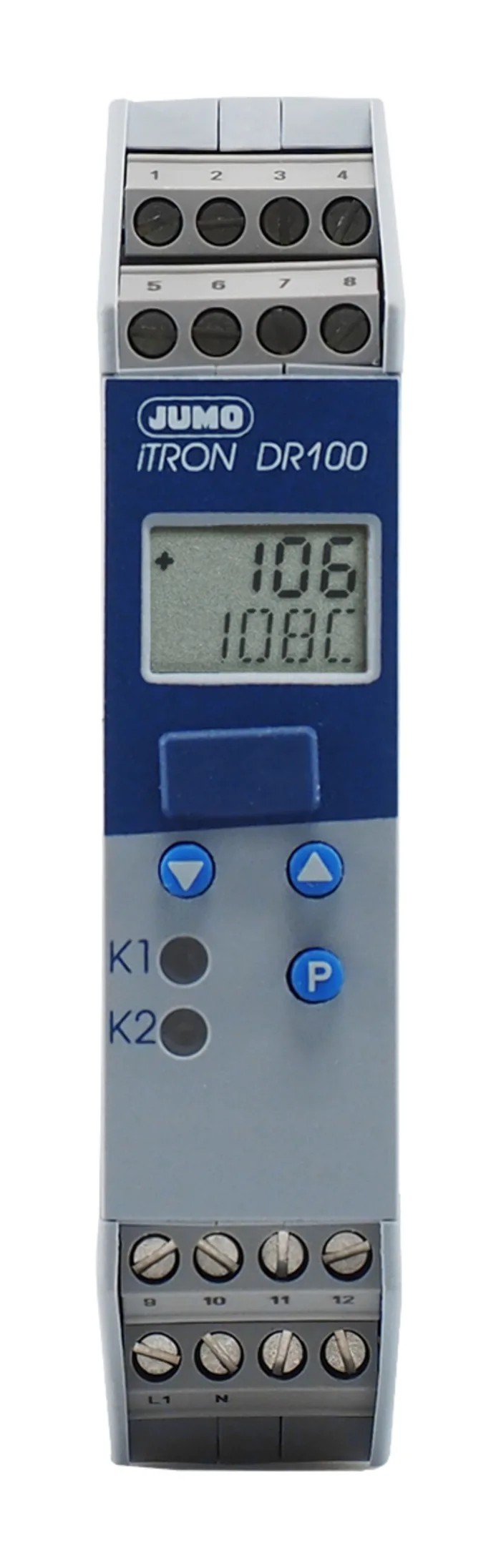

Jumo PID Temperature Controller 2 Output Relay SPDT/SPST, 240V AC On-Off 702060/288-888-000-23

Jumo 702060/288-888-000-23 PID Temperature Controller is a universal microprocessor-based regulator designed for precise and reliable temperature control in industrial automation and process control applications.

This DIN rail mount controller features a two-line alpha-numeric LCD display that clearly indicates actual and set-point values, facilitating easy programming and monitoring.

Two output relays offer flexible control options with single-pole double-throw (SPDT) and single-pole single-throw (SPST) configurations, suitable for a wide range of heating or cooling systems.

The device supports various sensor inputs such as thermocouples, logic inputs, DC voltage, and DC current, allowing it to be adapted for different measurement setups. Its control type is On-Off with options for two-point or three-point regulation, including a limit comparator, providing effective temperature management.

Additional features include a ramp function for smooth set point changes, timer functionality for scheduled control, and self-optimization for enhanced performance. The controller communicates digitally over TTL or RS232C interfaces, enabling integration with larger automation systems and data acquisition.

With operating limits from 0°C to 55°C and a compact panel depth of 124.8mm, it fits neatly into control panels while maintaining robustness.

The Jumo iTRON DR 100 series adheres to international standards such as UL 61010-1, EN 61326 (EMC), EN 61010, and CSA C22.2 No 61010-1, underscoring its industrial-grade reliability and safety.

Equipped with two output relays supporting SPDT and SPST configurations for versatile control. Operates efficiently between 0°C and 55°C ambient temperatures. Features an LCD display for clear visualization of set points and process values.

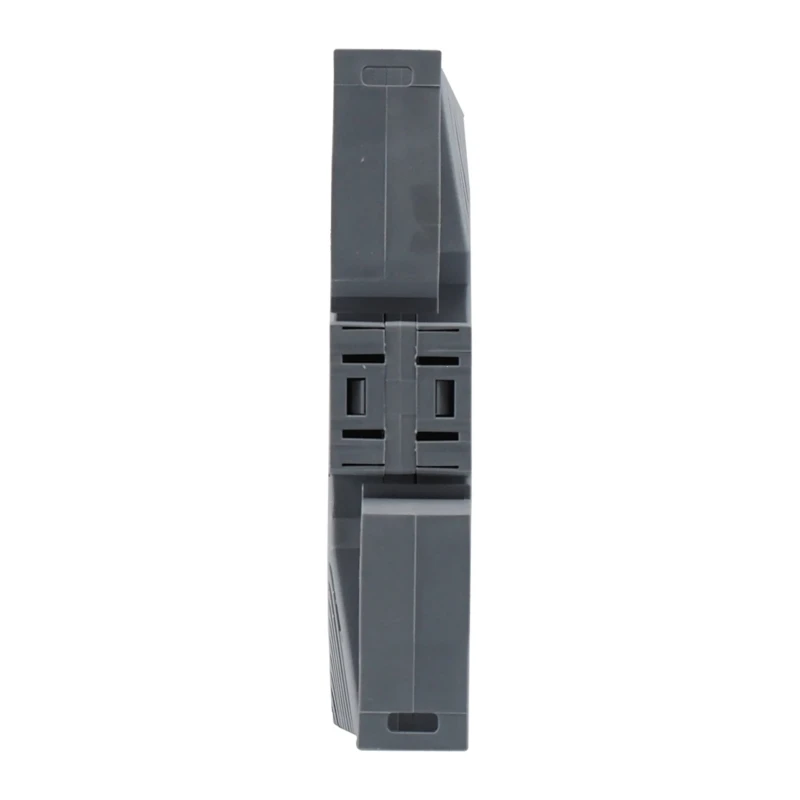

Mounts easily on DIN rail with a compact size of 109mm length and 22.5mm width. Supports multiple input types including Logic Input, Thermocouple, DC Voltage, and DC Current. Includes digital communication via TTL/RS232C interface for integration with control systems.

Has a maximum current rating of 3A and supports supply voltages up to 240V AC. Built with microprocessor control enabling fast sampling times of 210 ms and self-optimization functions. Designed and manufactured in Germany ensuring high quality and reliability.

This PID temperature controller is ideal for applications in industrial automation, manufacturing processes, HVAC systems, and laboratory environments requiring accurate and stable temperature regulation.
