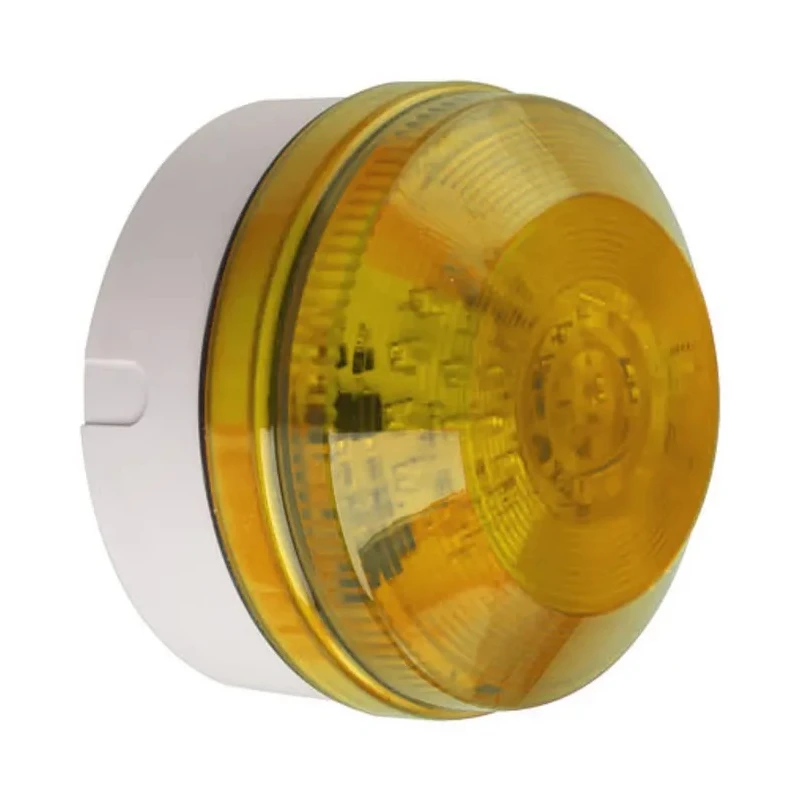

Moflash Industrial LED Amber Beacon 280V AC/DC Flashing, Rear Mount, IP65 LED195-05WH-SB-01

Free Delivery in India | Lowest Global Shipping Charges

Moflash Industrial LED Amber Beacon 280V AC/DC Flashing, Rear Mount, IP65 LED195-05WH-SB-01

Name: Moflash Industrial LED Amber Beacon 280V AC/DC Flashing, Rear Mount, IP65 LED195-05WH-SB-01
Brand: Moflash
SKU: 189401
Price: 115.1 USD
Availability: InStock



Category Automation Signalling Beacon Brand Moflash Condition New

Specifications

Country of Origin	United Kingdom
Brand	Moflash
Height	73mm
Model	LED195-05WH-SB-01
IP Rating	IP65
Mount Type	Rear
Housing Material	ABS
Bulb Type	LED
Series	LED195
Maximum Operating Temperature	55°C
Current Type	AC/DC
Current consumption	35mA
Minimum Operating Temperature	-25°C
Base Diameter	104mm
Terminal type	Terminal Block
Lens Colour	Amber
Standards/Approvals	CE Certified
Maximum Supply Voltage	280V ac/dc
Housing Colour	White
Light Effect	Flashing

Key Features

Designed for industrial and commercial applications requiring low maintenance.
Features an amber flashing LED bulb with IP65 dustproof and weatherproof rating.
Equipped with a white ABS housing and terminal block connection.
Operates at 35mA current consumption with a maximum supply voltage of 280V AC/DC.
Includes two-stage alarm with selectable flashing or continuous modes.
Temperature operating range from -25°C to 55°C ensures reliability in harsh conditions.
Measures 73mm in height with a 104mm base diameter for rear mount installation.
CE certified for quality and safety compliance.

Product Description

Moflash LED195-05WH-SB-01 is a professional-grade industrial LED Amber Beacon designed for signaling in diverse industrial environments. It features a robust white ABS housing that offers excellent durability and protection, rated IP65 to resist dust and water ingress.

The beacon uses an efficient LED bulb technology with very low current consumption of only 35mA and supports operation on both AC and DC current types up to a maximum supply voltage of 280V. This versatility allows easy integration into various industrial electrical systems.

The beacon can be mounted at the rear and comes with a terminal block for straightforward cable termination within the enclosure, ensuring safe and reliable electrical connections. It incorporates a lamp included from factory, simplifying installation.

This product is suitable for continuous operation with long life and minimal maintenance requirements. It supports two-stage alarm signaling with selectable flashing or continuous modes enabled via jumper link, enhancing its functionality for signaling and alert systems.

The operating temperature range of -25°C to 55°C makes it suitable for harsh industrial and commercial environments. Its compact dimensions (height 73mm and base diameter 104mm) allow flexible mounting options.

Industrial Amber LED Beacon for signaling and alarm applications. Flashing or continuous light effects selectable by jumper. Durable ABS housing with IP65 rating ensures weatherproof protection. Wide operating voltage range with AC/DC compatibility.

Compact rear mount design with terminal block connection. Low current consumption ensures energy efficiency. CE certified for compliance with safety standards.

This LED beacon is ideal for use in industrial, manufacturing, automation, and commercial environments where reliable visual signaling and alarm indication are required. Explore more automation signalling products and industrial LEDs in the EnvMart catalog to find compatible control solutions.

Explore more products in our Automation Signalling Beacon category.
