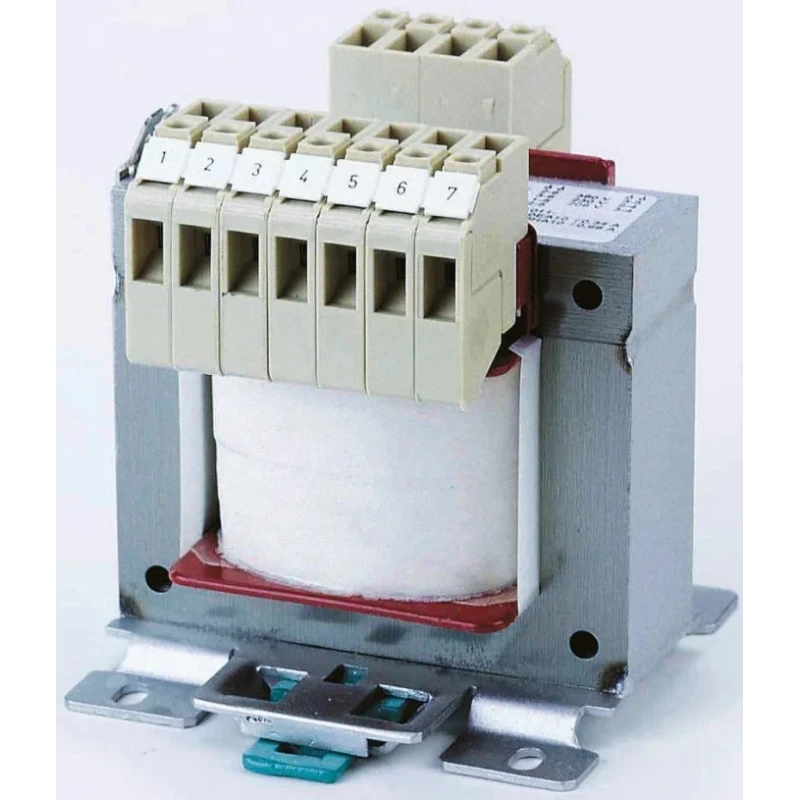

Siemens 400 VA DIN Rail Transformer, 400 V ac Primary Voltage, 24 V ac Secondary Voltage, Screw Mount 4AM4642-5AN00-0EA0

Siemens 4AM4642-5AN00-0EA0 DIN Rail Transformer is a reliable 1-phase control transformer designed for demanding industrial and electronic applications. It offers a power rating of 400 VA with a primary voltage of 400 V ac and secondary voltage of 24 V ac, enabling its use as a power, safety, or displacement transformer compliant with EN standards.

Featuring screw terminals for easy and secure mounting on DIN rails, this transformer ensures excellent mechanical stability and durable connections. It operates efficiently between 50 Hz and 60 Hz frequencies, with a maximum operating temperature of 40° Celsius, suitable for most industrial environments.

Its construction includes electrically isolated coils that protect the equipment from short circuits and overloading when combined with motor protection switches on the primary side. The compact size (121 mm length, 122 mm width, and 114 mm depth) makes it ideal for use in control cabinets and power distribution panels.

The Siemens 4AM4642-5AN00-0EA0 complies with rigorous industry standards such as EN 61558-2-2 and EN 61558-2-6 and holds certifications including CE marking, cRUus, UL, and CSA, ensuring it meets safety and quality requirements for global applications.

Rated power capacity of 400 VA suitable for control and safety transformer applications. Primary voltage is 400 V ac ensuring compatibility with industrial power supplies. Secondary voltage output of 24 V ac for low-voltage control circuits.

Operates effectively within frequency range of 50 to 60 Hz. Screw type mount and termination for robust installation and secure connections. Complies with EN 61558-2-2, -2-6 standards for safety and performance assurance.

Certified with CE, cRUus, UL, and CSA approvals for international compliance. Compact dimensions: Length 121 mm, Width 122 mm, Depth 114 mm for DIN rail mounting. Maximum operating temperature is 40°C ensuring reliable operation under standard industrial conditions.

Constructed with electrically isolated coils to protect against short circuits and overloads.

This transformer is perfectly suited for industrial machinery, power control cabinets, HVAC systems, manufacturing automation, and water treatment applications where reliable and safe voltage transformation is critical.
