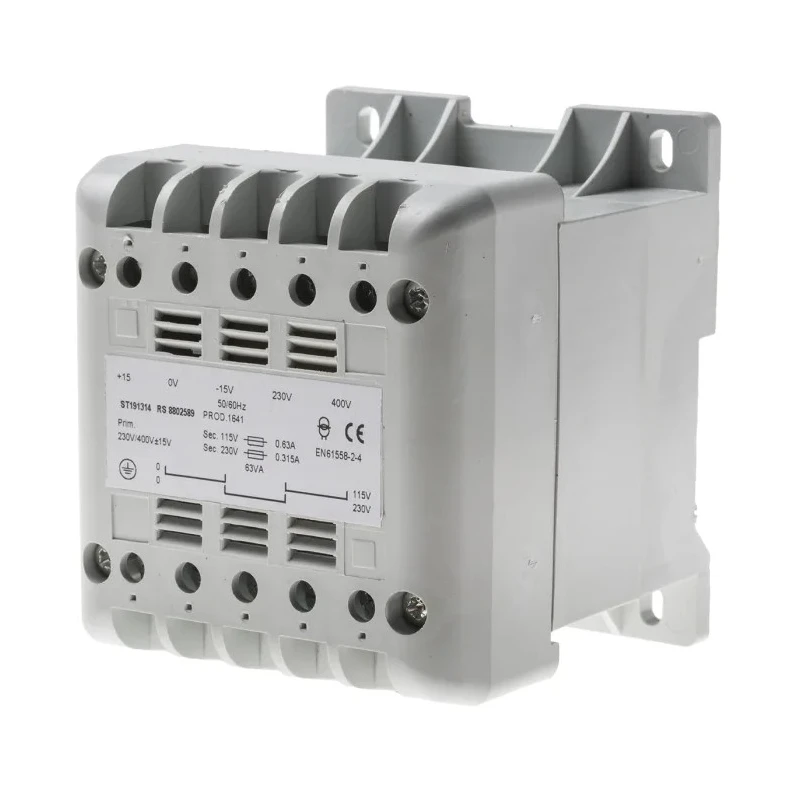

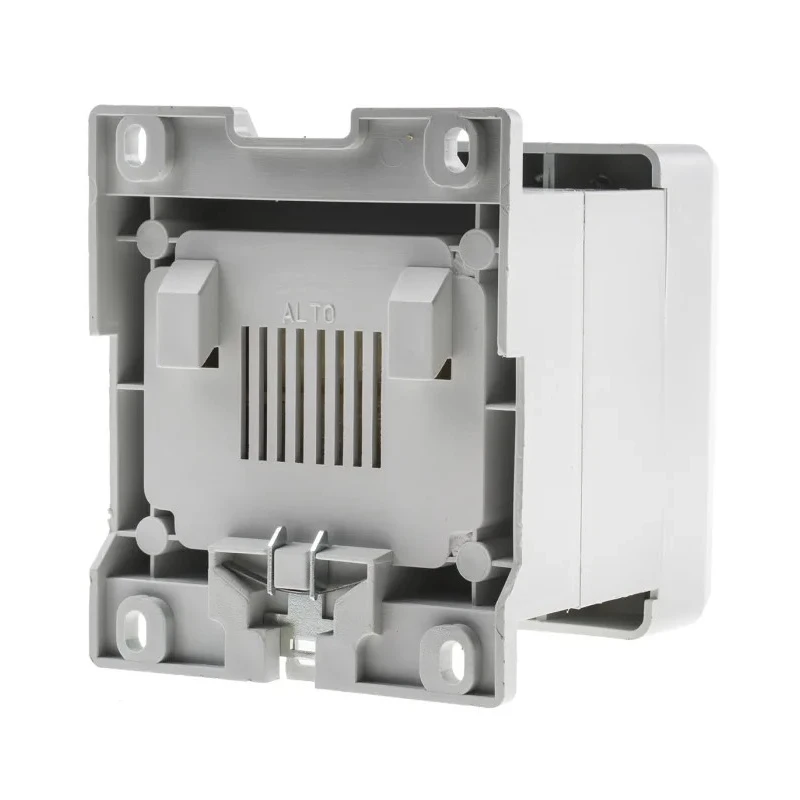

RS PRO 63 VA DIN Rail Transformer 400 V ac Primary, 12 V, 115 V ac, 24 V Secondary, 50-60 Hz, IP21 Rated 880-2589

RS PRO 880-2589 DIN Rail Transformer is a professionally designed 63 VA transformer ideal for industrial and commercial power distribution applications. Featuring a DIN rail mount type, this transformer offers flexible primary voltages of 400 V ac and 230 V to suit various input power sources.

The unit includes two secondary outputs delivering 12 V, 115 V ac, and 24 V allowing for multiple voltage options tailored to different equipment requirements. It operates reliably within a frequency range of 50 Hz to 60 Hz and withstands a maximum operating temperature of 130°C, making it robust for demanding environments.

This IP21 rated open-type transformer is engineered with fully shrouded screw terminals permanently marked for safety and easy installation. The product is certified under ASNZS 61558..6, IECBSEN 61558 series, CE, and RoHS standards, ensuring compliance with international safety and environmental regulations.

Measuring 106 mm in length, 90 mm in width, and 87 mm in depth, with a weight of 1.5 kg, the compact and lightweight design facilitates straightforward integration into control panels and electrical cabinets.

The RS PRO 880-2589 transformer is well-suited for industrial electrical systems, manufacturing plants, water treatment facilities, HVAC installations, and other commercial electrical distribution needs requiring reliable voltage conversion and isolation.

Primary voltage options include 400 V ac and 230 V for broad compatibility. Multiple secondary voltages supplied: 12 V, 115 V ac, and 24 V. DIN rail mount for convenient and secure installation. Rated IP21, providing partial protection against dust and water.

Operates at frequencies between 50 Hz and 60 Hz worldwide. Maximum operating temperature of 130°C ensures operational endurance. Conforms to ASNZS and IEC standards and RoHS for safety and environmental compliance. Compact dimensions and lightweight form factor promote ease of mounting.

Fully shrouded screw terminals labeled permanently for clear wiring. Designed for a variety of industrial, manufacturing, and electrical applications. Browse the Electronics & Electricals category on EnvMart for additional RS PRO transformers, power supplies, and related equipment to support your project's requirements.
