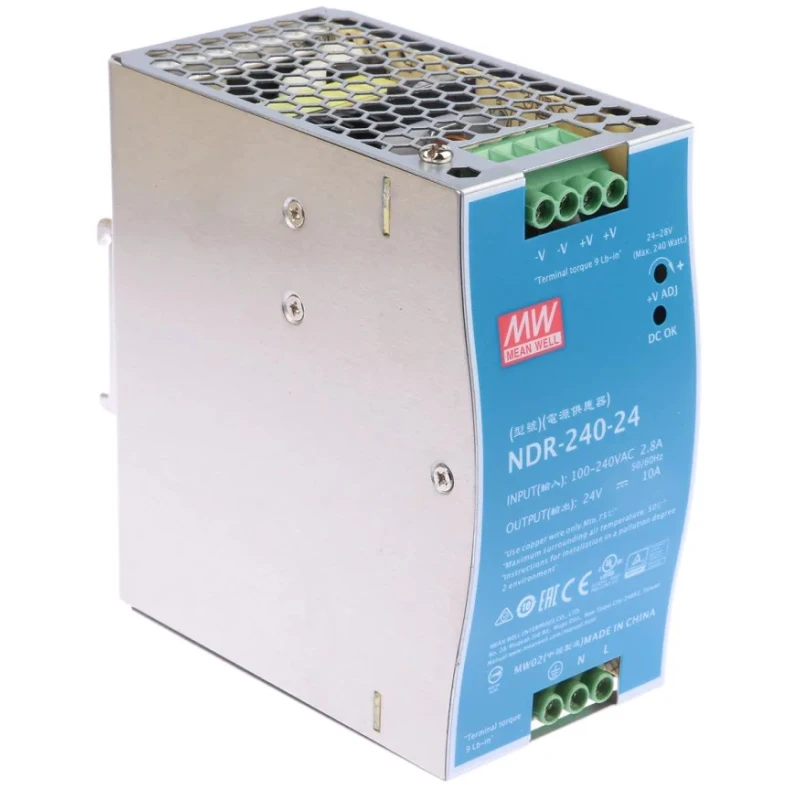

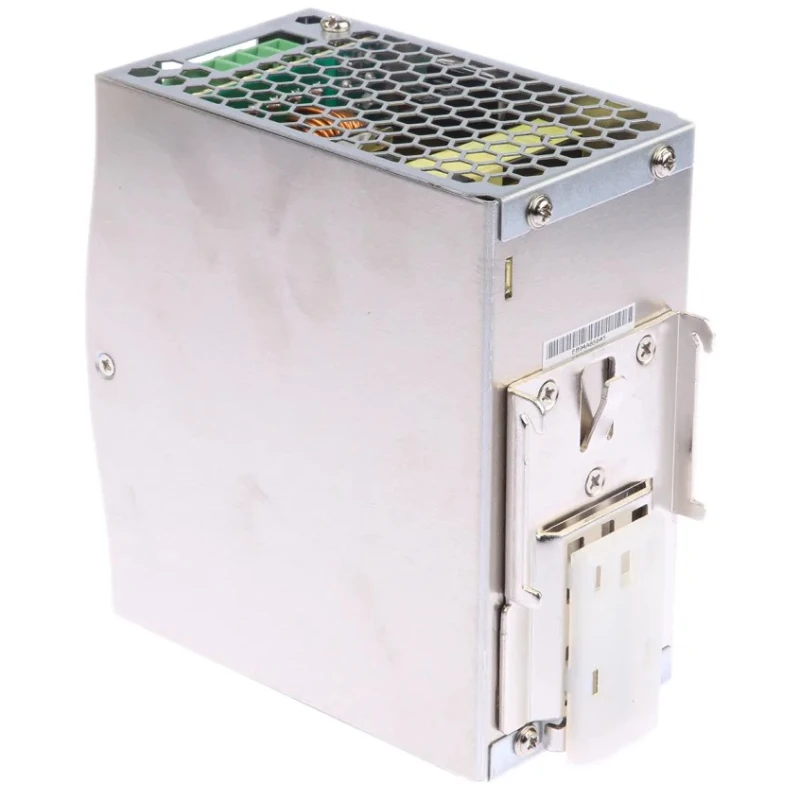

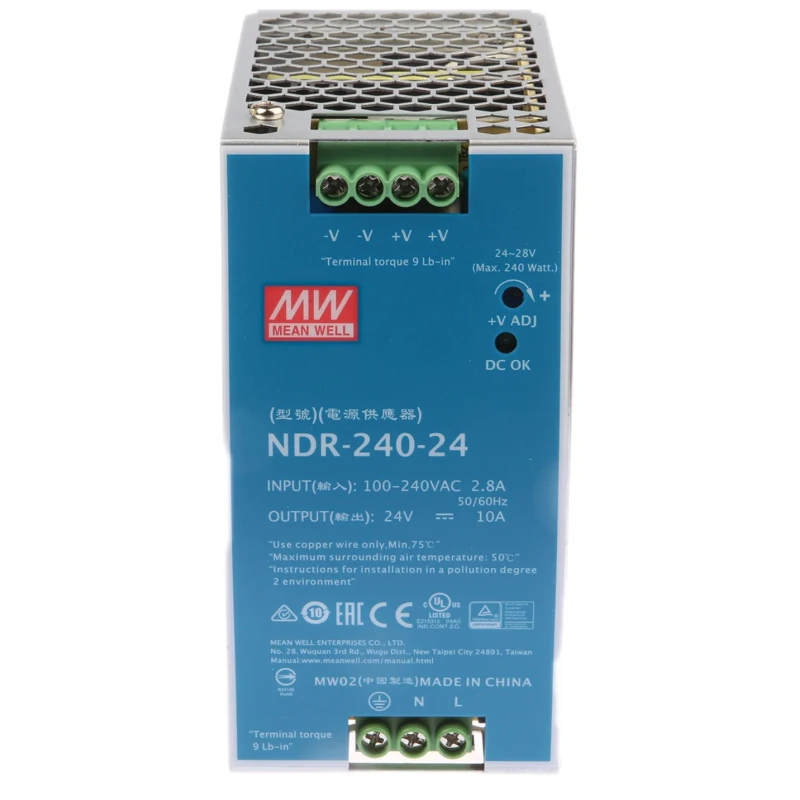

RS PRO MEAN WELL NDR-240-24 Switched Mode DIN Rail Power Supply 24 V, 10 A, 240 W
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 240W |
| Height | 125mm |
| Model | NDR-240-24 |
| Depth | 114mm |
| Width | 63mm |
| Series | NDR |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | TUV EN 609501, RoHS, UL |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Supports universal AC input voltage ranging from 90V to 264V AC.
- Single output with maximum output voltage of 28 V DC.
- Built-in protections include short circuit, overload, over voltage, and over temperature.
- Compact metal housing designed to fit TS-35/7.5 or TS-35/15 DIN mounting rails.
- Operating temperature range from -20°C to 70°C with cooling by free air convection.
- Complies with industrial standards including UL 508 and TUV EN 60950-1.
- Active power factor correction (PFC) for efficient operation with 88.5% efficiency.
- Remote signal DC-OK output available for monitoring power status.
Product Description
RS PRO MEAN WELL NDR-240-24 is a switched mode DIN rail power supply rated at 24 V output, 10 A current, and 240 W power designed for industrial applications. This compact PSU features a universal AC input voltage range of 90 to 264 V AC and delivers a regulated DC output with a maximum voltage of 28 V.
The series utilizes a slim metal housing to enable efficient power dissipation and is suitable for installation on TS-35/7.5 or TS-35/15 DIN rails, helping to save space within control cabinets. It operates reliably in ambient temperatures from -20°C up to 70°C using convection cooling without fans.
Safety and reliability are enhanced with multiple built-in protections including short circuit, overload, overvoltage, and overtemperature safeguards. The power supply meets key industrial compliance standards such as UL 508 for industrial control equipment and TUV EN 60950-1, with RoHS directive conformity ensuring environmental safety.
The NDR-240-24 features an active power factor correction circuit to improve input power efficiency, reaching an efficiency rating of approximately 88.5%. Additionally, a remote DC-OK signal output enables external monitoring of the power supply’s status, proving beneficial for automated system control and fault detection.
This power supply is particularly well suited for industrial automation systems, semiconductor fabrication equipment, electro-mechanical apparatus, and other demanding manufacturing or factory automation environments. Its compact design enables quick and organized mounting on DIN rails, reducing cabling and installation time.
Universal AC input voltage from 90 to 264 V AC. Single DC output rated 24 V, 10 A, 240 W power. Built-in protection against short circuit, overload, over voltage, and over temperature. Metal casing with slim design for easy DIN rail mounting.
Cooling by free air convection, no fan required. Compliance with UL 508, TUV EN 60950-1, and RoHS standards. Active PFC for enhanced power efficiency. Remote DC-OK output for status monitoring. Operating temperature range -20°C to 70°C.
Explore more RS PRO power supply products and industrial components at EnvMart.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 24 V and a maximum output current of 10 A.
The NDR-240-24 has a power rating of 240 W.
It supports a universal AC input voltage range from 90 V to 264 V AC.
The dimensions of this unit are 125 mm in height, 114 mm in depth, and 63 mm in width.
The maximum operating temperature is 70°C, while the minimum is -20°C.
It includes protections against short circuit, overload, overvoltage, and overtemperature.
Yes, it complies with UL 508, TUV EN 60950-1, and RoHS standards.
It uses free air convection for cooling and does not require a fan.
Yes, it features a remote DC-OK output for monitoring the power status.
It is designed for mounting on TS-35/7.5 or TS-35/15 DIN rails.
The NDR-240-24 has an efficiency rating of approximately 88.5%.
This unit has a single output.
