Otto P9 Series Push Button Switch Momentary Panel 0.5 x 0.5 in Cutout DPDT Black LED IP68 28 V dc 115 V ac P9-213122

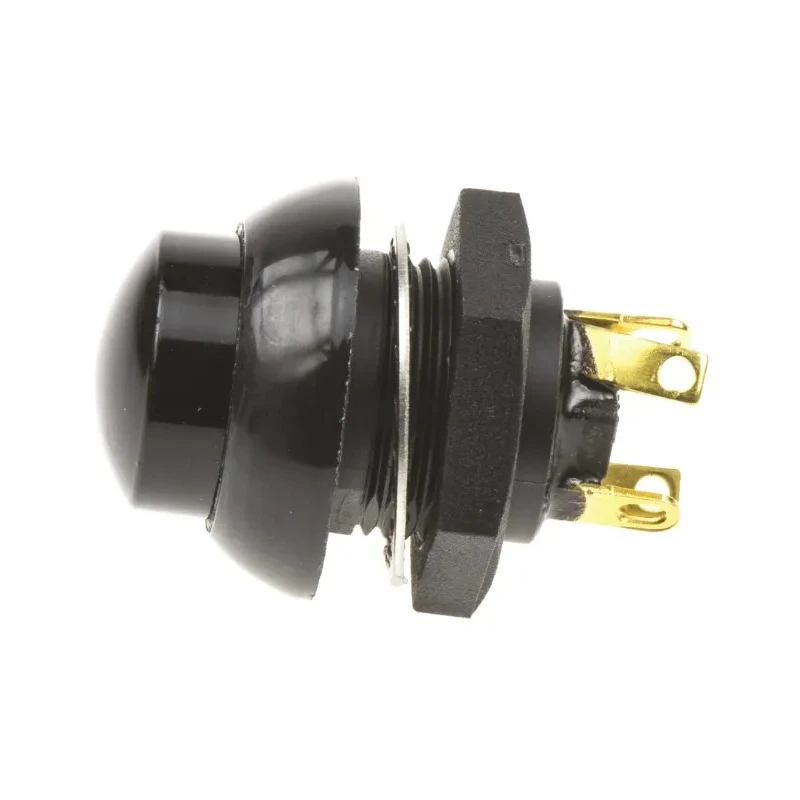

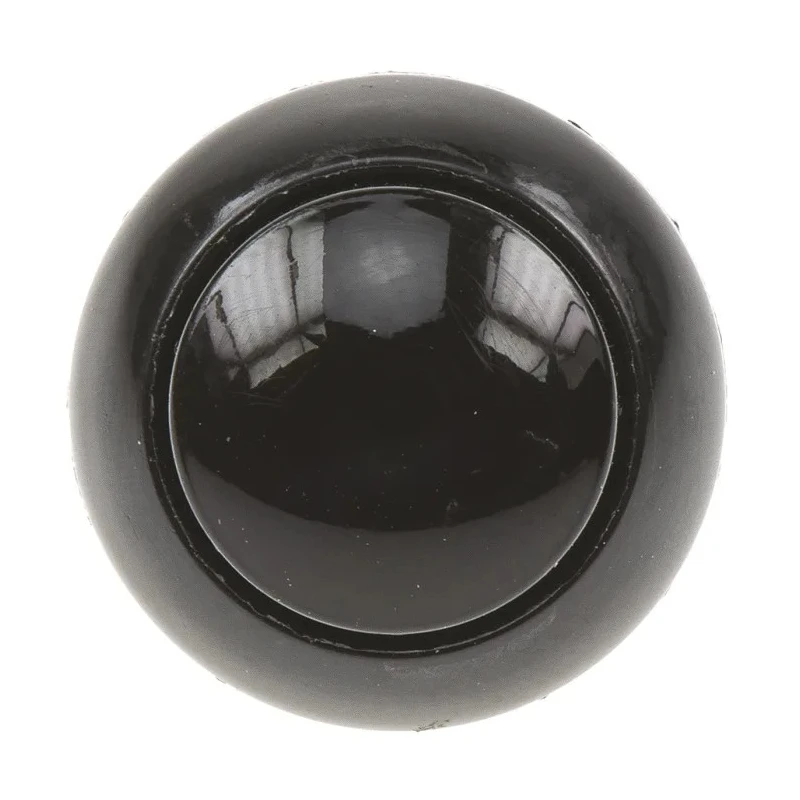

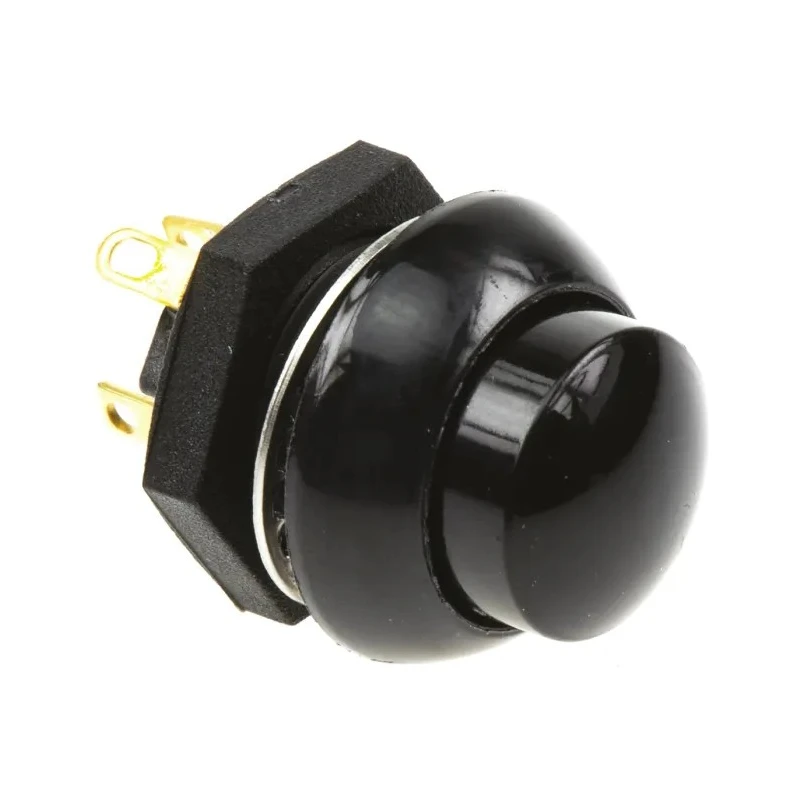

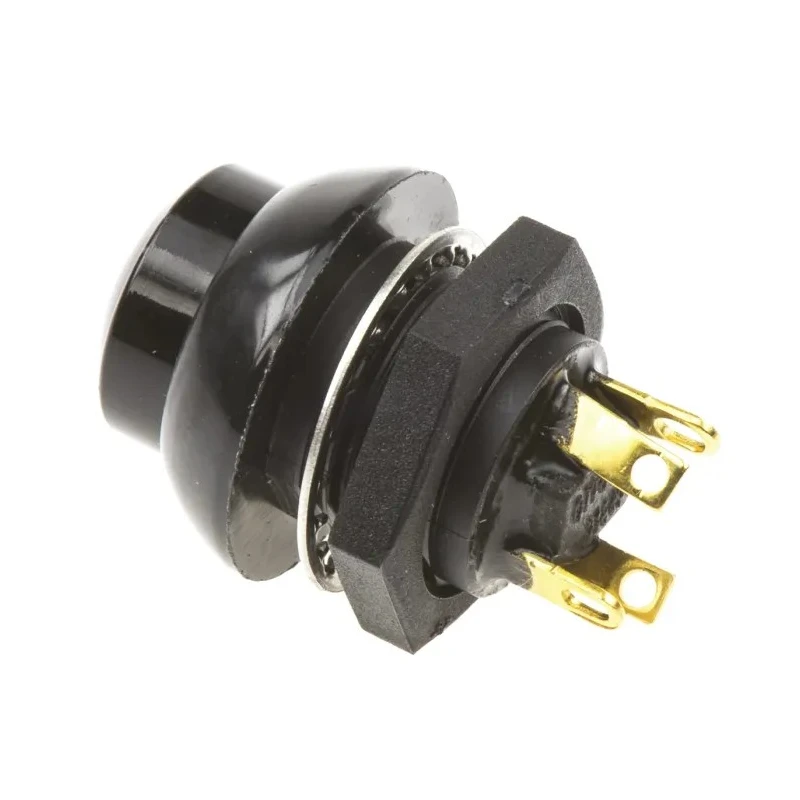

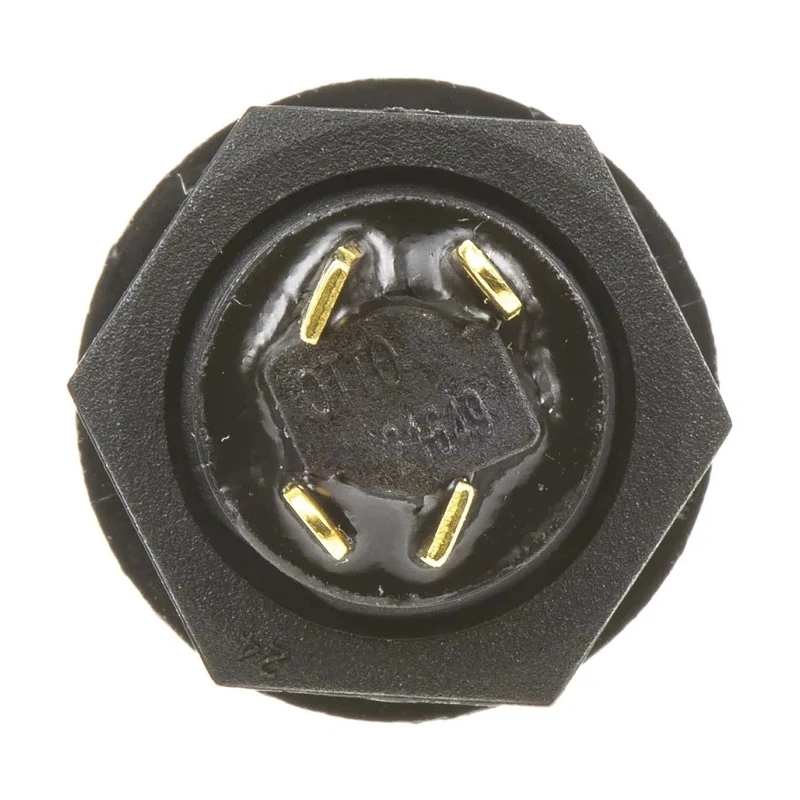

Otto P9-213122 push button switch is a momentary action panel-mounted switch designed with a contoured dome style black actuator button and a black bezel and body. It fits into a 0.5 x 0.5 inch panel cutout and features a DPDT (Double Pole Double Throw) contact configuration. This switch operates at 28 V dc and 115 V ac voltage ratings with a maximum switch contact current of 5 amps, making it suitable for various industrial and commercial applications.

The switch is IP68 rated, offering excellent protection against moisture and dust ingress, which ensures reliability even in harsh operating environments. With an electrical life of 25,000 operations and mechanical endurance of around one million operations, the P9-213122 is engineered for longevity and dependable performance.

It provides positive tactile feedback through its button actuator style and includes a threaded body for secure panel mounting using a hex nut. The behind panel depth is approximately 12 mm, helping to maintain a compact installation profile.

The operating temperature range from -55°C to 85°C ensures stable functionality across extreme environmental conditions. Its low contact resistance enables accurate low-level switching, suitable for integration into control grips, computers, instruments, heavy equipment, and demanding industrial panels.

This switch features RoHS compliance, demonstrating adherence to environmental and safety standards. The black LED illumination enhances visibility and status indication. Momentary push button operation with DPDT contacts.

Black body and actuator button for sleek appearance. Panel mount fitting with 0.5 x 0.5 inch cutout. IP68 rated for dust and moisture resistance. Rated for 5 A contact current and 28 V dc / 115 V ac voltages. Compact depth of ~12 mm behind panel.

Wide operating temperature from -55°C to 85°C. High mechanical and electrical durability. RoHS compliant for environmental safety.

This robust push button switch is ideal for automation control panels, electrical instrumentation, heavy machinery control, and other demanding applications requiring reliable, high-quality push button switching solutions.
