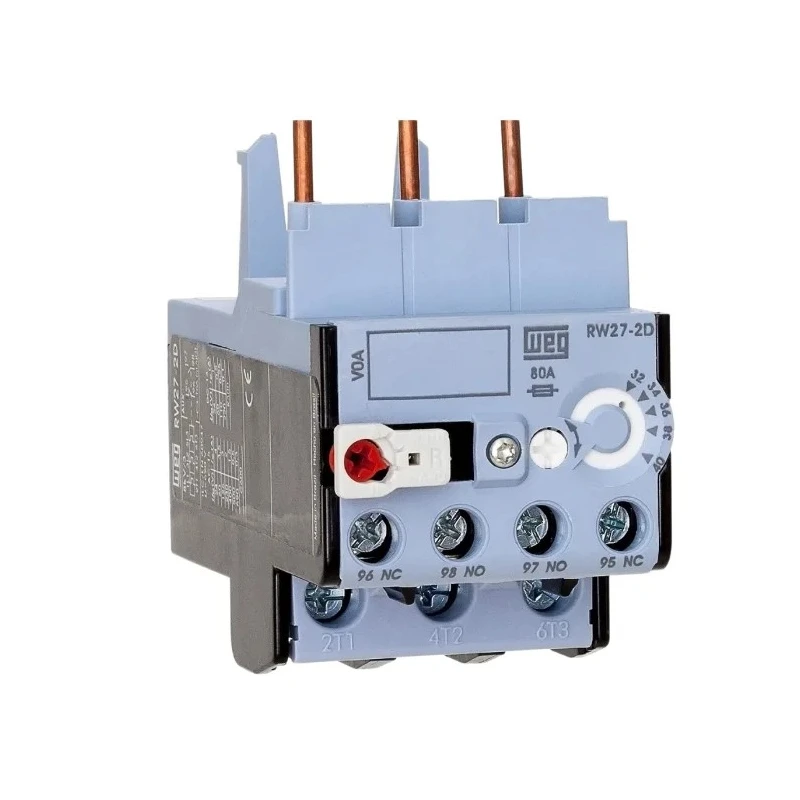

WEG Thermal Overload Relay 1 NO/1 NC, 40A F.L.C, 25A Relay Contact Current, 1.7W Power Rating RW27



Category Thermal Overload Relay Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Length	71.7mm
Model	RW27
Depth	83.7mm
IP Rating	IP20, IP10
Width	45mm
Mount Type	Direct
Series	RW27
Power Rating	1.7W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	100, 50V
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	25, 40A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	40A
Adjustable Current Range	25 → 40 A

Key Features

Features both automatic and manual reset methods for flexibility.
Adjustable current range from 25 to 40 A for versatile applications.
Mounts directly and supports a 3 pole and throw configuration.
Includes 2 auxiliary contacts for enhanced control functions.
Operates reliably in temperatures from -25°C to 60°C.
Provides a contact voltage rating of 690 V AC suitable for industrial use.
Complies with IEC 60947-4-1, IEC 60947-2, IEC 60947-1 and IEC 60034-30-1 standards.
Compact dimensions with a width of 45mm and length of 71.7mm, depth 83.7mm.

Product Description

WEG RW27 Thermal Overload Relay is engineered for industrial motor protection applications with a full load current (F.L.C) rating of 40A and a relay contact current of 25 and 40 A. The relay features an adjustable current range from 25 to 40 A and offers both automatic and manual reset options for precise control and flexible operation in harsh environments.

This relay supports direct mounting with a 3 pole and throw configuration and includes 2 auxiliary contacts for advanced control circuits. It operates at a contact voltage of 690 V AC and is rated for power up to 1.7 W, ensuring efficient thermal overload protection.

Constructed to meet stringent IEC standards including 60947-4-1, 60947-2, 60947-1, and 60034-30-1, this relay provides reliable performance with protection against electrical faults. The device is designed to operate within a temperature range from -25°C to 60°C, making it suitable for industrial environments with varying temperatures.

The compact form factor with dimensions of 45mm width, 71.7mm length, and 83.7mm depth allows for easy installation in control panels. Its IP rating of IP20, IP10 offers protection against solid objects and ensures durability.

Originating from Brazil, the WEG RW27 series thermal overload relay is an essential component in HVAC, manufacturing, and automation control gear applications to safeguard motors and maintain operational safety.

Features both automatic and manual reset methods for flexibility. Adjustable current range from 25 to 40 A for versatile applications. Mounts directly and supports a 3 pole and throw configuration. Includes 2 auxiliary contacts for enhanced control functions.

Operates reliably in temperatures from -25°C to 60°C. Provides a contact voltage rating of 690 V AC suitable for industrial use. Complies with IEC 60947-4-1, IEC 60947-2, IEC 60947-1 and IEC 60034-30-1 standards. Compact dimensions with a width of 45mm and length of 71.7mm, depth 83.7mm.
