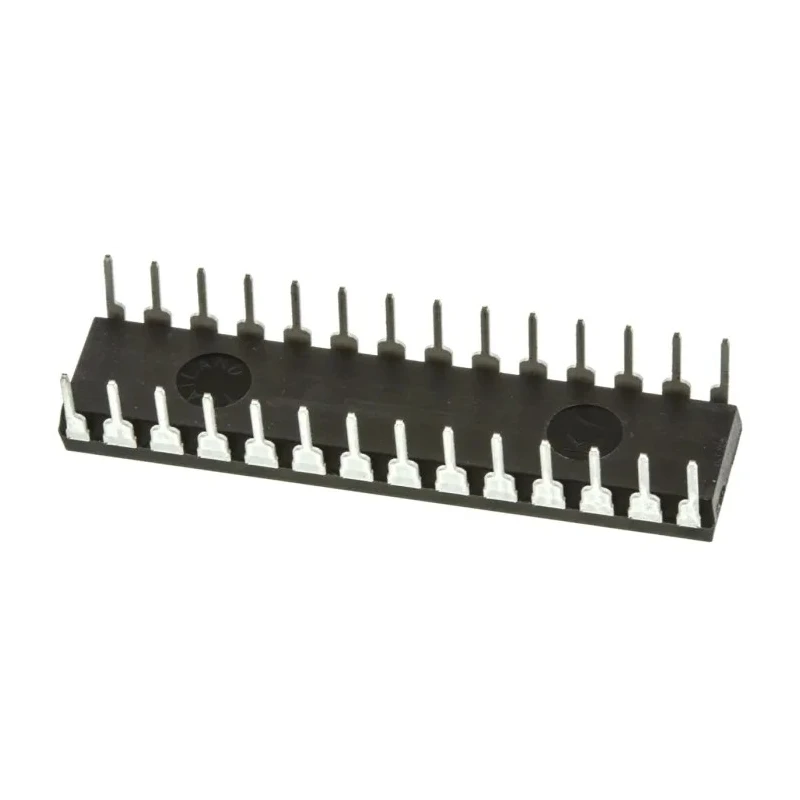

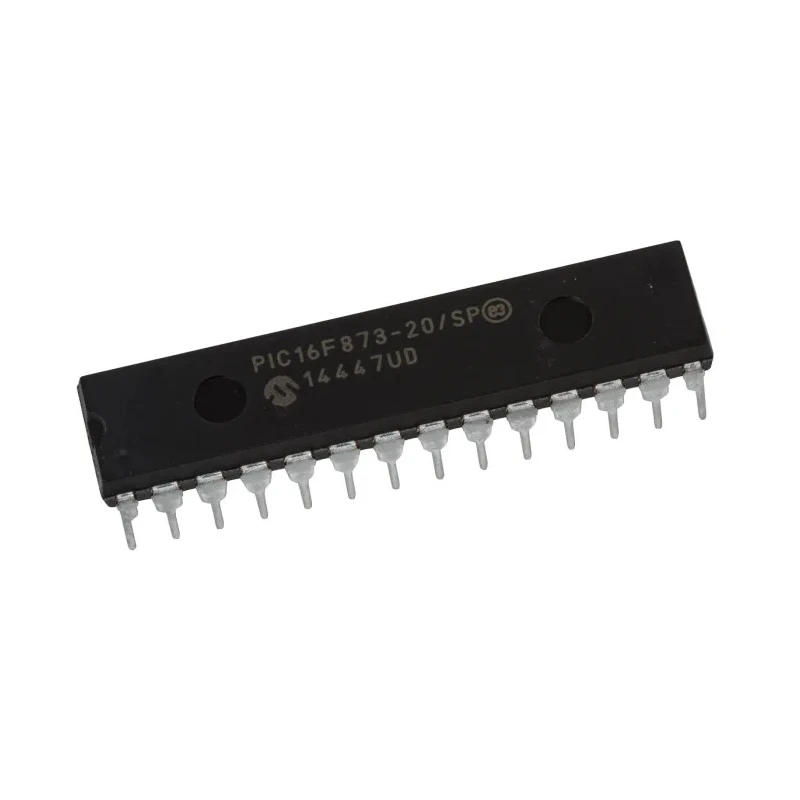

Microchip 8 bit PIC Microcontroller 20 MHz 14kB FLASH 28-Pin SPDIP PIC16F873-20/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC16F873-20/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 192bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with 8 bit PIC architecture providing efficient control.
- Features 14 kB of program memory using FLASH technology.
- Operates at a maximum clock speed of 20 MHz for rapid processing.
- Equipped with 22 programmable input/output pins in a 28-pin SPDIP package.
- Suitable for through-hole mounting applications.
- Includes 192 bit RAM and five 10-bit ADC channels for analog signal processing.
- Designed to operate within a voltage range of 2V to 5.5V.
- Supports multiple timers and serial communication peripherals like SPI, I2C, and USART.
Product Description
Microchip PIC16F873-20/SP is an 8-bit PIC microcontroller based on the Microchip Mid-Range RISC core architecture. It operates at a maximum frequency of 20 MHz and comes with 14 kB of FLASH program memory, supporting up to 5 MIPS processing speed for embedded applications.
This device is housed in a 28-pin SPDIP package suitable for through-hole mounting on printed circuit boards. It features 22 programmable I/O pins, 192 bits of RAM, and includes five 10-bit analog-to-digital converter channels, enabling precise analog signal interfacing.
The microcontroller supports multiple communication protocols including SPI, I2C, and USART, along with versatile timer modules useful for timing-based control tasks. It includes power management features such as Power-On Reset, Brown-Out Reset, and Watchdog Timer for robust operation in industrial and embedded environments.
Operating within a voltage range of 2V to 5.5V, the PIC16F873-20/SP delivers steady performance across standard automotive, industrial, and consumer electronic applications. It complies with RoHS standards, ensuring it meets environmental safety regulations.
Operates on an 8-level deep hardware stack with 35 instruction sets. Flash memory type program storage with 14kB capacity. Multiple timers and serial communication peripherals enhance functionality. Powerful ADC features suitable for sensor interfacing.
Broad temperature operating range from 0°C to 70°C. Ideal for industrial controls, consumer electronics, and automotive systems. Through-hole SPDIP 28-pin package for ease of prototyping and manufacturing. Maximum power dissipation of 1 watt ensures energy efficiency.
Comprehensive embedded features aiding complex programming and debugging tasks.
This microcontroller is well-suited for use in embedded systems development, including industrial automation, instrumentation, and consumer device applications. For further design assistance, developers can access extensive technical documentation and development tools provided by Microchip.
Explore more Microchip Microcontrollers and related electronic components at EnvMart to find the best solutions for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz, allowing for rapid processing capabilities.
It features a program memory size of 14 kB, utilizing FLASH technology for storage.
This microcontroller is equipped with 22 programmable input/output pins, providing flexibility for various applications.
The operating voltage range for the PIC16F873-20/SP is from 2V to 5.5V, ensuring compatibility with a variety of power sources.
The dimensions of this model are 35.18 mm in length, 7.49 mm in width, and 3.43 mm in height.
It comes in a 28-pin SPDIP package, suitable for through-hole mounting applications.
This microcontroller supports multiple communication protocols including SPI, I2C, and USART, enhancing its connectivity options.
The maximum power dissipation for the PIC16F873-20/SP is 1 watt, contributing to its energy efficiency during operation.
It operates within a temperature range of 0°C to 70°C, making it suitable for various environments.
The PIC16F873-20/SP includes five 10-bit analog-to-digital converter channels for precise analog signal processing.
This microcontroller is based on the Microchip Mid-Range RISC core architecture, which supports efficient control and processing.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
