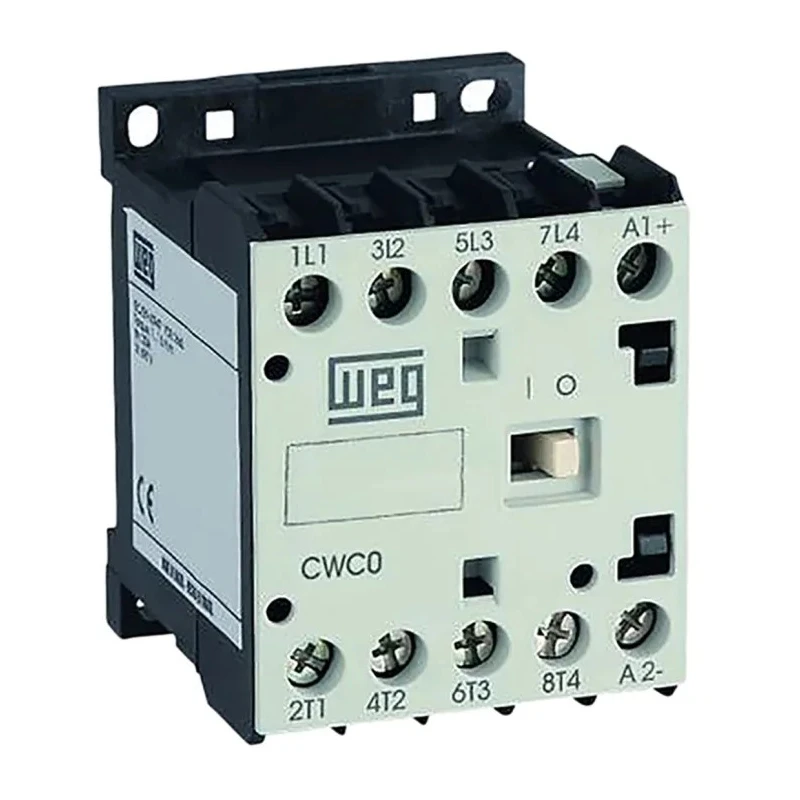

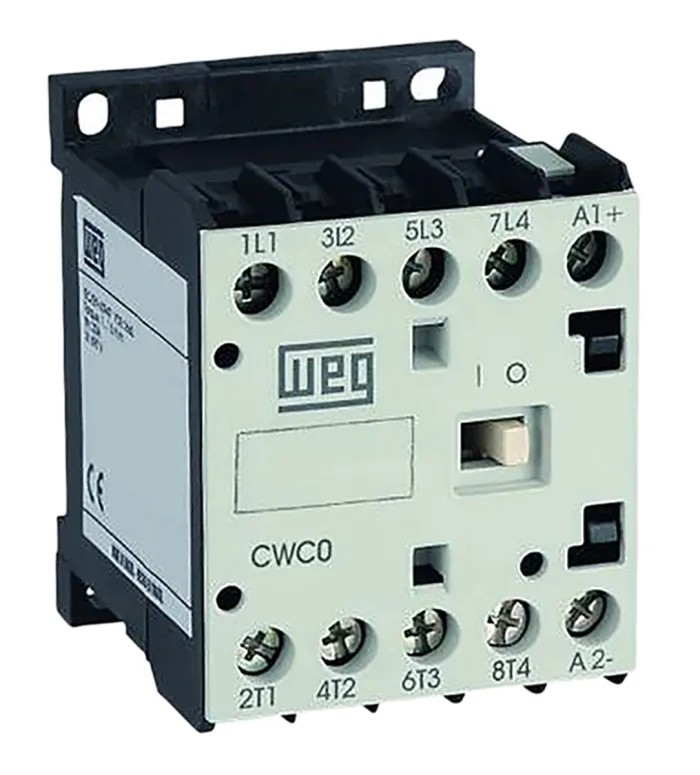

WEG Contactor 4-Pole 7 A 3.7 kW, 24V AC Coil, Screw Terminal DIN Rail Mount CWC07-00-40D02

Free Delivery in India | Lowest Global Shipping Charges

WEG Contactor 4-Pole 7 A 3.7 kW, 24V AC Coil, Screw Terminal DIN Rail Mount CWC07-00-40D02



Category Contactors Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control
Length	58mm
Model	CWC07-00-40D02
Depth	52mm
Width	45mm
Mount Type	DIN Rail
Series	CWC
Power Rating	3.7kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	24V ac
Normal State Configuration	4 NO
Contact Current	7A
Operational Current Ie	7A
Control Circuit Voltage Uc	24V ac
Contactor Application	Motor Control
Pole and Throw Configuration	4PST

Key Features

The contactor features a 4-pole configuration suitable for various motor control tasks.
It has a coil voltage rating of 24V AC for reliable operation.
Contact voltage is rated at 690V AC and can handle operational currents up to 7 A.
Mount type is DIN Rail with screw terminals for secure and easy installation.
Built for industrial applications with operational temperature range from -25°C to 55°C.
Compact design with dimensions 58mm length, 45mm width, and 52mm depth for space-saving installation.
Standard compliant with IEC, RoHS, and UL ensuring safety and reliability.
Incorporates four normally open (4 NO) contacts for versatile control.

Product Description

The WEG CWC07-00-40D02 is a high-quality 4-pole contactor designed for motor control applications, featuring a coil voltage of 24V AC and an operational current rating of 7 A, suitable for switching electric motors up to 3.7 kW power rating. It is constructed with screw terminals and engineered for DIN rail mounting, providing a compact and robust solution.

Manufactured to rigorous standards including IEC, RoHS, and UL, this contactor ensures robust performance across a wide temperature range from -25°C to 55°C. The device includes four normally open contacts (4 NO) and operates at a contact voltage of 690V AC, making it versatile for various industrial control systems.

Its compact dimensions (58mm L x 45mm W x 52mm D) contribute to space efficiency in control panels. The WEG CWC series is recognized for reliability and durability in demanding industrial environments.

This product is ideal for industrial automation, electrical control panels, HVAC systems, and manufacturing machinery where precise motor control is essential. The contactor features a 4-pole configuration suitable for various motor control tasks.

It has a coil voltage rating of 24V AC for reliable operation. Contact voltage is rated at 690V AC and can handle operational currents up to 7 A. Mount type is DIN Rail with screw terminals for secure and easy installation.

Built for industrial applications with operational temperature range from -25°C to 55°C. Compact design with dimensions 58mm length, 45mm width, and 52mm depth for space-saving installation. Standard compliant with IEC, RoHS, and UL ensuring safety and reliability.

Incorporates four normally open (4 NO) contacts for versatile control. Designed and manufactured in Brazil maintaining high quality standards. Explore more Contactors and control gear from WEG and other top brands on EnvMart to meet all your industrial electrical automation needs.
