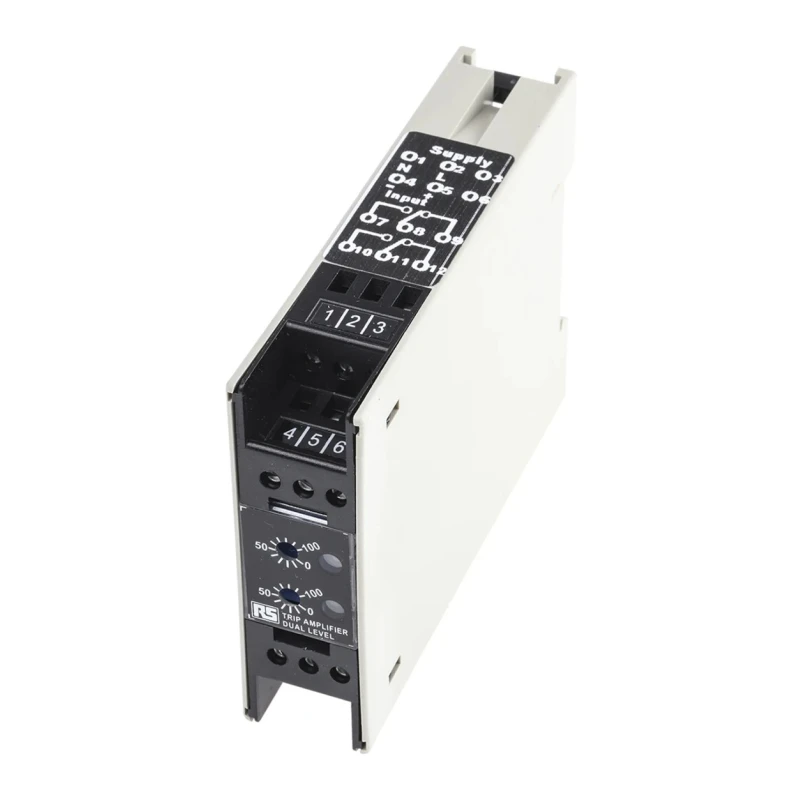

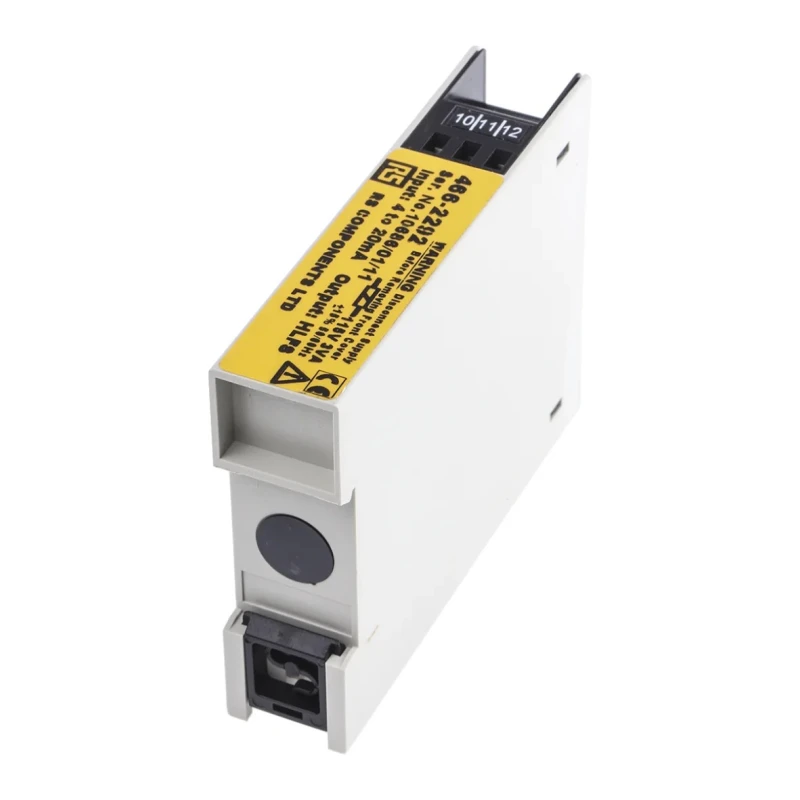

RS PRO Signal Conditioner with Current/Voltage Input and Current Output, 115V AC Supply 466-2292

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Signal Conditioner with Current/Voltage Input and Current Output, 115V AC Supply 466-2292

Name: RS PRO Signal Conditioner with Current/Voltage Input and Current Output, 115V AC Supply 466-2292
Brand: RS PRO
SKU: 187975
Price: 248.3 USD
Availability: InStock



Category Signal Conditioner Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Voltage	Input, Current Output, 115V ac Supply RS Stock No
Brand	RS PRO
Model	466-2292
IP Rating	IP20
Mount Type	DIN Rail
Series	RS PRO
Maximum Operating Temperature	45°C
Minimum Operating Temperature	0°C
Terminal type	Screw
Output Range	0 → 20 mA
Input Range	0 → 10 mA, -250 → +250
Supply Voltage	115V ac
Input Signal Type	Current/Voltage
Output Signal Type	Current
RS PRO Signal Conditioner, Current Input, Relay Output, 115V ac SupplyBrand	RS PRO

Key Features

Accepts both current and voltage input signals for versatile sensing.
Provides current output range of 0 to 20 mA for standard industry compatibility.
Equipped with 2 SPCO relays supporting up to 60W load for dual trip action control.
User-configurable high trip/low trip and fail-safe operation for customizable alarm conditions.
Bi-colour LED indicator shows stable and alarm states via green and red LEDs respectively.
DIN rail mountable for easy installation in electrical panels.
Operates effectively within 0°C to 45°C temperature range for industrial environments.
IP20 rated enclosure with screw terminal connections ensuring secure wiring.

Product Description

RS PRO 466-2292 Signal Conditioner is a reliable device designed to convert current and voltage input signals into standardized current outputs, facilitating precise monitoring and control in electrical and automation systems. The unit operates on a 115V AC supply and features a robust dual-level trip amplifier capable of triggering alarm conditions either above or below defined set points.

This model includes two SPCO relays capable of handling up to 60W loads, enabling dual trip action outputs that can be configured as fail-safe or non-fail-safe according to user requirements. The device is DIN rail mountable, helping seamless integration into control panels and switchboards in industrial environments.

Equipped with screw terminals and an IP20 rated enclosure, it ensures safe and secure installation and operation. The operational temperature range is from 0°C to 45°C, making it suitable for various manufacturing, HVAC, electrical, and automation applications. Bi-colour LED indicators visually communicate device status with green indicating stable operation and red signifying alarm activation.

Accepts both current and voltage input signals for flexible sensing options. Dual SPCO relay outputs with user-configurable trip points for enhanced control. DIN rail mount for straightforward panel integration. Fail-safe design options for safety-critical applications.

Bi-colour LED indicators for immediate status monitoring. Robust screw terminal connections ensuring durable wiring. IP20 ingress protection rating suitable for indoor installations. Operational temperature range from 0°C to 45°C for diverse industrial environments.

Manufactured in the United Kingdom, upholding quality and reliability standards.

This signal conditioner suits industrial, manufacturing, electrical distribution, HVAC system controls, and automation system monitoring. It supports efficient and dependable signal management critical for process control and fault management.
