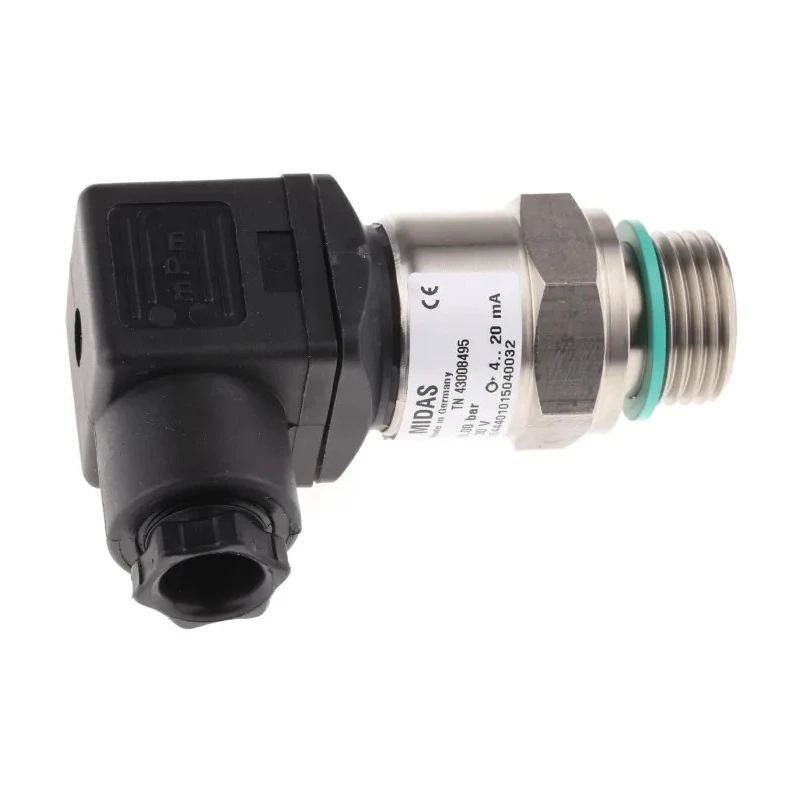

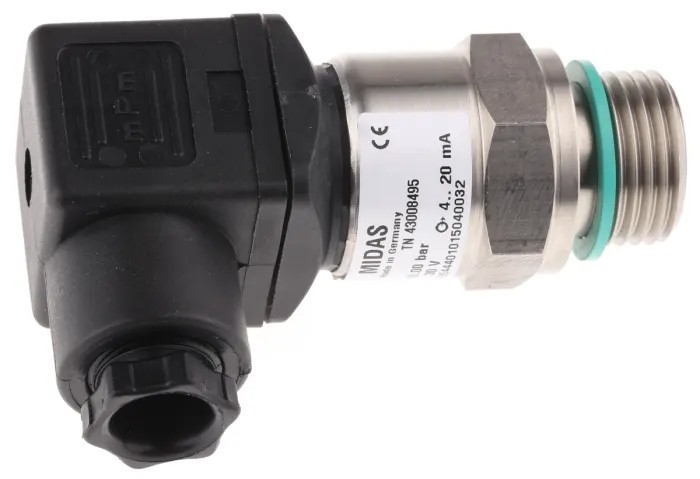

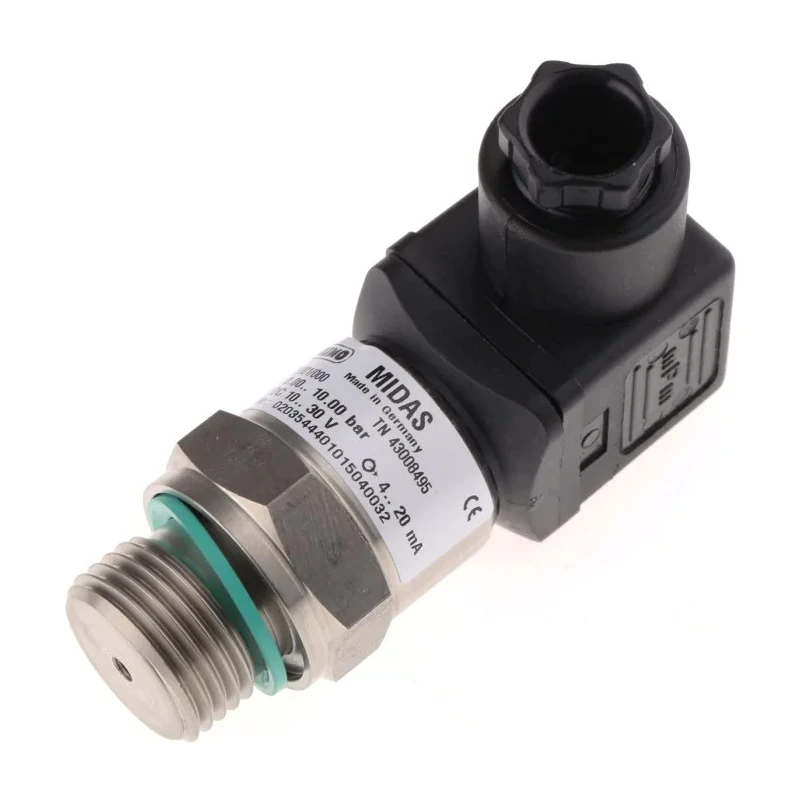

Jumo Series Pressure Sensor 0 bar to 10 bar, 0.5% Accuracy, 10V to 24V Supply Voltage 401001/000-459-405-523-20-601-61/000
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | 0.5 % |
| Brand | Jumo |
| Model | 401001/000-459-405-523-20-601-61/000 |
| IP Rating | IP65 |
| Housing Material | Stainless Steel |
| Series | JUMO |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | EHEDG, ANSI B 16.5, DIN EN 60751, DIN EN 837 |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 10V dc |
Key Features
- This sensor operates reliably between 10V and 24V DC supply voltage.
- Robust stainless steel housing ensures durability and corrosion resistance.
- The device features excellent chemical stability and high ceramic elasticity for minimal wear.
- IP65 rating provides robust protection against dust and water ingress.
- Designed for hydraulic and pneumatic systems with high reproducibility and stable performance.
- Operates within temperature range of 0°C to 80°C.
- Supports both absolute and relative pressure measurements.
- Protection against short circuit and reverse polarity enhances device longevity.
Product Description
Jumo 401001/000-459-405-523-20-601-61/000 pressure sensor is a high-performance device designed for measuring absolute and relative pressures from 0 bar up to a maximum of 10 bar with 0.5% accuracy. The sensor operates with a DC supply voltage ranging between 10V and 24V, making it suitable for various automation and control systems.
Constructed with a stainless steel housing, the sensor offers excellent chemical stability and high ceramic elasticity, which significantly reduces wear even under high pressure conditions. This ensures long-term reliability and precision in hydraulic and pneumatic system applications.
The IP65 rating provides robust protection against dust and water entry, enabling the sensor to perform reliably in demanding industrial environments. It is designed with protections against short circuit and reverse polarity to enhance operational safety and device lifespan.
Operating within a temperature range from 0°C to 80°C, this sensor conforms to recognized standards including EHEDG, ANSI B 16.5, DIN EN 60751, and DIN EN 837, underscoring its quality and compliance for industrial applications.
Its compact, durable design and precise measurement capabilities make it ideal for use in automation, process control, and monitoring within laboratory, manufacturing, and hydraulic/pneumatic systems.
This sensor operates reliably between 10V and 24V DC supply voltage. Robust stainless steel housing ensures durability and corrosion resistance. The device features excellent chemical stability and high ceramic elasticity for minimal wear.
IP65 rating provides robust protection against dust and water ingress. Designed for hydraulic and pneumatic systems with high reproducibility and stable performance. Operates within temperature range of 0°C to 80°C. Supports both absolute and relative pressure measurements.
Protection against short circuit and reverse polarity enhances device longevity. Manufactured in Germany adhering to standards including EHEDG, ANSI B 16.5, DIN EN 60751, and DIN EN 837. Ideal for industrial automation, control gear application, and precise process monitoring.
Discover the complete range of Jumo Pressure Sensors and advanced sensing solutions in EnvMart’s Electronics & Electricals category for superior industrial performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pressure sensor measures pressures from 0 bar to a maximum of 10 bar.
It has an accuracy of 0.5%.
The sensor operates with a DC supply voltage ranging from 10V to 24V.
The housing is made of stainless steel, ensuring durability and corrosion resistance.
It operates within a temperature range of 0°C to 80°C.
The sensor has an IP65 rating, providing protection against dust and water ingress.
It conforms to standards including EHEDG, ANSI B 16.5, DIN EN 60751, and DIN EN 837.
It supports both absolute and relative pressure measurements.
It includes protections against short circuit and reverse polarity to enhance operational safety.
It is designed for use in hydraulic and pneumatic systems, as well as automation and process control applications.
The sensor is manufactured in Germany.
Specific weight and dimensions are not provided; please refer to the manufacturer's specifications for detailed measurements.
