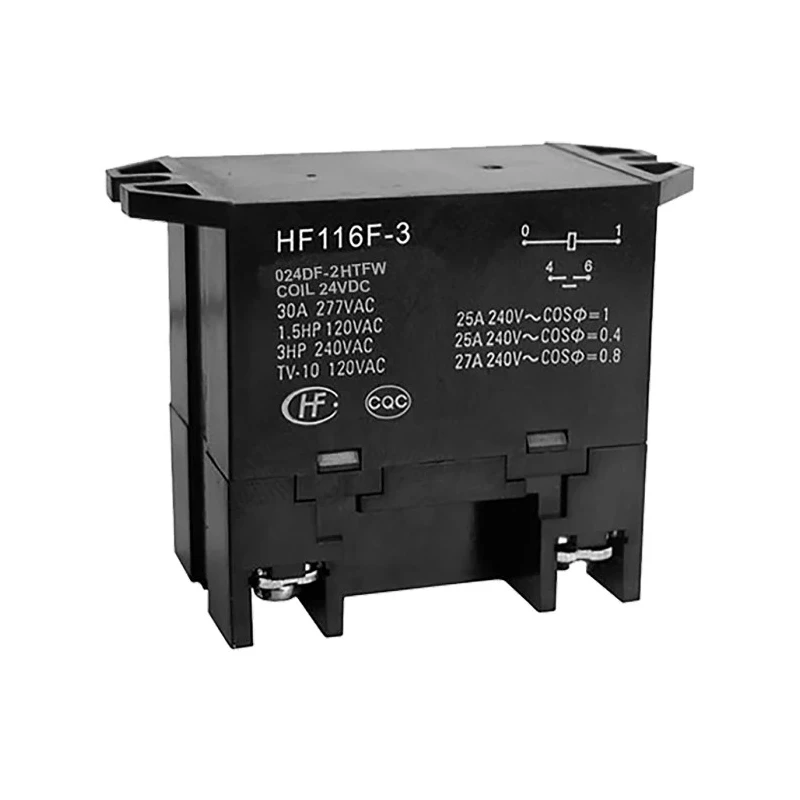

Hongfa Europe GMBH Flange Power Relay 24V dc Coil 25A Switching Current DPST HF116F-3/024DF-2HTFW

Free Delivery in India | Lowest Global Shipping Charges

Hongfa Europe GMBH Flange Power Relay 24V dc Coil 25A Switching Current DPST HF116F-3/024DF-2HTFW

Name: Hongfa Europe GMBH Flange Power Relay 24V dc Coil 25A Switching Current DPST HF116F-3/024DF-2HTFW
Brand: Hongfa Europe GMBH
SKU: 187462
Price: 17.38 USD
Availability: InStock



Category Power Relays Brand Hongfa Europe GMBH Condition New

Specifications

Country of Origin	China
Brand	Hongfa Europe GMBH
Height	51mm
Length	68mm
Model	HF116F-3/024DF-2HTFW
Width	32.9mm
Mount Type	Flange
Contact Material	Silver Alloy
Series	HF116F-3
Maximum Operating Temperature	70°C
Contact Configuration	DPST
Minimum Operating Temperature	-55°C
Switching Current	25A
Terminal type	Screw
Contact Resistance	100mΩ
Standards/Approvals	cULus, CQC
Coil Resistance	300Ω
Coil Voltage	24V dc
Switching AC Voltage	277V ac
Coil Power	1.9W

Key Features

This relay features a DPST contact configuration for versatile electrical switching.
Equipped with a flange mount type and screw terminal connections for secure installation.
Operates efficiently in temperatures ranging from -55°C to 70°C.
Silver alloy contacts and a contact resistance of 100mΩ ensure durable and low-loss switching.
Capable of switching up to 277V AC voltage and handling 6.9kVA of switching power.
Compact dimensions with length 68mm, width 32.9mm, and height 51mm facilitate integration in various control panels.
Compliant with cULus and CQC standards to meet safety and quality requirements.

Product Description

Hongfa Europe GMBH HF116F-3/024DF-2HTFW flange power relay is a miniature, high-power relay designed for industrial and electrical automation applications. It features a 24V DC coil that ensures stable operation with a coil resistance of 300Ω and coil power consumption of 1.9W.

This DPST (Double Pole Single Throw) relay uses silver alloy contacts providing excellent conductivity and corrosion resistance. Its screw terminal type facilitates secure wiring in flange mount housing, making it suitable for durable industrial installations.

The relay supports a maximum switching current of 25A and AC voltage handling up to 277V AC, with an impressive switching power rating of 6.9kVA. It operates reliably across a wide temperature range from -55°C minimum to 70°C maximum.

Physical dimensions are compact with a length of 68mm, width of 32.9mm, and height of 51mm, allowing for easy integration into control systems requiring space efficiency.

This product is certified under cULus and CQC standards, ensuring compliance with international safety and quality benchmarks, ideal for industrial automation, HVAC control, manufacturing, and electrical power management use cases.

This relay features a DPST contact configuration for versatile electrical switching. Equipped with a flange mount and screw terminals for secure and easy installation. Wide operating temperature range from -55°C to 70°C suitable for harsh environments.

Silver alloy contacts provide excellent conductivity and durability. High switching power capacity of 6.9kVA and 25A switching current. Compact dimensions enable easy incorporation into various equipment panels. Certified by cULus and CQC for international compliance.
