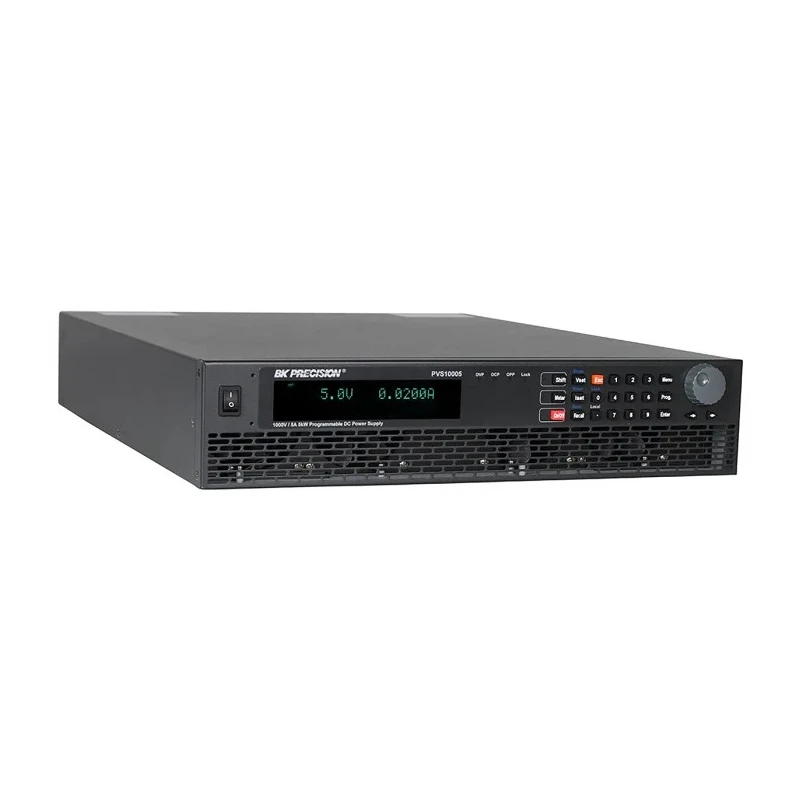

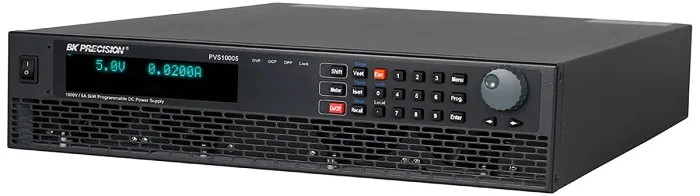

BK Precision Digital Bench Power Supply 1-Output 600 V 3 kW 8.5 A Max PVS60085MR

BK Precision PVS60085MR digital bench power supply delivers robust and precise DC power with a maximum output of 600 V, 3 kW power, and 8.5 A current capacity. Housed in a space-saving 2U form factor, it is engineered for bench testing environments, research and development laboratories, design verification, production test, and motor inverter testing.

This power supply features a multi-ranging design that allows flexible combinations of voltage and current up to its maximum rated power of 3000 W. The high resolution of 10 millivolts and 0.2 milliamps enables fine adjustments for sensitive testing requirements. The bright vacuum fluorescent display provides clear voltage and current readings, enhancing usability in various lighting conditions.

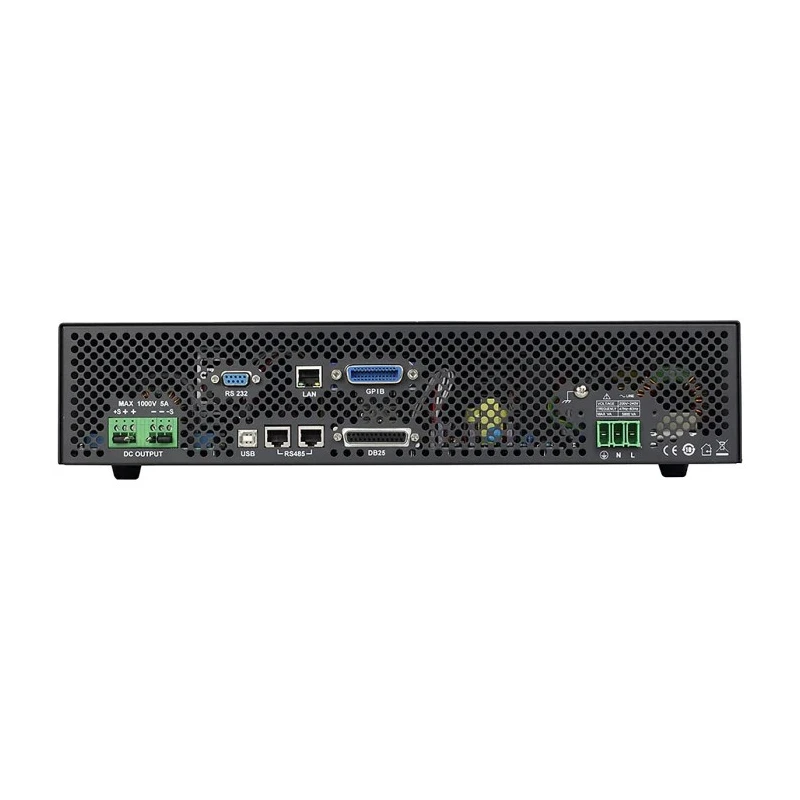

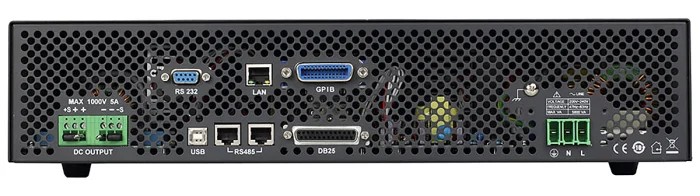

The instrument supports multiple remote communication interfaces including USB (virtual COM), RS232, GPIB, and LAN, all conforming to SCPI commands, facilitating integration into automated test systems. Additionally, it offers an external analog programming and monitoring interface which further expands its adaptability in complex setups.

A built-in solar array simulator (SAS) function allows the generation and storage of photovoltaic I-V curves with up to 16 programmable profiles, making it an excellent choice for renewable energy device testing. The fast transient response of 0.5 milliseconds improves performance in dynamic load conditions.

Other useful features include adjustable voltage and current rise and fall slopes, and a list mode that supports 9 user-defined programs each with up to 100 programmable steps for customized test sequences. The device operates reliably within a temperature range of 0°C to 40°C and uses a single-phase AC input with voltage ranging from 170 V to 265 V and a 3-pin plug.

Compact high power density 2U design. Multi-ranging output up to 3 kW and 600 V/8.5 A. High resolution digital output with bright VFD display. Multiple remote control interfaces including USB, RS232, GPIB, and LAN. Built-in solar array simulator function for PV testing.

Fast transient response of ≤ 0.5 ms. Adjustable voltage and current rise/fall times. List mode supports complex programmable sequences. Operates within 0°C to 40°C ambient temperature range. Flexible single-phase AC input voltage from 170 V to 265 V.

This power supply is ideal for industrial, laboratory, aerospace, automotive, renewable energy, and manufacturing testing applications requiring reliable, precise DC power. It supports ATE systems and motor inverter testing with excellent regulation and fast transient response characteristics. The device is supplied with user manual, power cord, test report, and calibration certificate for quality assurance.
