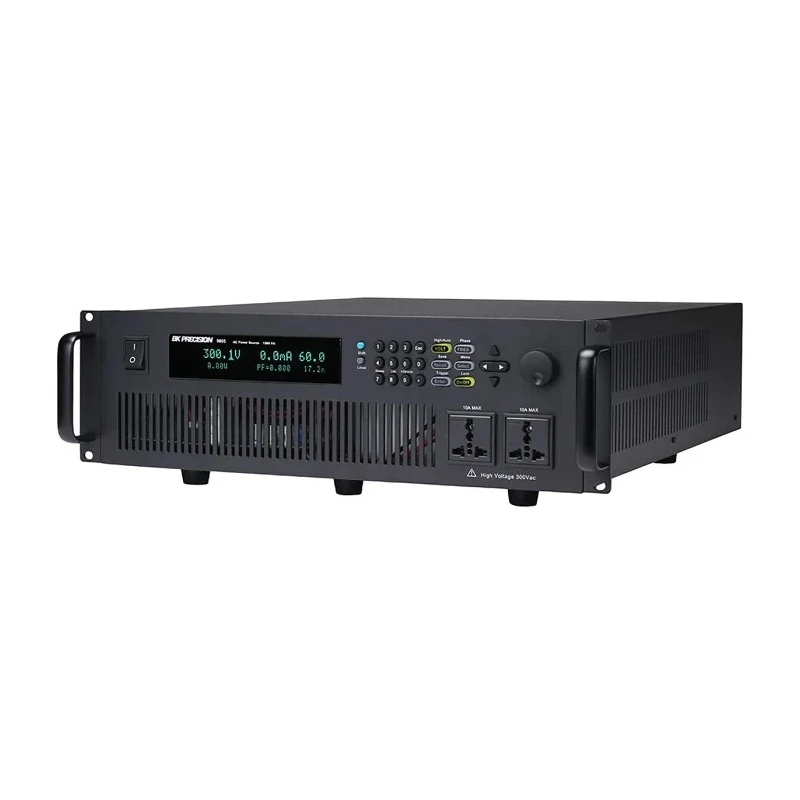

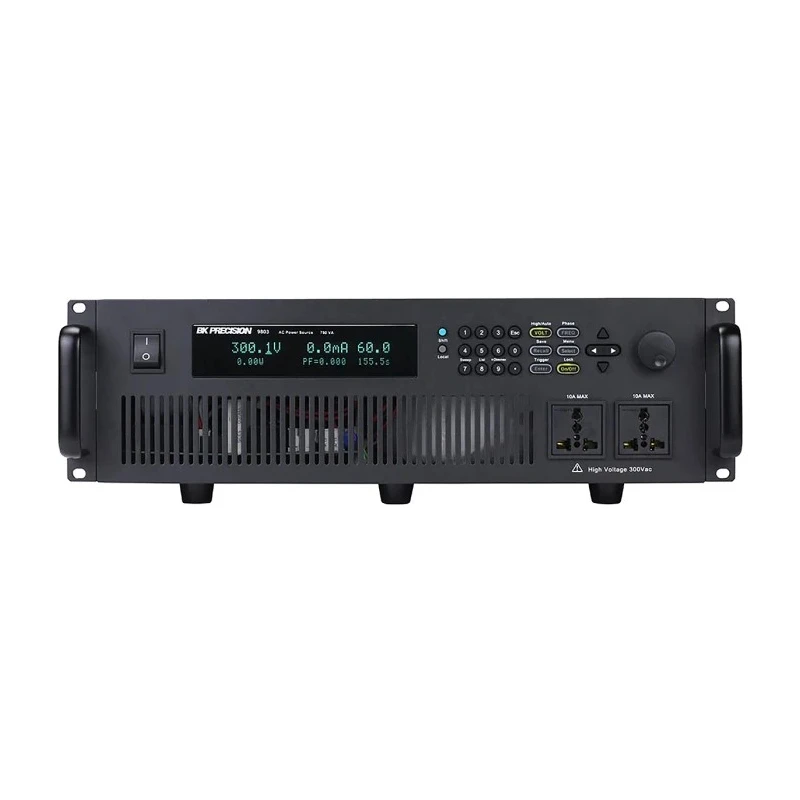

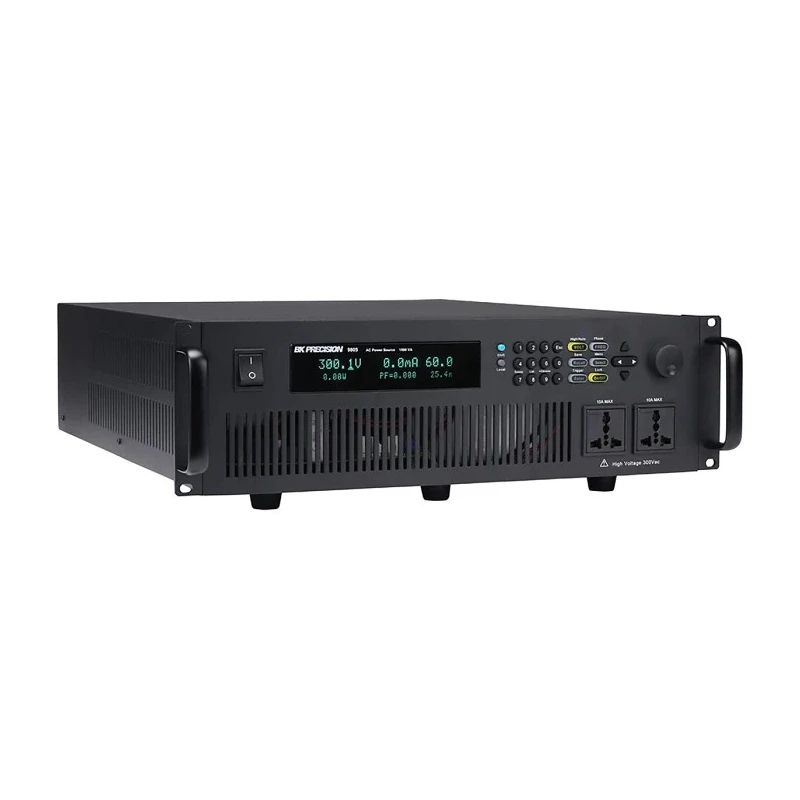

BK Precision Digital Bench Power Supply, 1 Output, 0 to 300 V, 6 A Max, 750 VA BK9803

BK Precision BK9803 is a high-performance digital bench power supply designed for precise AC power sourcing and measurement in industrial, laboratory, and R&D environments. Its single output delivers a variable voltage from 0 to 300 V with a high programming resolution of 0.1 V and supports a maximum current of 6 A, generating up to 750 VA of power.

This instrument features an adjustable frequency output ranging from 45 Hz to 500 Hz and enables phase angle control from 0 to 360 degrees, making it suitable for testing a broad range of electrical components such as transformers, TRIACs, and SCRs. The bright vacuum fluorescent display (VFD) provides real-time monitoring of voltage, current (RMS and peak), frequency, power factor, apparent and true power, and elapsed output time for comprehensive analysis.

The BK9803 includes power line disturbance (PLD) simulator and dimmer simulation to replicate common power grid faults and support dynamic testing of motors and LEDs. Its selectable autoranging for 150 V or 300 V operation allows continuous sweep mode across the voltage range, enhancing flexibility in device evaluation.

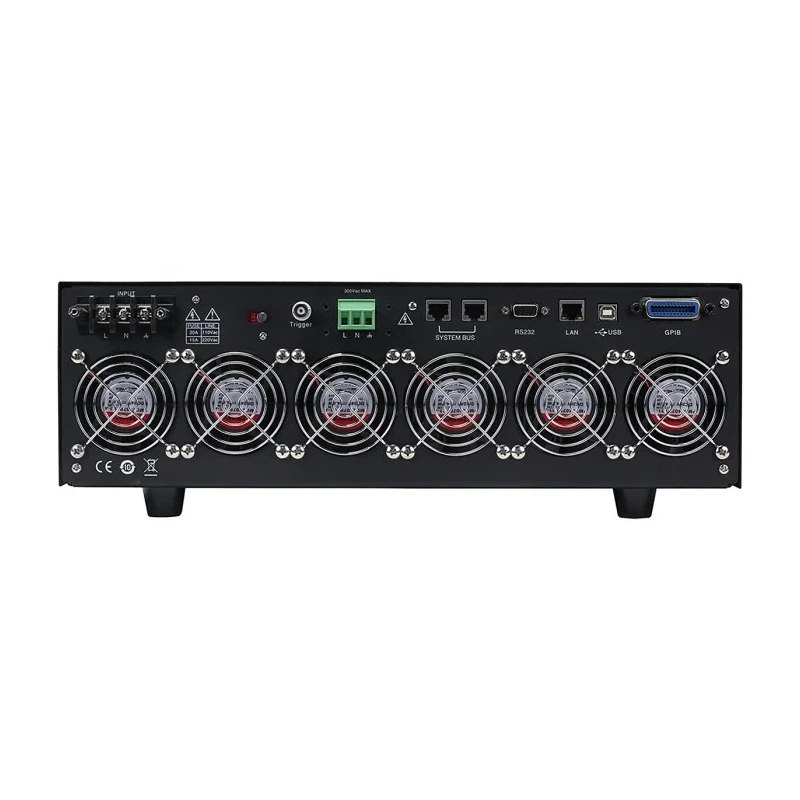

Connectivity options include standard USB (USBTMC-compliant), RS232, LAN, and GPIB interfaces, facilitating integration into automated test setups. The power supply is ideal for production, research and development, service testing, and pre-compliance verification in accordance with IEC61000 standards for voltage and frequency disturbances.

Supplied with an unterminated power cord, rackmount ears, handles, instruction manual, test report, and calibration certificate, this bench power supply supports reliable and repeatable testing in demanding industrial and laboratory applications.

Programmable AC power sourcing with low distortion output voltage up to 300 V. Wide frequency adjustment from 45 Hz to 500 Hz with phase angle control. Comprehensive digital display for multiple electrical parameters. Includes integrated simulation modes for power line disturbances and dimmer function.

Multiple standard communication interfaces for remote operation and automation. Robust construction with industry-standard accessories for rack mounting and handling. Explore more precision test and measurement equipment from BK Precision available at EnvMart for all your industrial and laboratory power supply needs.
