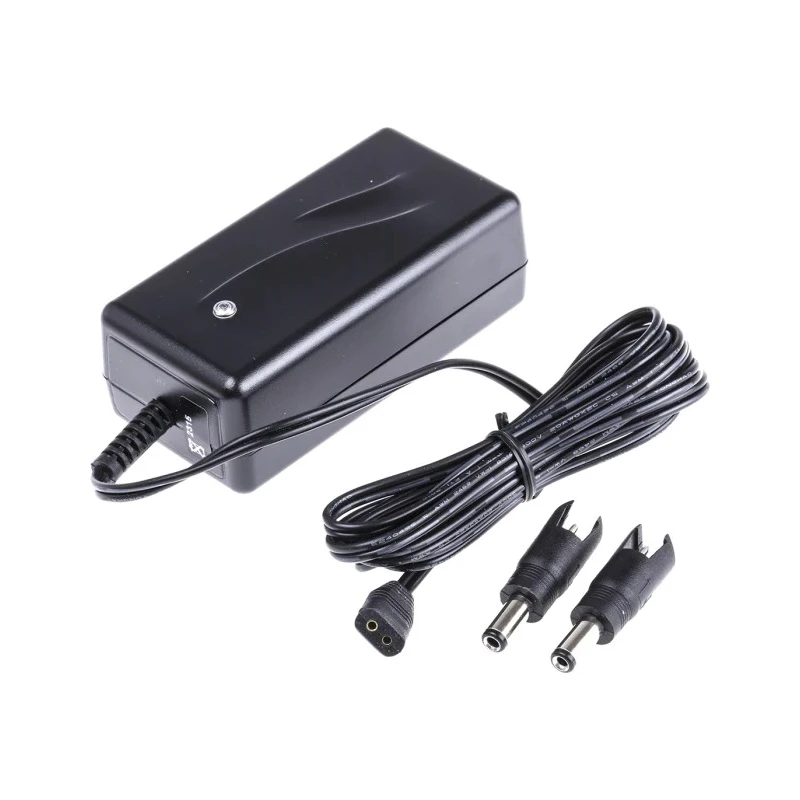

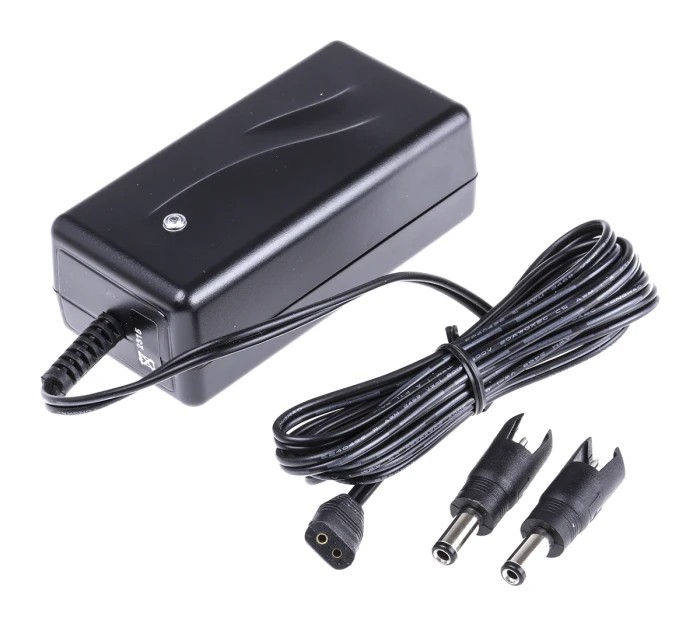

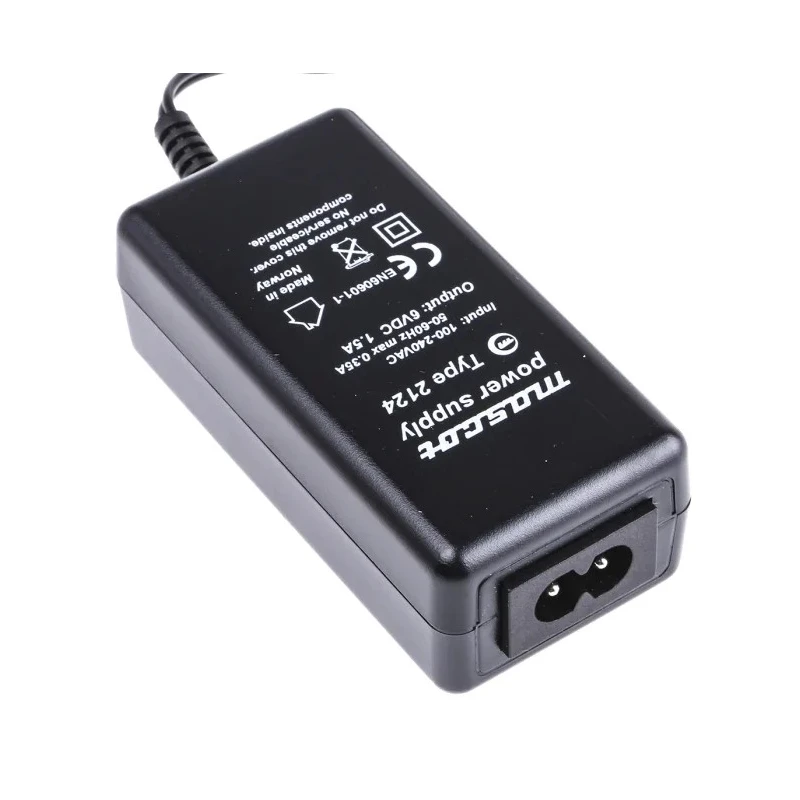

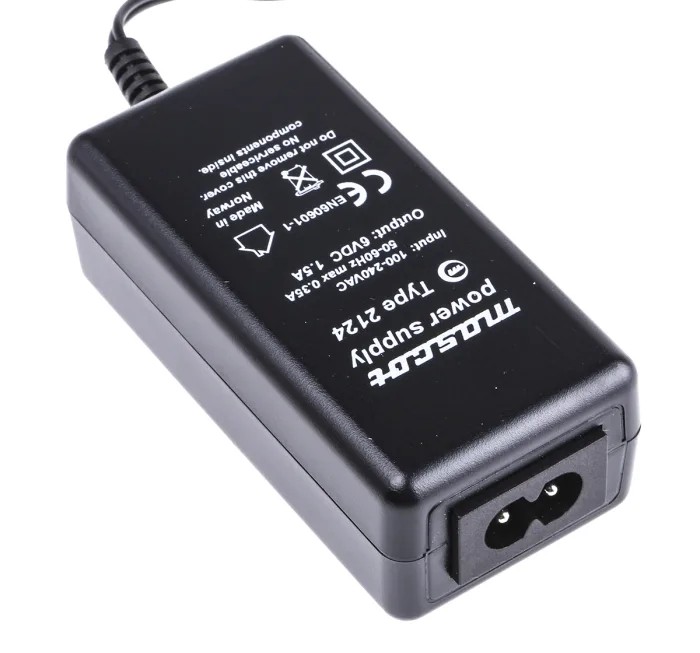

Mascot 9W 6V DC AC/DC Adapter with 2.5 x 5.5 x 12 mm and 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap Lock 2124000041

Mascot 2124000041 AC/DC Adapter is a robust switched mode power supply delivering 9 watts of output power at 6 volts DC. This desktop adapter is designed for medical and sensitive electronic applications requiring high reliability and compliance with strict standards.

Featuring dual output connectors, the adapter includes 2.5 x 5.5 x 12 mm and 2.1 x 5.5 x 12 mm female coaxial plugs with a snap lock mechanism, allowing for secure and versatile connection options. The output cable is approximately 1.8 meters in length, providing installation flexibility in various environments.

It accepts an input voltage range from 90V to 230V AC, operating efficiently at 83% to minimize energy waste. The device supports an adapter current of 1.5A with regulated output voltage, ensuring stable power delivery. It operates reliably within a temperature range of -20°C to 40°C, suitable for a wide range of conditions.

The physical dimensions are compact at 90 mm length, 45 mm width, and 32 mm depth, making it suitable for desktop use without occupying excessive space. Compliance with the EN 60601-1-2 medical safety standard and UL recognition for North America guarantees safety and electromagnetic compatibility.

This power supply includes over voltage and short circuit protection along with 4kV input/output isolation and EMC immunity to EN 50082-1 standards, making it highly reliable for critical applications.

The product is manufactured in Norway, adhering to stringent quality control measures. It comes supplied with 2 loose connectors with snap-lock features, providing four connection options for different coaxial plug sizes.

Applications include powering medical devices, industrial electronics, laboratory equipment, and other commercial or industrial settings requiring a dependable 6V DC power source. Explore an extensive range of AC/DC Adapters and power supplies on EnvMart to find compatible products that meet your specific technical requirements.

Includes 2.5 x 5.5 x 12 mm and 2.1 x 5.5 x 12 mm female coaxial plugs with snap lock. Single output with 6V DC voltage and 9W power capacity. Input voltage range from 90V to 230V AC with 1.5A adapter current. Operating temperature range from -20°C to 40°C.

Medical safety standards compliant (EN 60601-1-2) with UL recognized component. Output cable length approximately 1.8 meters. Compact dimensions: 90mm x 45mm x 32mm. Features overload, short circuit protection, and 4kV isolation.

High efficiency at 83% for energy saving. Manufactured in Norway with high quality standards.
