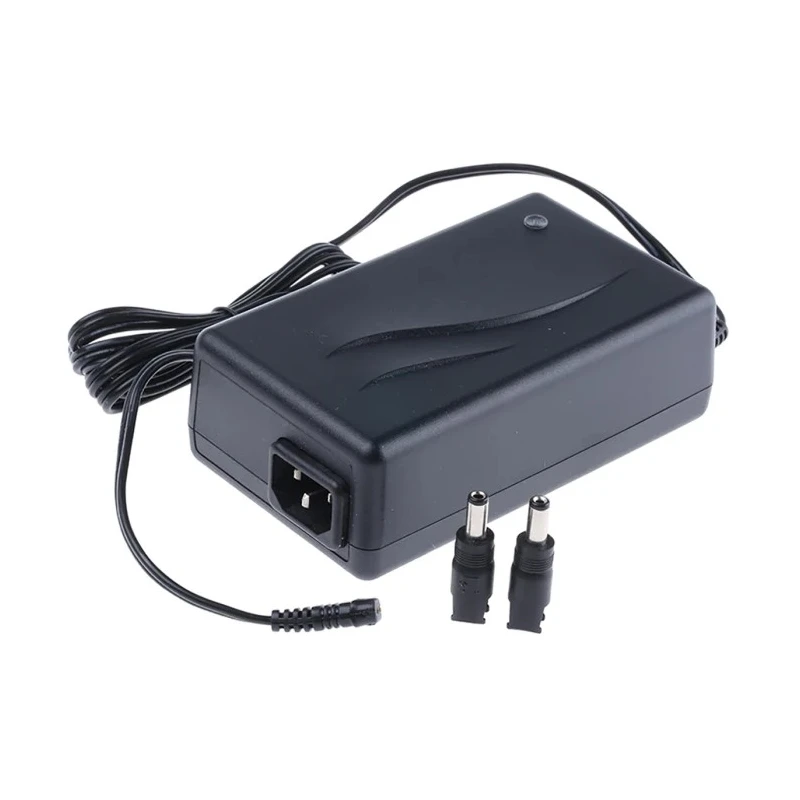

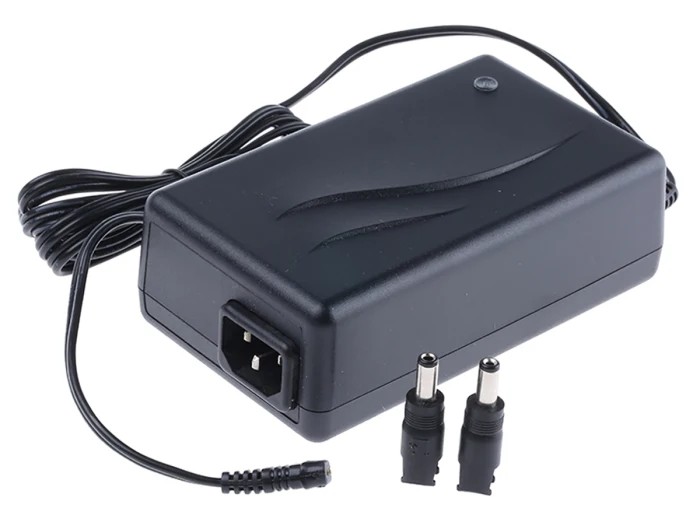

Mascot 3-Pin IEC Switched Mode Power Supply AC/DC Adapter 16V DC 60W with 2.5 x 5.5 x 12 mm and 2.1 x 5.5 x 12 mm 2020000045

Mascot 2020000045 AC/DC adapter is a medically approved switched mode power supply delivering 16V DC output at 60W power, ideal for medical and industrial applications requiring safe and reliable power sources. This desktop power supply features a 3-pin IEC input plug compatible with voltages from 90V AC to 230V AC and supports an adapter current of 3.75A.

The output utilizes two types of female coaxial plugs (2.5 x 5.5 x 12 mm and 2.1 x 5.5 x 12 mm) with snap-lock connectors, providing flexibility and secure connections for various devices. The power supply is designed for a single output with a cable length of 1.8 meters, allowing versatile positioning and ease of use.

It operates reliably in temperature conditions from -20°C to 40°C, achieving 80% energy efficiency with fully regulated output voltage that maintains ±0.5% load regulation. Safety features include over voltage and short circuit protection along with reinforced isolation of 4kV between input and output, meeting stringent medical standards EN 60601-1-2. Additionally, it complies with EMC immunity standards EN 50082-1 and carries UL recognition for selected voltage outputs.

Compact device dimensions (135mm length, 80mm width, and 44mm depth) make it suitable for desktop and medical equipment environments. The adapter is manufactured in Norway, ensuring high quality and conformity to international standards.

This adapter features 3-pin IEC plug input suitable for worldwide power compatibility. Equipped with dual output connectors: 2.5 x 5.5 x 12 mm and 2.1 x 5.5 x 12 mm female coaxial plugs with snap-lock for secure connection.

Cable length is approximately 1800mm for flexible installation. Operating temperature range between -20°C and 40°C ensures reliable performance under varying conditions. The unit offers 80% efficiency and fully regulated output voltage with ±0.5% load regulation accuracy.

Includes over voltage and short circuit protection for enhanced safety. Meets medical grade standards EN 60601-1-2 and is UL recognized in selected voltages. Designed with 4kV isolation between input and output and compliance with EMC immunity standards.

Compact dimensions: Length 135mm, Width 80mm, Depth 44mm for desktop use. Manufactured in Norway providing assured quality and reliability.

This power supply is well suited for medical, laboratory, industrial, and commercial applications that demand safe, efficient, and regulated DC power. It delivers durability, compliance to standards, and flexibility with its snap-lock coaxial connectors. Explore more AC/DC Adapters and switched mode power supplies for your specific technical requirements at EnvMart.
