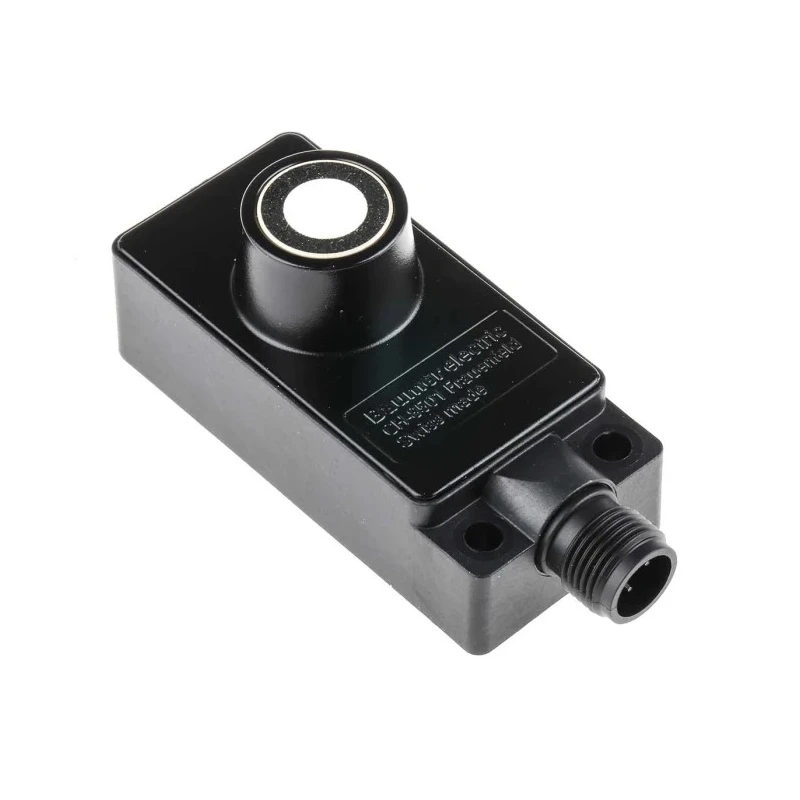

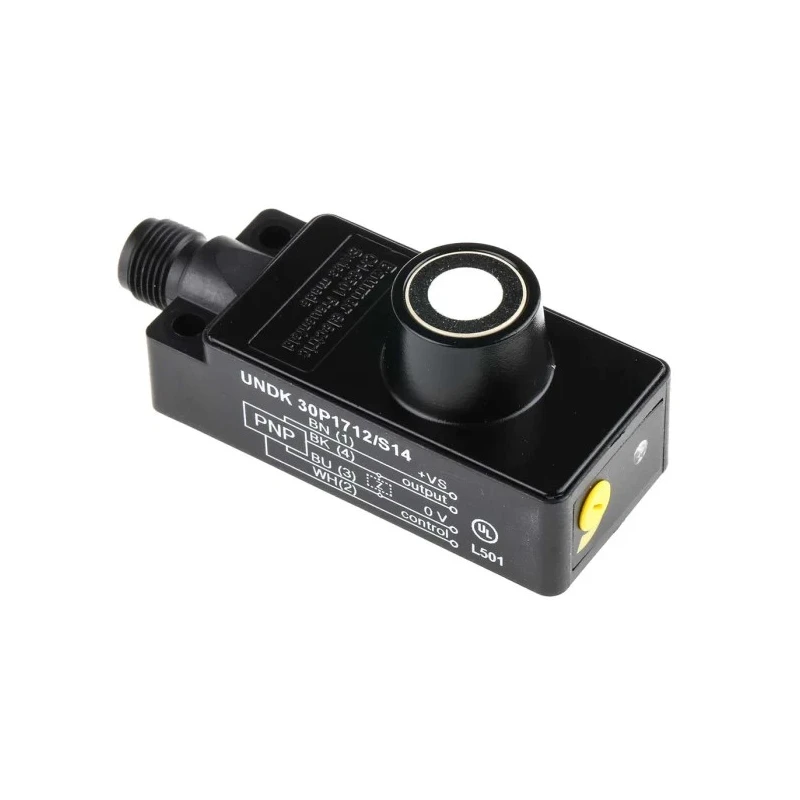

Baumer Ultrasonic Proximity Sensor Block Style M12 x 1 Thread, 65mm x 30mm x 31.1mm Dimensions, 200mA PNP UNDK 30P1712/S14
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Dimensions | 65(excl conn.) x 30 x 31 HWD mm |
| Response time | 25ms |
| Length | 65mm |
| Model | UNDK 30P1712/S14 |
| Depth | 31.1mm |
| IP Rating | IP67 |
| Width | 30mm |
| Housing Material | Die Cast Zinc |
| Output type | PNP |
| Series | UNDK 30P1712/S14 |
| Maximum Operating Temperature | 60°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M12 Connector |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 400mm |
Key Features
- Robust die cast zinc housing ensures high durability and protection.
- IP67 rated casing provides excellent ingress protection against dust and water.
- Compact dimensions of 65mm length, 30mm width, and 31.1mm depth enable flexible placement.
- Operates at a maximum supply voltage of 30V DC with a switching current of 200mA.
- PNP output type with a response time of 25ms for fast signal processing.
- Detection range of up to 400mm suitable for various automation applications.
- Operating temperature range from -25°C to +60°C supports diverse environments.
- M12 connector terminal type simplifies electrical connections.
Product Description
Baumer UNDK 30P1712/S14 Ultrasonic Proximity Sensor is designed for industrial automation applications requiring precise object detection and measurement. This block-style sensor features a thread size of M12 x 1, allowing for secure mounting and integration into automated control systems. The sensor’s compact size - 65mm length excluding connector, 30mm width, and 31.1mm depth - facilitates installation in constrained spaces without sacrificing performance.
The robust die cast zinc housing provides mechanical strength and excellent resistance to harsh industrial conditions, while the IP67 ingress protection rating ensures reliable operation even in dusty or wet environments. Capable of detecting objects up to 400mm away, the sensor operates on a DC supply voltage up to 30V, delivering a switching current of 200mA via a PNP normally open output.
With built-in LED indicators and adjustable sensitivity through a potentiometer, users can fine-tune sensor performance for specific applications. Response time of 25ms allows for timely detection signals, essential for fast-moving processes. Additional features including short circuit and reverse polarity protection contribute to long service life and reduced maintenance.
This Baumer proximity sensor is widely applicable in industrial, manufacturing, laboratory, and automation contexts where non-contact object detection is critical. It supports efficient machinery automation, quality control, and process monitoring.
Robust die cast zinc construction ensuring durability. Compact block form with IP67 protection rating. Reliable operation from -25°C to +60°C ambient temperatures. Sensitivity adjustable via potentiometer. PNP normally open output with LED status indication.
Fast 25ms response for dynamic sensing requirements. M12 connector for secure and easy wiring. Designed for industrial automation and control gear.
Explore a wide selection of Baumer sensors and accessories in EnvMart’s dedicated Sensors category for engineers and automation specialists seeking precision and durability in sensor technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is up to 400mm.
The dimensions are 65mm in length (excluding the connector), 30mm in width, and 31.1mm in depth.
It provides a PNP output type, which is normally open.
The response time is 25ms, allowing for fast signal processing.
The operating temperature range is from -25°C to +60°C.
It uses an M12 connector terminal type for electrical connections.
The maximum supply voltage is 30V DC.
The housing is made from die cast zinc, providing mechanical strength.
Yes, it has an IP67 rating, ensuring protection against dust and water.
It includes short circuit and reverse polarity protection to enhance safety and reduce maintenance needs.
This model is manufactured in Switzerland.
It is suitable for various industrial automation applications requiring precise object detection and measurement.
