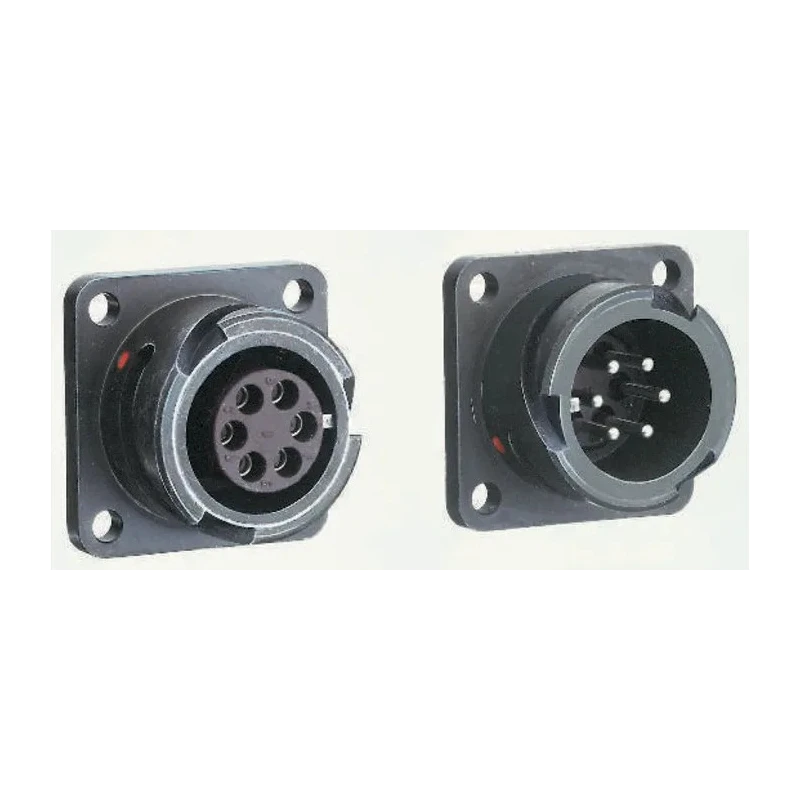

Amphenol Limited MIL Spec Circular Connector 7 Contacts 23A 900V ac Brass Straight 24 Shell Wall Mount 97B-3100A-24-2S

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited MIL Spec Circular Connector 7 Contacts 23A 900V ac Brass Straight 24 Shell Wall Mount 97B-3100A-24-2S

Name: Amphenol Limited MIL Spec Circular Connector 7 Contacts 23A 900V ac Brass Straight 24 Shell Wall Mount 97B-3100A-24-2S
Brand: Amphenol Limited
SKU: 185801
Price: 62.68 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	900V ac
Brand	Amphenol Limited
Colour	Olive
Orientation	Straight
Current	23A
Model	97B-3100A-24-2S

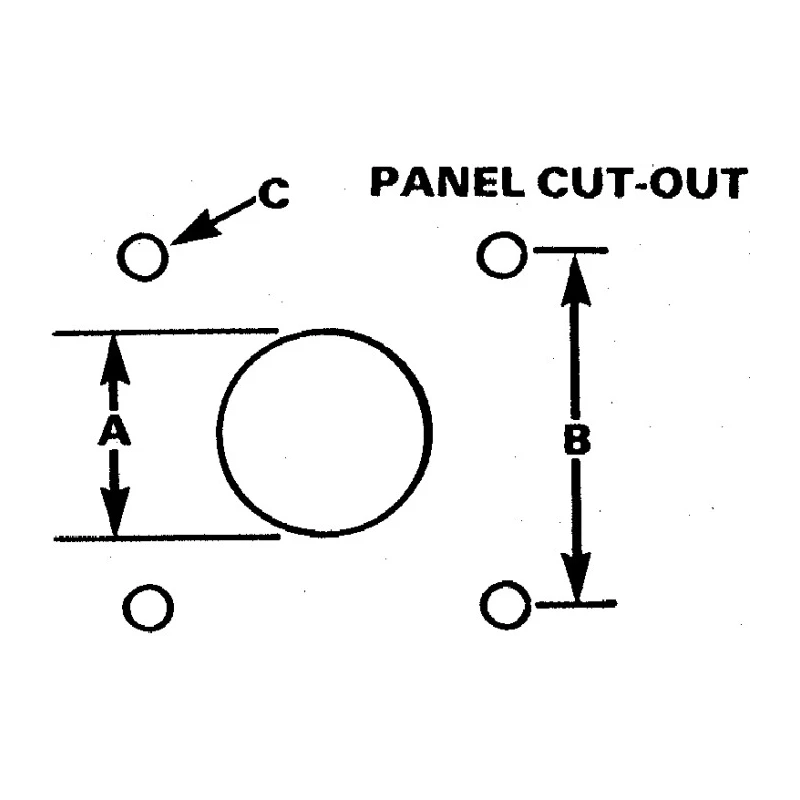

Mount Type	Wall Mount
Housing Material	Aluminium Alloy
Contact Material	Brass
Series	97B
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Silver
Number of Contacts	7
Contact Gender	Female
Connector Gender	Female
Shell Size	24
Military Standard	MIL-DTL-5015
Mating Type	Bayonet
Connector Size	Standard
Shell Plating	Olive Drab Cadmium

Key Features

Rated for 23A current and 900V AC voltage operation.
Constructed with durable aluminium alloy housing with olive drab cadmium plating.
Wall mount type with bayonet mating for secure connection.
Operates reliably from -55°C to 125°C temperature range.
Solder termination type for strong electrical contact.
Series 97B with size 24 shell and standard straight orientation.
Complies with MIL-DTL-5015 military standard.
Includes silver-plated brass contacts with strain relief for durability.

Product Description

Amphenol Limited 97B-3100A-24-2S is a MIL Spec Circular Connector designed for industrial and military applications requiring reliable, durable electrical connection. Featuring 7 female contacts fabricated from brass with silver plating, this connector supports currents up to 23A and voltages up to 900V AC.

The connector shell is constructed from aluminium alloy with an olive drab cadmium finish providing excellent corrosion resistance. It is a wall mount type connector with a bayonet mating system ensuring secure and fast locking. The strain relief feature enhances cable stability and connection durability.

Designed to operate reliably in extreme conditions, it supports a temperature range from -55°C minimum to 125°C maximum. Termination is by solder bucket contacts providing strong mechanical and electrical joints.

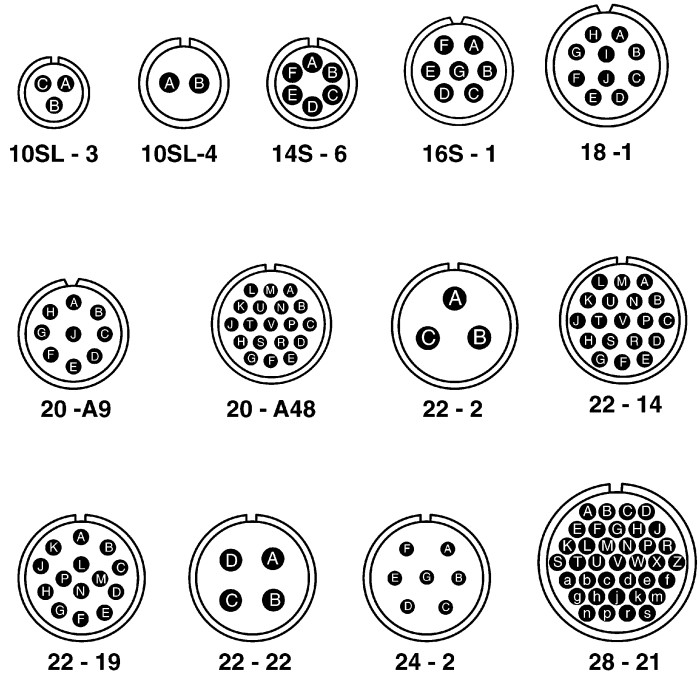

This model belongs to Amphenol's 97B series which includes solder type receptacles available in various sizes. The size 24 shell accommodates 7 contacts of size 12, suitable for rugged industrial environments.

The connector conforms to MIL-DTL-5015 military standards and features cable shells with ergonomic finger grips facilitating handling and installation. Applications include aerospace, military, industrial controls, and ruggedized electronic devices requiring dependable connections in harsh environments.

Rated current and voltage ensure compatibility with demanding electrical systems. High-quality materials and plating provide corrosion resistance and longevity. Strain relief and bayonet coupling enhance mechanical reliability.

Wide temperature operating range suits industrial and defense use cases. Standardized dimensions and military certifications assure interoperability.

This product is manufactured in India and is supplied new by Amphenol Limited. It is ideal for engineers and technicians specifying MIL Spec circular connectors for control panels, power distribution, and industrial signal connectivity.
