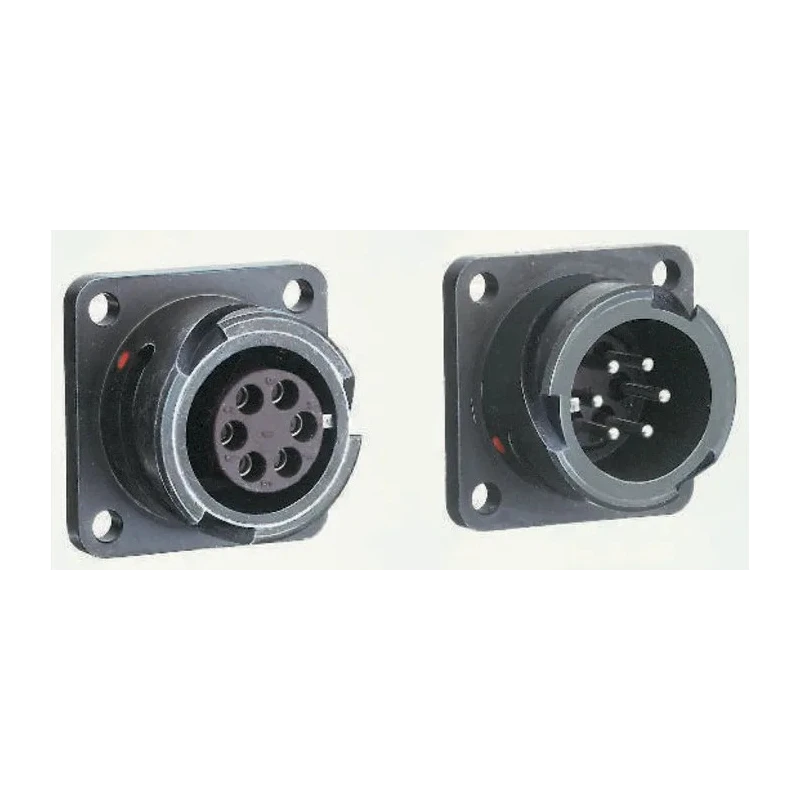

Amphenol Limited Brass Straight 19 Way Wall Mount MIL Spec Circular Connector Female Olive 2000V 13A 97B-3100A-20-A48P

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited Brass Straight 19 Way Wall Mount MIL Spec Circular Connector Female Olive 2000V 13A 97B-3100A-20-A48P

Name: Amphenol Limited Brass Straight 19 Way Wall Mount MIL Spec Circular Connector Female Olive 2000V 13A 97B-3100A-20-A48P
Brand: Amphenol Limited
SKU: 185786
Price: 108.87 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	2000V
Brand	Amphenol Limited
Colour	Olive
Orientation	Straight
Current	13A
Model	97B-3100A-20-A48P
Mount Type	Wall Mount
Housing Material	Aluminium Alloy
Contact Material	Brass
Series	97B
Termination Type	Solder
Contact Plating	Silver

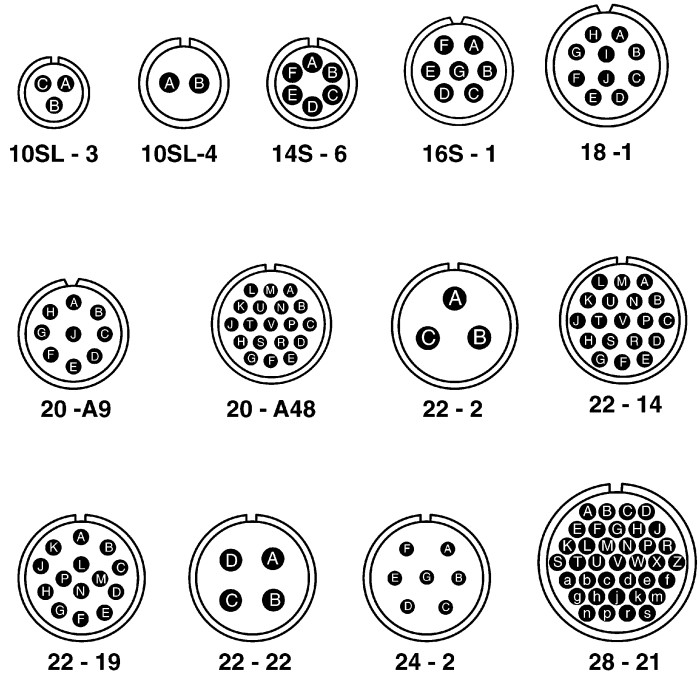

Number of Contacts	19
Contact Gender	Male
Connector Gender	Female
Shell Size	20
Military Standard	MIL-DTL-5015
Mating Type	Bayonet
Connector Size	Standard
Shell Plating	Aluminium Alloy

Key Features

Constructed with a brass body and aluminium alloy shell for corrosion resistance.
Features 19 male contacts rated for 13A current and 2000V voltage.
Designed with a bayonet mating type and solder termination for secure connections.
Wall mount installation with straight orientation supports easy integration.
Conforms to MIL-DTL-5015 military standard ensuring rugged performance.
Olive color with aluminium alloy plating and silver plated contacts enhances longevity.
Equipped with strain relief to protect against cable damage.
Suitable for industrial, military, and aerospace use requiring high reliability.

Product Description

Amphenol Limited 97B-3100A-20-A48P MIL Spec Circular Connector is a brass straight 19 way wall mount connector designed for challenging industrial and military environments. Operating at 2000 volts and 13 amps, it offers secure, durable connectivity with a bayonet coupling type and solder termination suited for chassis mounting. This connector features an aluminium alloy shell finished in olive drab color for corrosion resistance and robustness.

Manufactured to MIL-DTL-5015 standards, this wall mount circular connector has 19 male contacts made of brass with silver plating for excellent conductivity and reliability. The connector’s strain relief mechanism protects cables against wear and tear, making it ideal for rugged industrial, laboratory, aerospace, and military applications requiring secure and long-lasting electrical connections.

The series 97B design allows intermateability with industry-compliant connectors and is optimized for space efficiency while ensuring ease of installation. The chassis sockets mate reliably with cable-mounting plugs ensuring stable signal and power transmission in critical systems.

Brass contact material with hard silver over nickel plating ensures electrical performance and durability. Aluminium alloy housing with olive drab finish provides environmental resistance and mechanical strength. Bayonet mating type secures quick and reliable connection with cable assemblies.

Solder bucket contacts facilitate solid termination suitable for industrial wiring practices. Complies with MIL-DTL-5015 and interconnects with BS 9522 F0032 specification connectors. Ideal for military, aerospace, industrial, and manufacturing electrical interconnections.

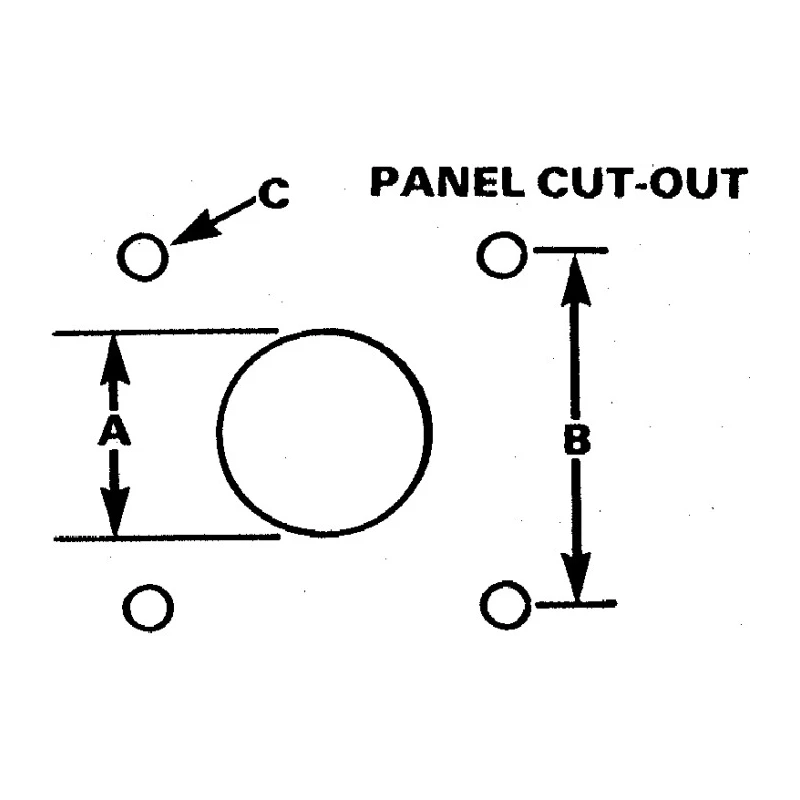

Wall mount orientation facilitates convenient panel installations.

This connector is a critical component for high-reliability power and signal applications in embedded systems, avionics, and defense electronics. For more specialized connector solutions for technical uses, explore the extensive selection of Mil Spec Circular Connectors at EnvMart.
