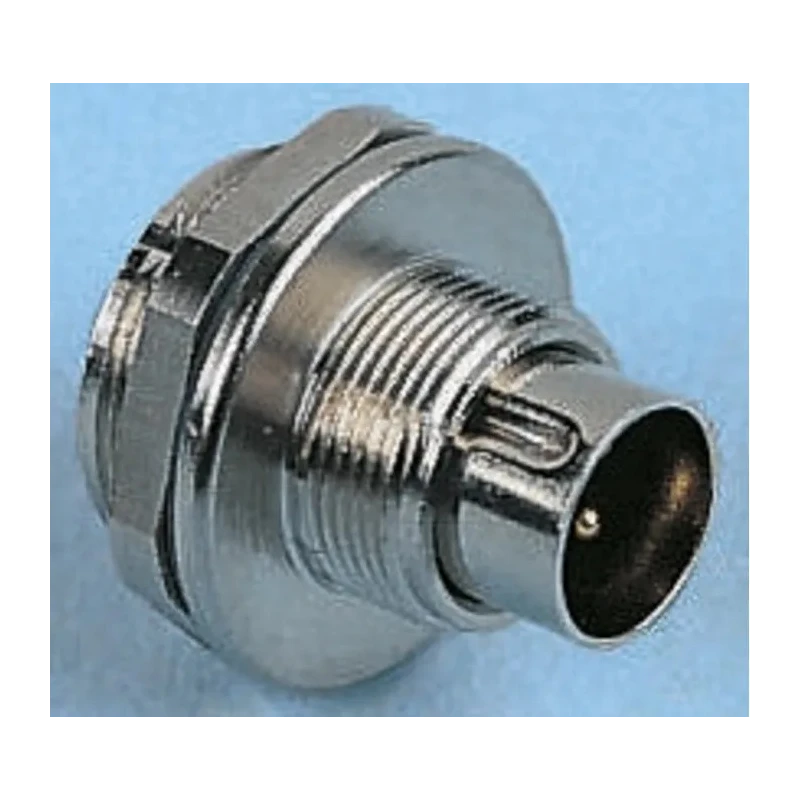

binder Circular Connector, 7 Contacts, Panel Mount, M9 Connector, Socket, Male, IP67, 725 Series 09-0423-00-07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 1A |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | 725 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | 11.5 mm |
| Connector Size | M9 |
| Plug/Socket | Socket |
| binder Circular Connector, 7 Contacts, Panel Mount, Socket, MaleBrand | Binder |
Key Features
- Features 7 electrical contacts enabling multiple connection points.
- Panel mount type ensures secure attachment to panels for stable installation.
- M9 size connector shell with a diameter of 11.5 mm.
- Operates at 125V and 1A current rating for reliable performance.
- IP67 rated housing provides complete protection against dust and water ingress.
- Contact plating uses gold for excellent conductivity and corrosion resistance.
- Constructed with brass housing and brass contact material for durability.
- Termination by solder bucket design simplifies cable connections.
Product Description
binder 09-0423-00-07 Circular Connector is a high-quality industrial circular connector designed for panel mount applications. This connector features 7 gold-plated contacts with male gender and a compact M9 shell size of 11.5 mm. Rated for 125V and 1A current, it provides highly reliable electrical connections in demanding settings.
The IP67 protection rating ensures the connector is fully dust-tight and water-resistant, making it suitable for harsh industrial and outdoor environments. The housing is crafted from durable brass to withstand mechanical stresses and corrosion, while the contact material and plating optimize conductivity and longevity.
This socket connector is equipped with a solder bucket termination system and a straight orientation that simplifies assembly and wiring tasks. Its operating temperature range from -40°C to 85°C allows it to perform reliably in a wide variety of climatic conditions.

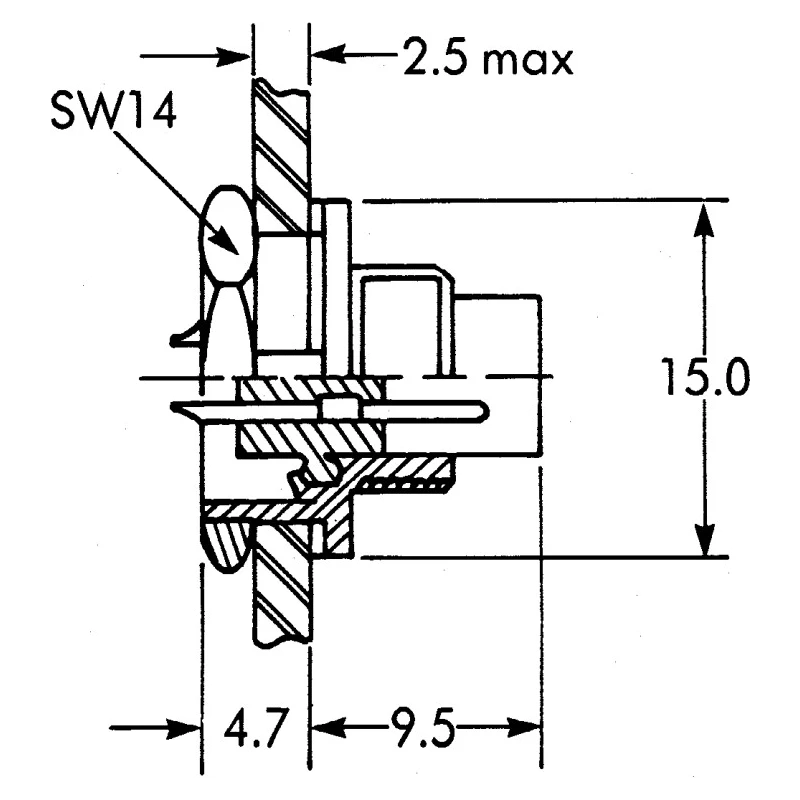

Panel mounts incorporate anti-rotation keying grooves, providing secure, stable installation either into pre-cut panel holes or a 12mm hole using appropriate flange kits. This connector is part of the binder 725 Series, known for robust metal front-end construction combined with plastic rear ends for cable clamping accommodating cables up to 5 mm diameter.
Features 7 electrical contacts enabling multiple connection points. Panel mount type ensures secure attachment to panels for stable installation. M9 size connector shell with a diameter of 11.5 mm. Operates at 125V and 1A current rating for reliable performance.
IP67 rated housing provides complete protection against dust and water ingress. Contact plating uses gold for excellent conductivity and corrosion resistance. Constructed with brass housing and brass contact material for durability.
Termination by solder bucket design simplifies cable connections. Operating temperature range from -40°C to 85°C allows versatility in environments. Straight orientation with solder termination enhances ease of wiring.
This binder Circular Connector is ideally suited for industrial, electronic, manufacturing, instrumentation, and automation applications that require rugged, reliable, and precise electrical connections. Its design balances durability and performance in portable and fixed equipment installations.
Explore more Industrial Circular Connectors and components on EnvMart for a comprehensive selection designed to meet diverse technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 125V.
It features 7 electrical contacts, enabling multiple connection points.
The current rating for this connector is 1A.
The connector has an IP67 rating, providing complete protection against dust and water ingress.
The housing and contact material are both made of brass, and the contacts are gold-plated for improved conductivity and corrosion resistance.
The shell size of this M9 connector has a diameter of 11.5 mm.
It uses a solder bucket termination design, which simplifies cable connections.
The operating temperature range for this connector is from -40°C to 85°C.
It is designed for panel mount applications, ensuring secure attachment to panels for stable installation.
This connector has a straight orientation, which enhances ease of wiring.
The country of origin for this connector is Germany.
This connector is suitable for industrial, electronic, manufacturing, instrumentation, and automation applications that require reliable electrical connections.
