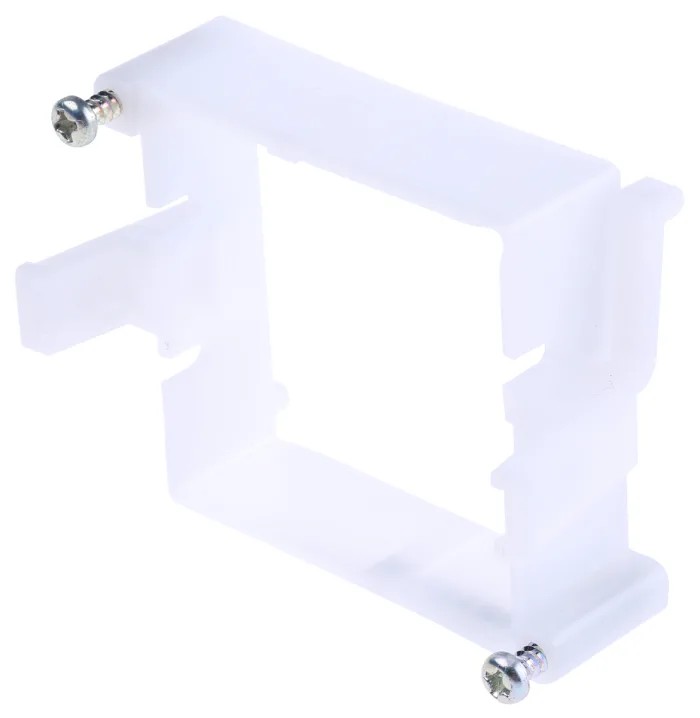

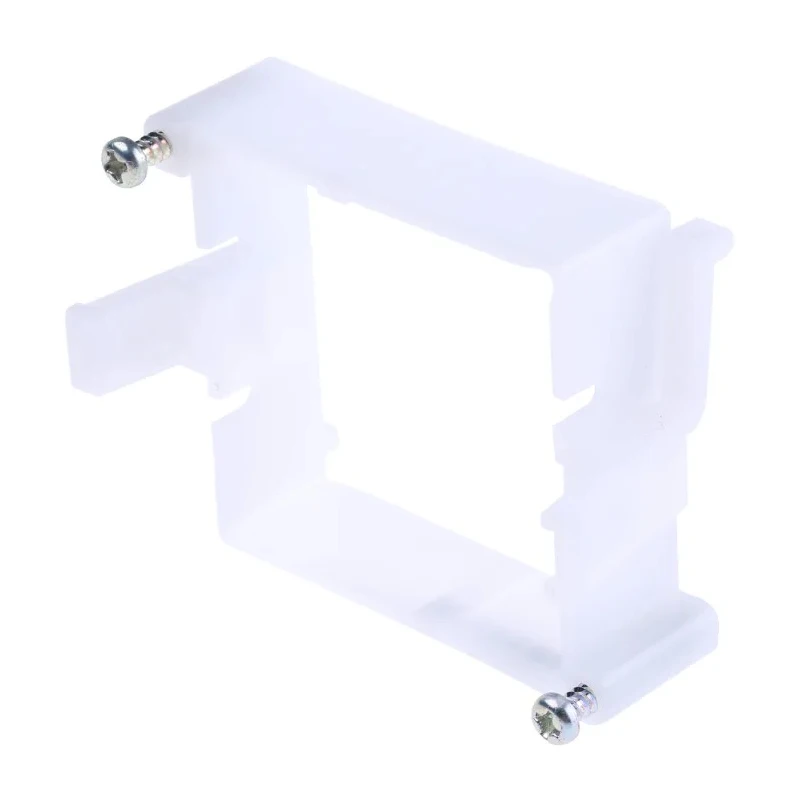

Panasonic Panel Kit Accessory for Use With PM4H-A Series Multi-Function Timer Relay

Panasonic AT8DA4 is a panel kit accessory tailored for the PM4H-A Series Multi-Function Timer Relay. This panel accessory enables integration with industrial and process control systems requiring timed operations. Designed for electrical and automation applications, it supports input voltages from 100 V to 240 Vac or 24 Vac/dc, offering wide compatibility.

The product features a broad timing range from 0.1 seconds to 500 hours, selectable across 16 time ranges, providing extensive flexibility for diverse timer applications. The relay includes 2 high-capacity changeover contacts rated at 5 A and 250 Vac, allowing high switching loads while maintaining safety and reliability.

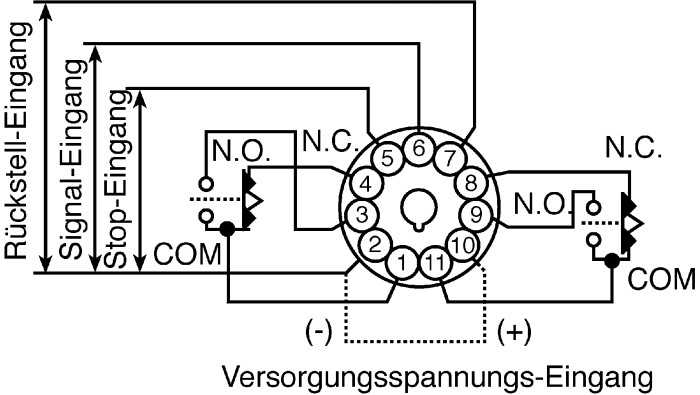

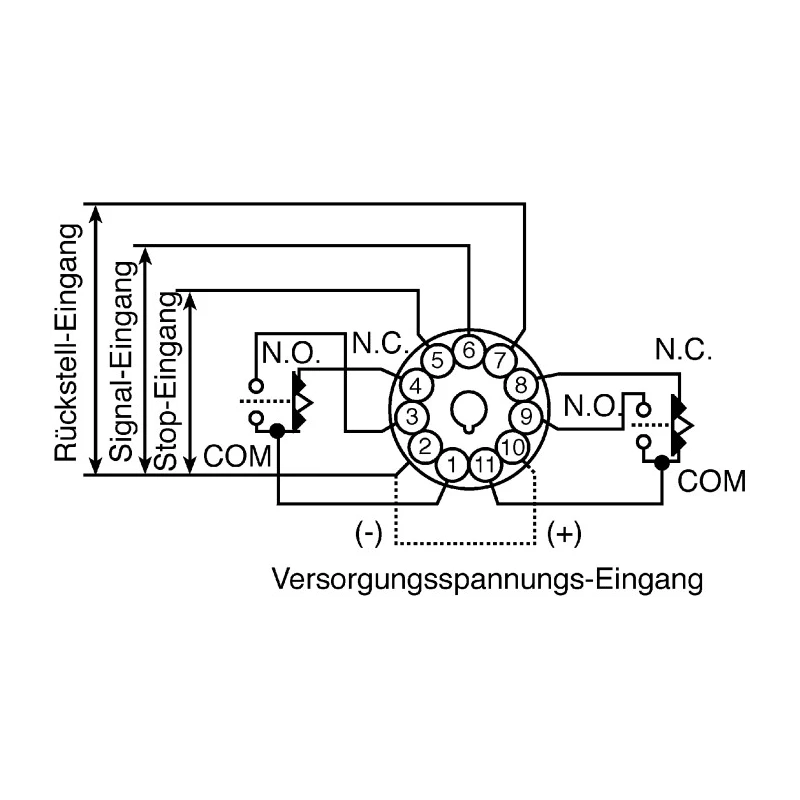

Three distinct control inputs - stop, signal, and reset - enable precise control over relay functions. The robust DIN housing and IP50 protection rating ensure durability in industrial environments. An 11-pin connection socket accessible from the back facilitates straightforward control panel assembly.

Users can select from eight different timing functions: delay-on energisation, delayed impulse-on, immediate impulse-on, changer functions, dropout delay, one-shot impulse delay, and impulse cycle modes. This versatility enables the device to cater to a broad range of control scenarios in manufacturing, automation, and process industries.

Manufactured in Japan, the AT8DA4 maintains Panasonic's standards of quality and reliability. Frames for front plate assembly are sold separately, enabling customization of panel configurations. This accessory is essential for enhancing the functionality and integration of PM4H-A Series timer relays in commercial and industrial electrical systems.

Compatible with PM4H-A Series Multi-Function Timer Relay. Wide input voltage support from 100 V to 240 Vac or 24 Vac/dc. Large timing range of 0.1 seconds to 500 hours with 16 selectable ranges. High switching capacity with 2 changeover contacts rated at 5 A, 250 Vac.

Three control inputs: stop, signal, and reset for operational control. Durable DIN housing with IP50 protection for industrial environments. 11-pin connection socket located at the back for easy assembly. Eight selectable timing functions for versatile automation needs.

Manufactured in Japan ensuring high quality and reliability. Explore the Panasonic range of industrial automation panel accessories on EnvMart for reliable and efficient control solutions.
