nVent SCHROFF EuropacPRO Series 6 U Rack Mount Chassis Aluminium 84 HP 295 mm Depth 24563443

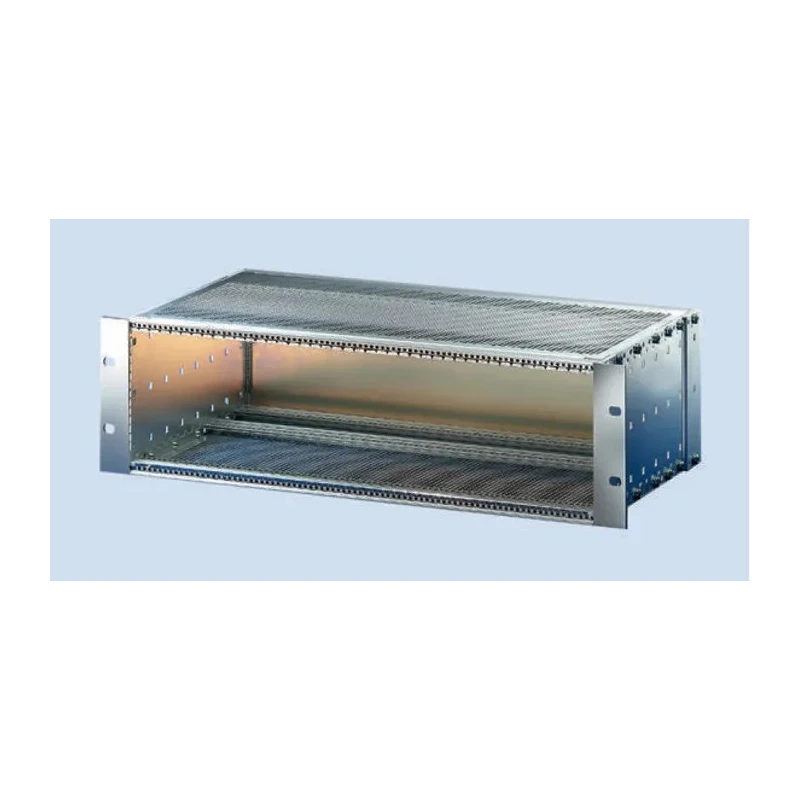

nVent SCHROFF 24563443 EuropacPRO Series 6 U Rack Mount Chassis is an industrial-grade aluminium enclosure designed for housing electronic equipment with a 6 U rack unit size, 84 HP horizontal pitch, and 295 mm depth. It features a natural aluminium colour finish and is constructed with high-quality anodised aluminium extrusions, side panels, and rear panel ensuring robust protection and excellent heat dissipation.

Typical shielding performance reaches 40 dB at 1 GHz when equipped with shielded front panels, suitable for electromagnetic compatibility sensitive applications. This chassis meets stringent international standards including IEC 60297-3/DIN 41 494-5 for rack dimensions, IEC 60950 for earthing, VG 95373/TI5 for shielding, and IEC 61587-1 for mechanical stress and vibration resilience. Its shock and vibration proof construction makes it ideal for use in industrial, laboratory, telecommunications, IT infrastructure, and automation environments.

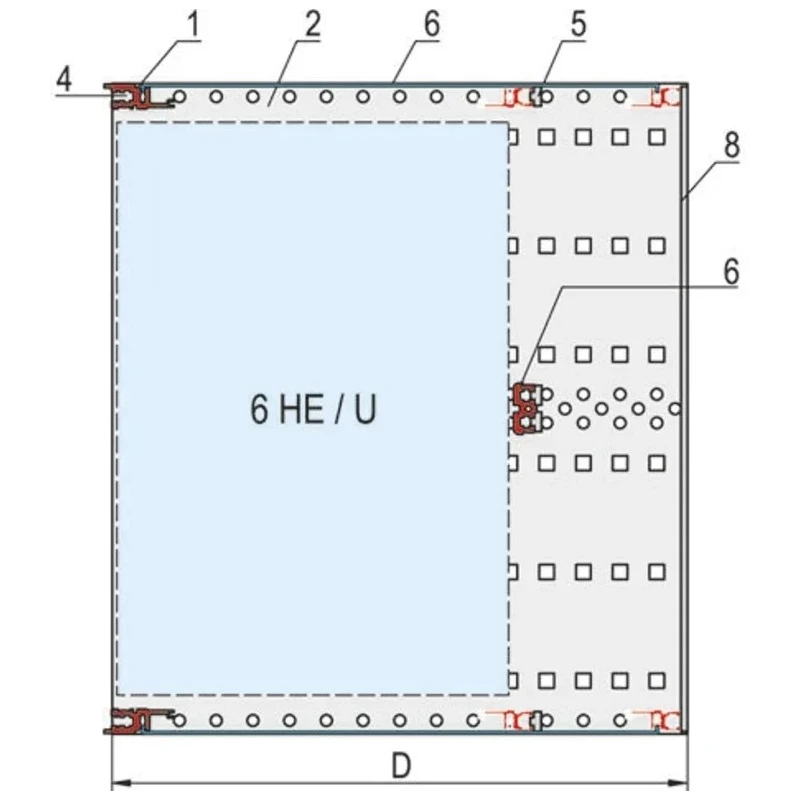

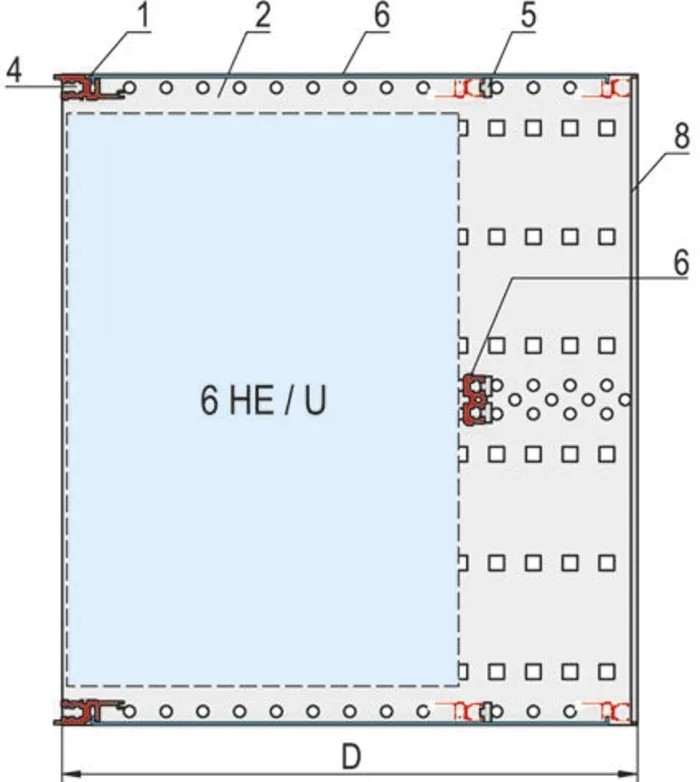

The chassis comprises strengthened horizontal rails for enhanced stability along with anodised aluminium mounting flanges and corner extrusions. Side panels are 2.0 mm thick clear chromate aluminium, and the rear panel is 2.5 mm thick with anodised outer surface and yellow chromate inner surface. The cover plate measures 0.8 mm thick with 4.0 mm perforations allowing 60% air flow. All contact surfaces are electrically conductive for reliable grounding and EMC performance.

Delivery includes a complete assembly kit containing six horizontal rails, two side panels, two mounting flanges, six threaded inserts with 6U x 8 configuration, two insulating strips with 6U x 4, one horizontal rail centre rear only 6U, two cover plates, one rear panel, and an EMC gasket material ensuring comprehensive installation capability.

This Rack Mount Chassis is part of the EuropacPRO highly flexible 19" sub-rack range, making it suitable for system integration and customized configurations common in industrial automation, telecommunications servers, and data centers. It is manufactured in Germany with RoHS compliance assurance.

Explore EnvMart’s extensive range of electrical enclosures and rack mounting accessories for optimized industrial and commercial equipment housing solutions. This rack chassis includes six horizontal rails and two side panels for complete enclosure assembly.

Two mounting flanges and six threaded inserts enable secure component installation. Insulating strips provide electrical isolation for backplane mounting applications. Cover plates and EMC gasket material improve electromagnetic compatibility and airflow.
