Radiall MCX Series Coaxial Connector Through Hole Female, 50 Ω, Straight Body Solder 003.01.2510.001

Free Delivery in India | Lowest Global Shipping Charges

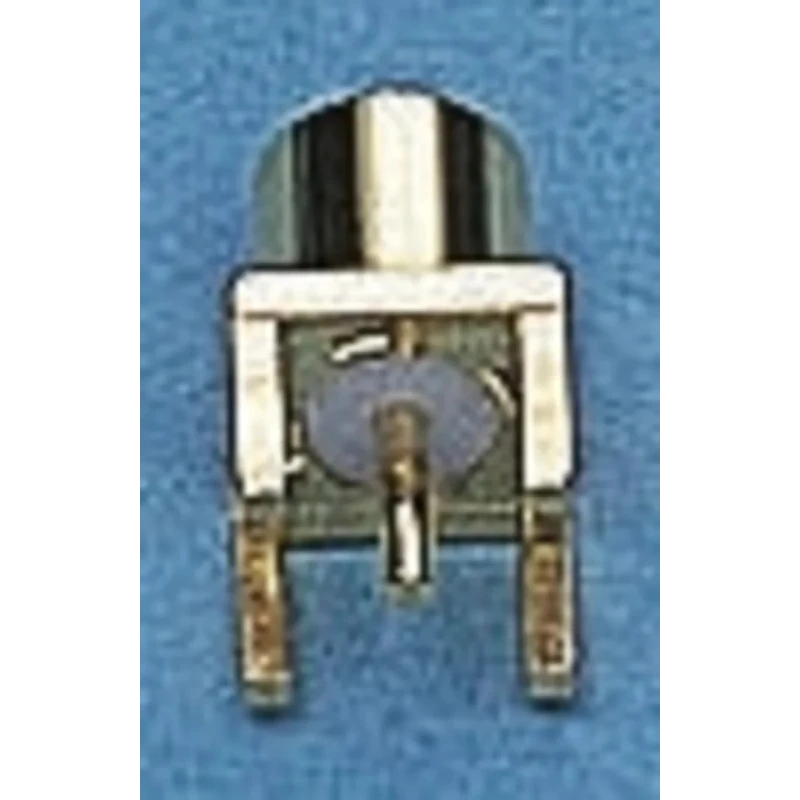

Radiall MCX Series Coaxial Connector Through Hole Female, 50 Ω, Straight Body Solder 003.01.2510.001

Name: Radiall MCX Series Coaxial Connector Through Hole Female, 50 Ω, Straight Body Solder 003.01.2510.001
Brand: Radiall
SKU: 185446
Price: 15.33 USD
Availability: InStock



Category Coaxial Connectors Brand Radiall Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Radiall
Orientation	Straight
Mount Type	Through Hole
Operating Frequency	2GHz
Contact Material	Beryllium Copper Alloy
Series	MCX
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	MCX
Body Plating	Gold

Key Features

Coaxial connector designed for 50 Ω impedance applications.
Features a female connector gender with straight orientation for ease of use.
Through hole mount type ensures secure and reliable PCB connection.
Body and contact plating are gold for enhanced conductivity and corrosion resistance.
Operates effectively within temperature range of -55°C to 125°C.
Suitable for operating frequencies up to 2 GHz for high-frequency signal transmission.
Contact material made of beryllium copper alloy ensuring durability and performance.
Termination type is solder, providing a robust electrical connection.

Product Description

IMS 003.01.2510.001 MCX Series Coaxial Connector Through Hole Female is designed to meet demanding electronic component needs in high-frequency applications. Featuring a 50 Ω impedance, this connector supports operating frequencies up to 2GHz, ideal for RF and microwave circuits.

The connector employs a gold-plated body and contacts, combining excellent electrical conductivity with corrosion resistance. Its beryllium copper alloy contact material contributes to reliable mechanical and electrical performance over diverse operating temperatures from -55°C to 125°C.

This female MCX connector features a straight orientation and through-hole mounting style, facilitating sturdy PCB assembly. The solder termination ensures secure and permanent electrical contact, ensuring signal integrity throughout demanding industrial, laboratory, and communication system applications.

The MCX micro miniature plug connection is a compact and space-saving solution, offering approximately 30% less space than SMB plug connectors, yet matching their electrical reliability. The design incorporates precision plating and materials to ensure consistent performance under harsh conditions.

Coaxial connector designed for 50 Ω impedance applications. Features a female connector gender with straight orientation for ease of use. Through hole mount type ensures secure and reliable PCB connection. Body and contact plating are gold for enhanced conductivity and corrosion resistance.

Operates effectively within temperature range of -55°C to 125°C. Suitable for operating frequencies up to 2 GHz for high-frequency signal transmission. Contact material made of beryllium copper alloy ensuring durability and performance.

Termination type is solder, providing a robust electrical connection. Manufactured in Germany, maintaining high quality standards.

This product is ideal for electronics manufacturing, telecommunications, and RF testing setups requiring precise, compact, and reliable Coaxial Connectors. Explore a wide range of MCX connectors and accessories within the EnvMart electronics components category to complement your project needs.
