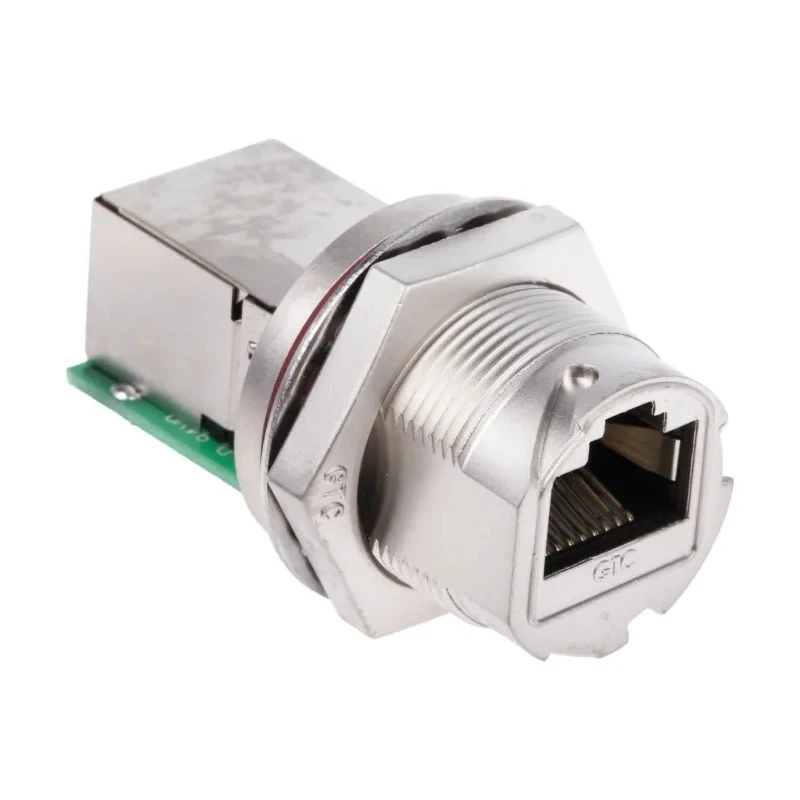

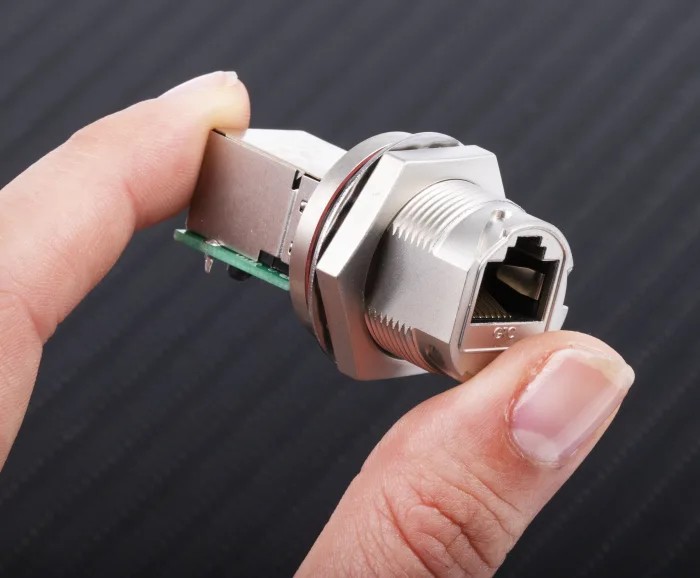

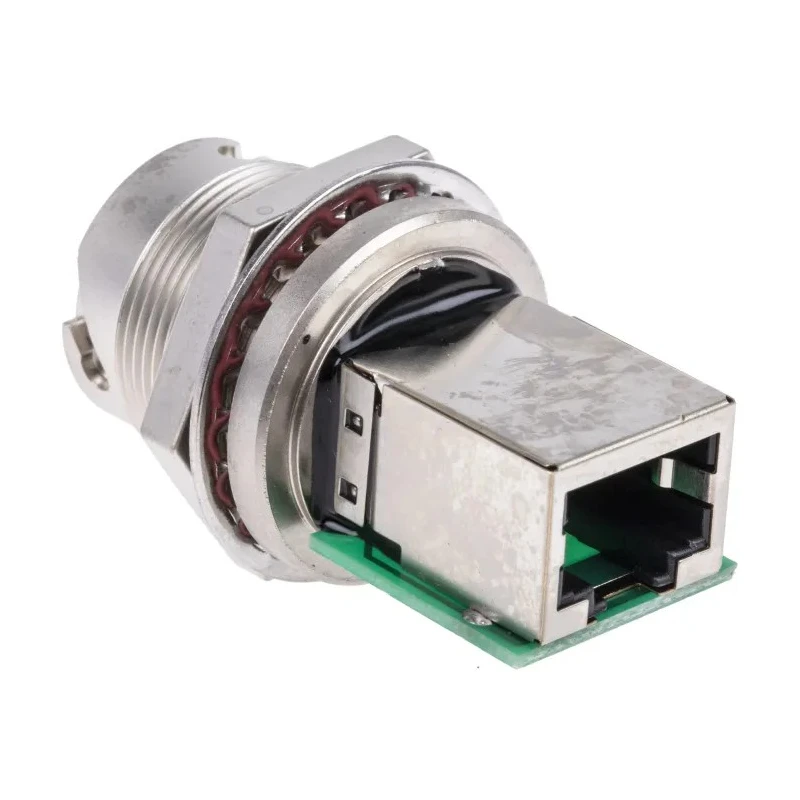

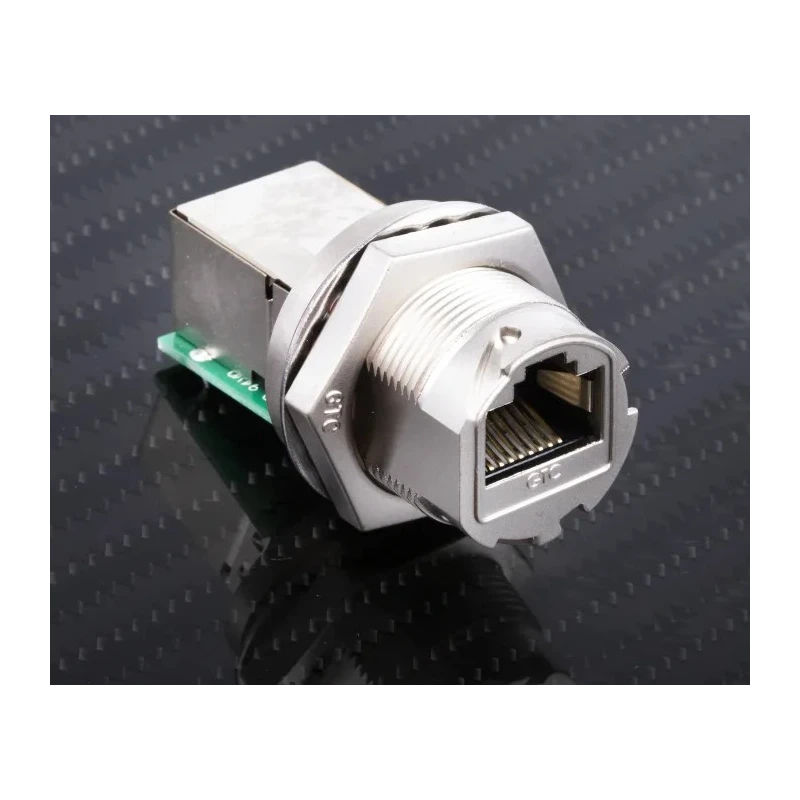

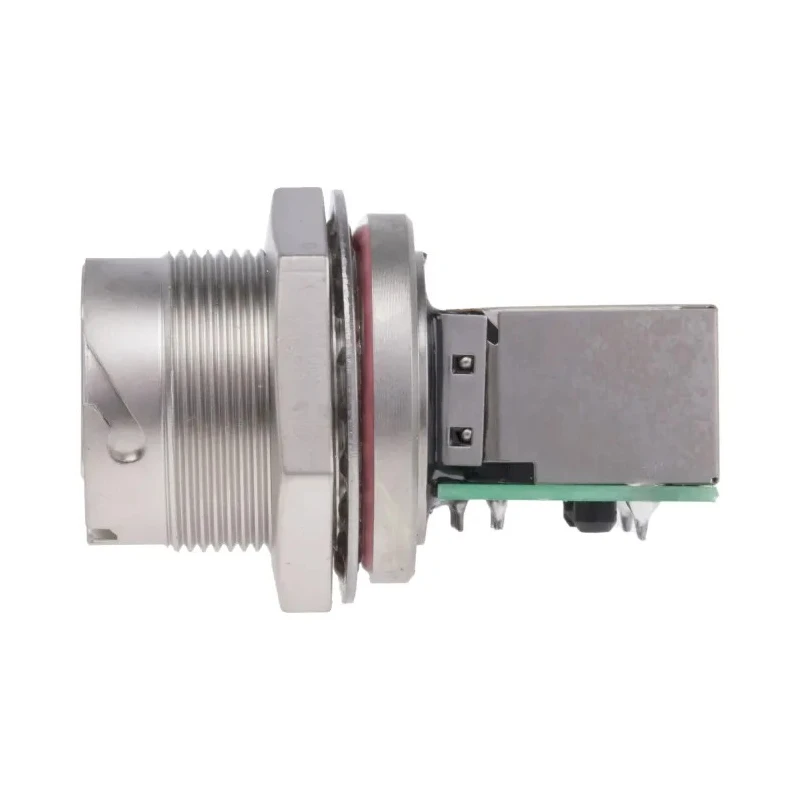

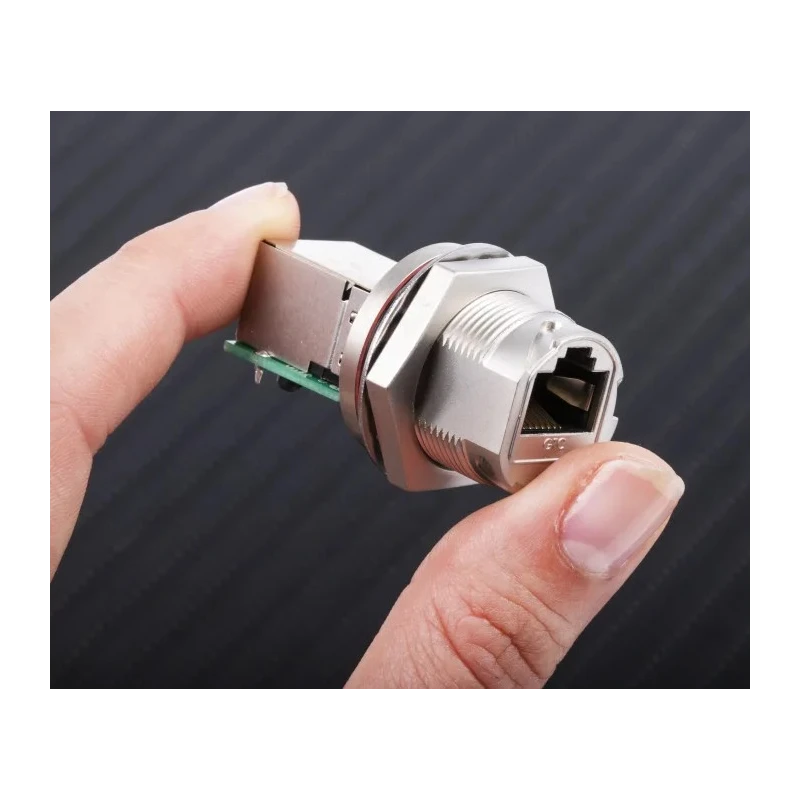

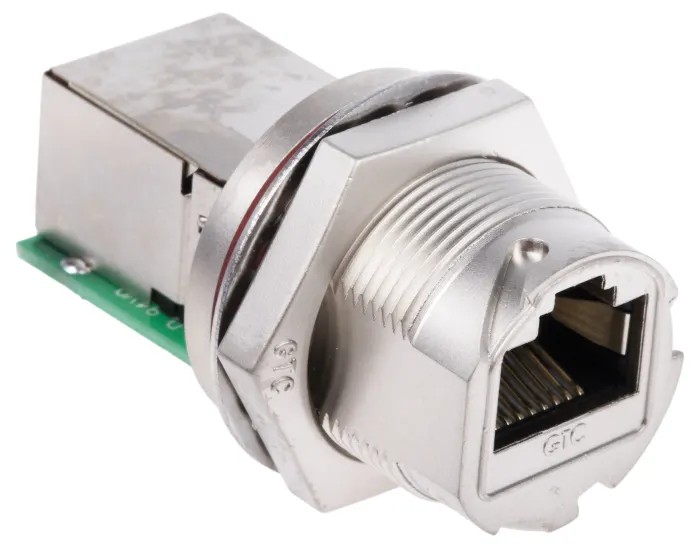

RS PRO RJ45 Connector Female Panel Mount Cat5e Shielded Straight 1 Port RJ45

RS PRO RJ45 Connector Female RJ45 Panel Mount Cat5e Shielded Straight 1 Port is designed for high-performance Ethernet connectivity in industrial, commercial, and outdoor environments. It features a rugged waterproof enclosure with IP68 protection, ensuring reliable operation even when fully immersed in water up to one meter for 30 minutes. The connector supports Cat5e LAN category and provides a shielded structure for enhanced EMI resistance.

This panel mount socket is constructed with copper alloy contacts coated in gold plating for superior conductivity and corrosion resistance. Its body includes a robust bulkhead and a screw-on jam nut designed to fit panels with thickness ranging from 0.8 mm to 8.0 mm. The connector employs a silicone O-ring to create a durable sealed feed-through connection point, making it ideal for challenging environments where ingress protection is critical.

Operating between -40°C and +105°C, this connector withstands harsh temperature conditions found in environments such as marine, automotive, military, wireless outdoor access points, and outdoor LED or display lighting applications. The straight orientation and shielded design ensure low interference and stable signal integrity over network connections.

Technical dimensions include a depth of 42.1 mm, length of 29.1 mm, and width of 25.4 mm. The termination type uses pin contacts. The connector series RS PRO is known for dependable quality and ease of installation.

Rated IP68 waterproof and dust-tight for secure outdoor use. Shielded RJ45 socket provides EMI protection and stable signal transmission. Gold-plated copper alloy contacts for durability and conductivity. Screw-on jam nut and silicone O-ring ensure panel mount sealing.

Supports Cat5e network applications for high-speed data rates. Wide operating temperature range for industrial environments. Robust construction suitable for marine, automotive, military, and outdoor AP setups. Easy installation onto panels with standard mounting thread.

RS PRO products are rigorously tested to provide reliable performance in electrical and electronics applications. This RJ45 connector is ideal for use in Ethernet networks requiring waterproof and rugged connectors for industrial, laboratory, manufacturing, and commercial use cases.
