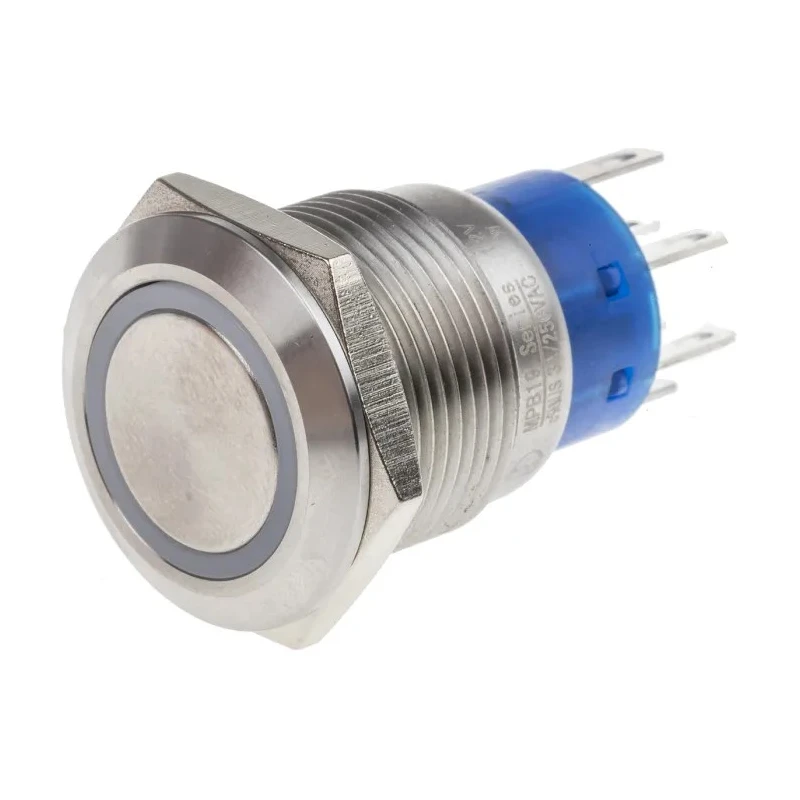

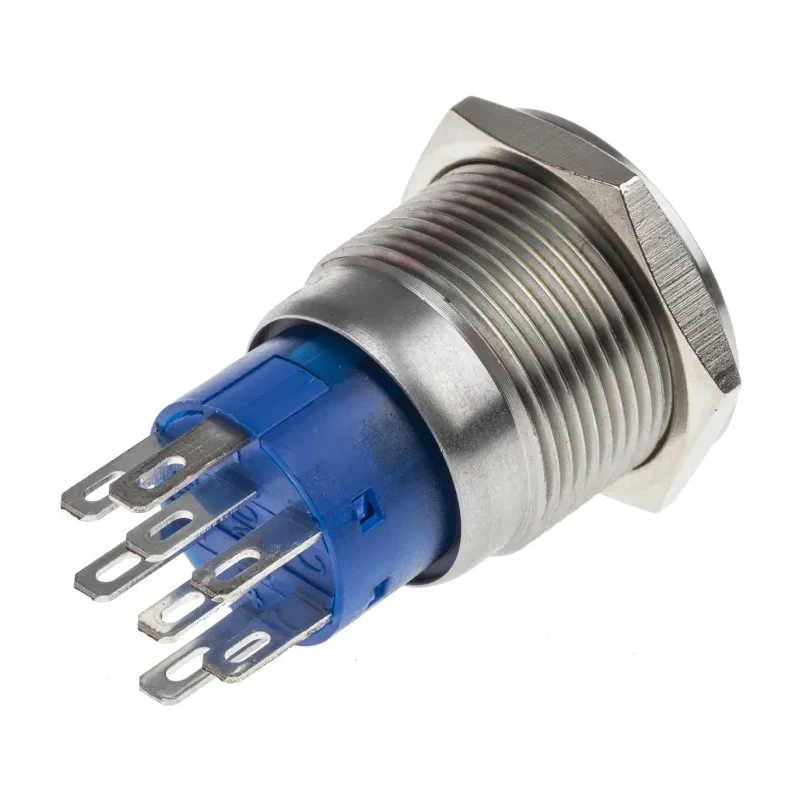

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, DPDT, White LED, IP67, 250 V AC 5A 111-5790

RS PRO 111-5790 is a high-quality illuminated momentary push button switch designed for panel mounting with a 19.2 mm cutout diameter. Featuring a double pole double throw (DPDT) contact configuration, this switch enables simultaneous control of two separate circuits, making it ideal for complex industrial and electronic applications requiring reliable, user-friendly control interfaces.

The actuator is round with a silver flat surface, illuminated by a bright white LED ring operating at 12 V, which provides clear visual indication of the switch status even in low-light or harsh industrial environments. It is spring-loaded to return to its resting position when released, ensuring momentary contact operation.

This switch supports a contact voltage rating of 250 V AC and a current rating of 5 A, suitable for controlling moderate power circuits in automation, medical equipment, communications devices, and industrial control gear. The copper contact material enhances conductivity and durability for over 1,000,000 mechanical cycles, assuring long service life.

With an ingress protection rating of IP67, the switch is fully protected against dust ingress and capable of withstanding immersion in water, allowing use in demanding or outdoor conditions. The operating temperature range from -20°C to 55°C covers a broad variety of industrial environments.

Safety and quality credentials include compliance with cULus Recognized E 187490, ENEC 18, and IK10 impact resistance standards, confirming its ruggedness and conformity to industry norms.

The switch is equipped with solder pin terminals for secure, easy electrical connections and is manufactured in China. Its compact panel mounting design is well-suited for spaces with limited room, making it versatile across electrical, automation, communications, HVAC, and industrial manufacturing applications.

Silver actuator colour with round flat style offers ergonomic operation. Momentary DPDT switch operation facilitates dual circuit control. White LED illumination operates at 12 V for visibility. IP67 rating ensures robust dust and water resistance.

Contact voltage and current ratings of 250 V AC and 5 A respectively. Meets recognized industrial safety and quality standards including cULus and ENEC. Operating temperature range from -20°C to 55°C for wide application.
