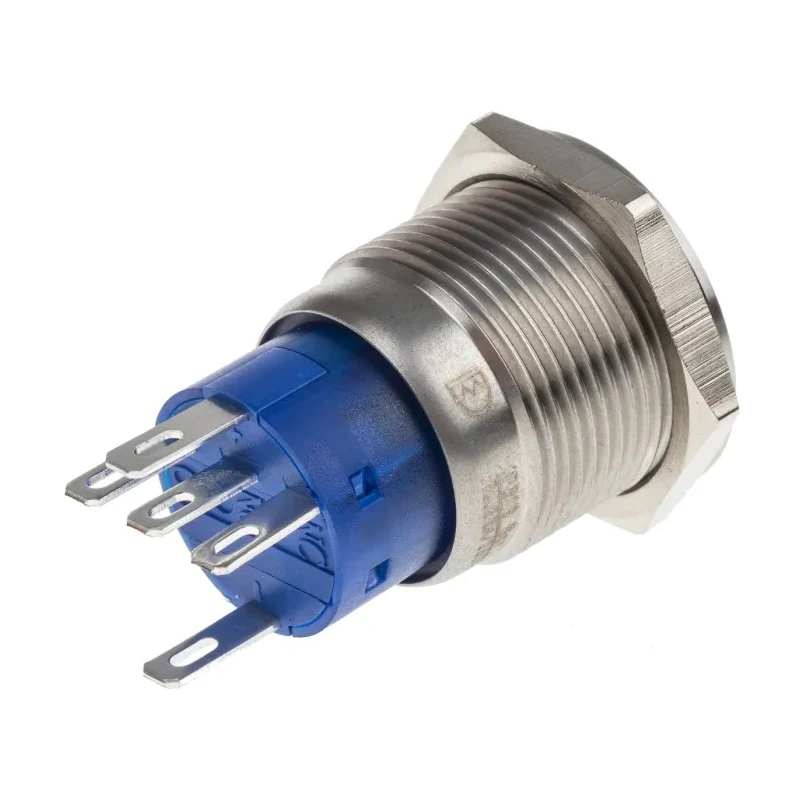

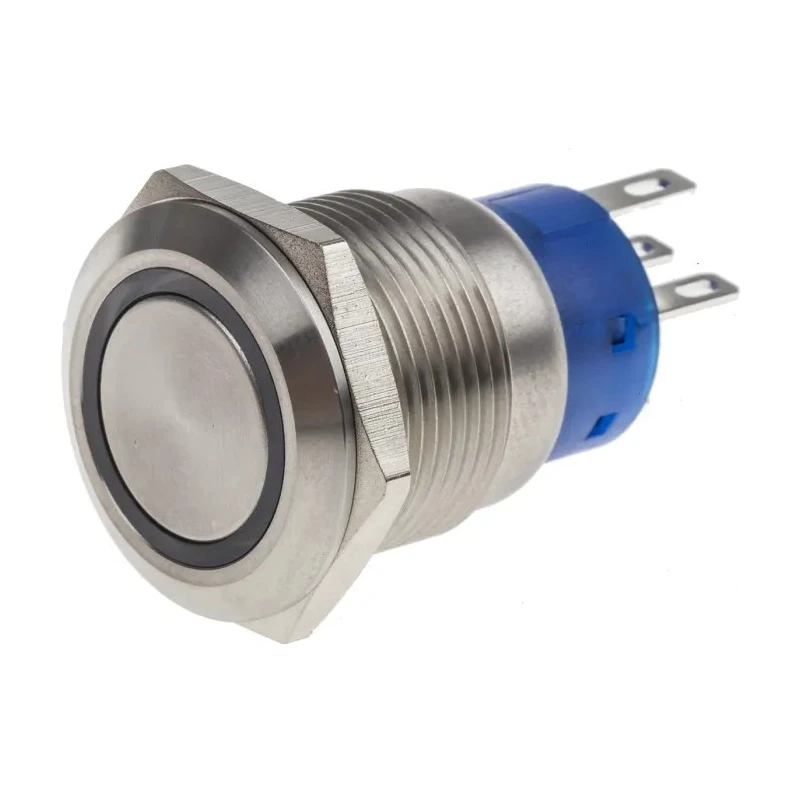

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, SPDT, Red LED, IP67, 250 V AC, 250 V 111-5795
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 111-5795 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 2 NO/2 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a robust round silver actuator with a red illuminated LED.
- It supports a contact AC voltage of 250 V and DC voltage of 250 V.
- Rated IP67, it provides excellent protection against dust and water ingress.
- Designed for panel mounting, it uses solder pin terminals for secure connections.
- The device has a switch contact current rating of 5A and a switch configuration of 2 NO/2 NC contacts.
- It operates reliably between -20°C and 55°C, suitable for demanding environments.
- Standards include cULus Recognized E 187490, ENEC 18, and IK10 impact resistance.
Product Description
RS PRO 111-5795 Illuminated Push Button Switch is a high-quality latching switch designed for panel mounting applications. It features a 19.2 mm cutout and a Single Pole Double Throw (SPDT) contact configuration. The switch body is equipped with a round silver actuator and a red LED illumination to indicate switch status clearly.
Rated with an IP67 ingress protection, this push button switch resists dust and water, making it suitable for industrial, medical, communications, and control gear equipment where reliable operation in harsh conditions is essential. The switch supports both AC and DC voltages up to 250 V and carries a contact current rating of 5A, ensuring robust electrical performance.
Its terminal type uses solder pins for effective and long-lasting connectivity in circuit boards. This switch operates within a temperature range of -20°C to 55°C, providing reliable use in diverse environmental conditions.
The switch also complies with notable certifications including cULus Recognized E 187490, ENEC 18, and IK10 impact resistance standard, confirming its safety and durability standards.
The switch features a robust round silver actuator with a red illuminated LED. Panel mount design with 19.2 mm cutout ensures easy installation in space-restricted panels. IP67 rated enclosure offering dust-tight and water ingress protection.
Single Pole Double Throw (SPDT) contact configuration with 2 NO and 2 NC contacts. Suitable for industrial, medical, communications, and control gear applications. Operates effectively between -20°C and 55°C ambient temperatures.
Certified under cULus, ENEC, and IK10 impact standards.
This RS PRO Push Button Switch is ideal for industrial automation, medical device controls, and communication equipment requiring precise and reliable latching operation with clear LED indication. Its compact, short design allows installation where space is limited.
Explore more products within Electronics & Electricals category at EnvMart for all your switching and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
It can operate effectively at a maximum temperature of 55°C.
The switch is rated IP67, providing excellent protection against dust and water ingress.
The required panel cutout size for this switch is 19.2 mm.
It uses solder pin terminals for secure connections.
The switch has a contact current rating of 5A.
It supports both AC and DC voltage ratings of 250V.
The minimum operating temperature for this unit is -20°C.
It complies with cULus Recognized E 187490, ENEC 18, and IK10 impact resistance standards.
The actuator is round in style and silver in color.
This switch is suitable for industrial, medical, communications, and control gear applications.
This unit utilizes a latching switch operation.
