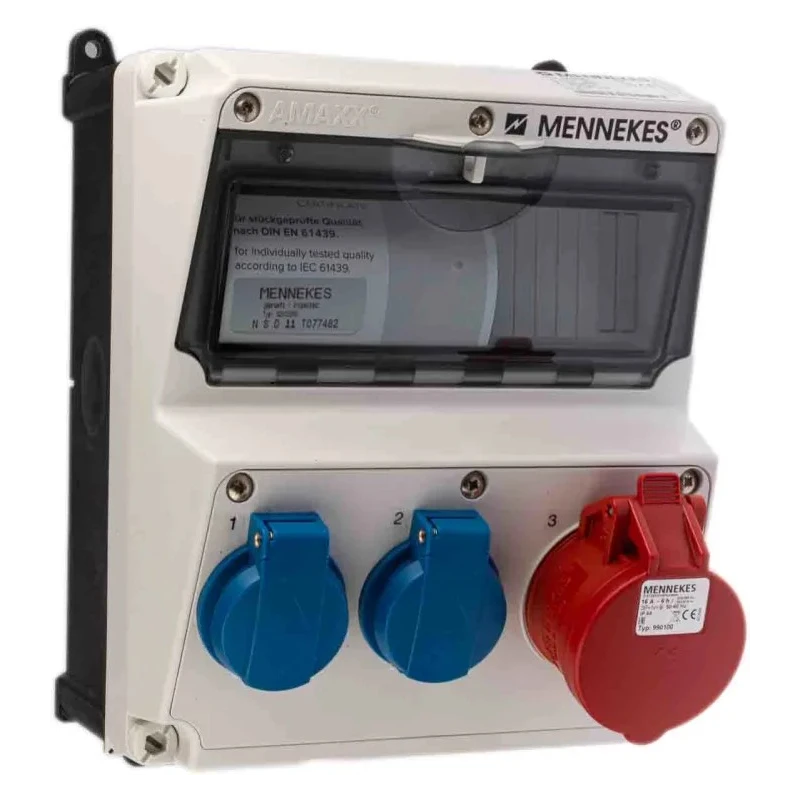

MENNEKES Industrial Power Connector AMAXX Receptacle Combination 16A 230V, 400V 5-Pole IP44 Red Blue Wall Mount IP44
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 230, 400V |
| Brand | MENNEKES |
| Material | AMAPLAST |
| Colour | Red, Blue |
| Height | 260mm |
| Model | IP44 |
| IP Rating | IP44 |
| Width | 225mm |
| Mount Type | Wall |
| Current Rating | 16A |
| Socket Type | CEE |
| Number of Sockets | 3 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Pole Configuration | 5 |
| MENNEKES, Rated At 16A, 400V IP67 White, Red, Wall Mount Receptacle, 5Brand | MENNEKES |
| Mennekes 16A 2P+E (2Schuko), 5P (1CEE Form) Pole, 3 Gang Combi Unit, IP44Brand | MENNEKES |
Key Features
- Designed for industrial electrical power distribution with IP44 splash-proof rating.
- Constructed using durable AMAPLAST material ensuring wear resistance and electrical insulation.

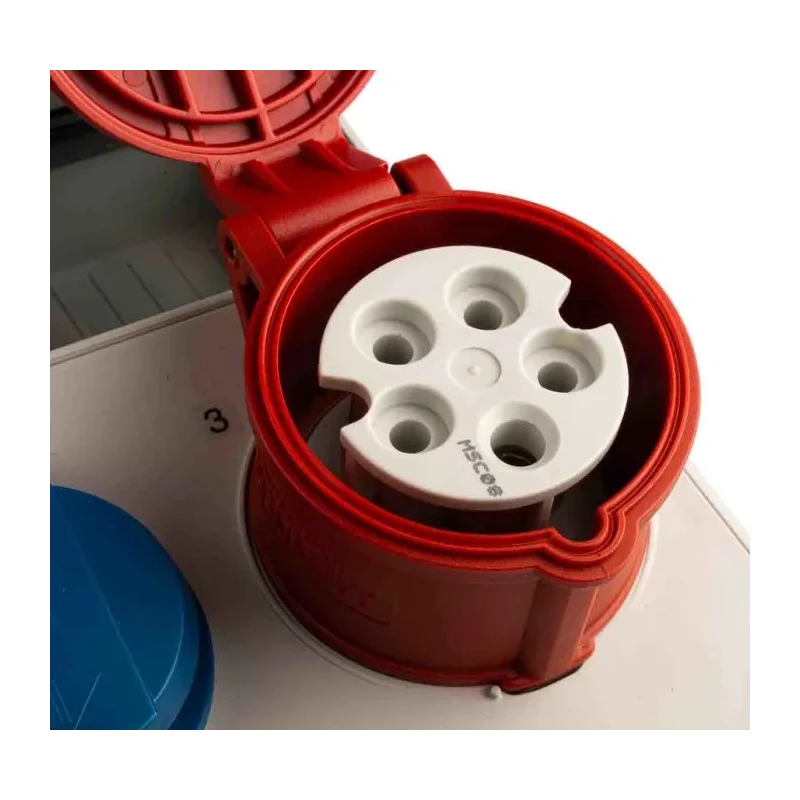

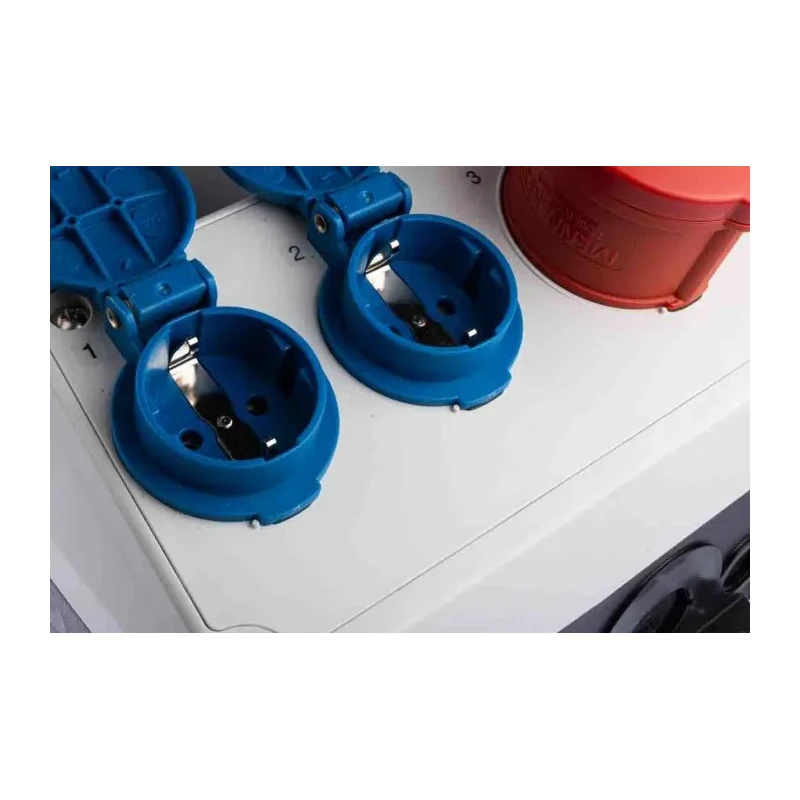

- Features three interlocked CEE-type sockets with 5 poles for secure connections.

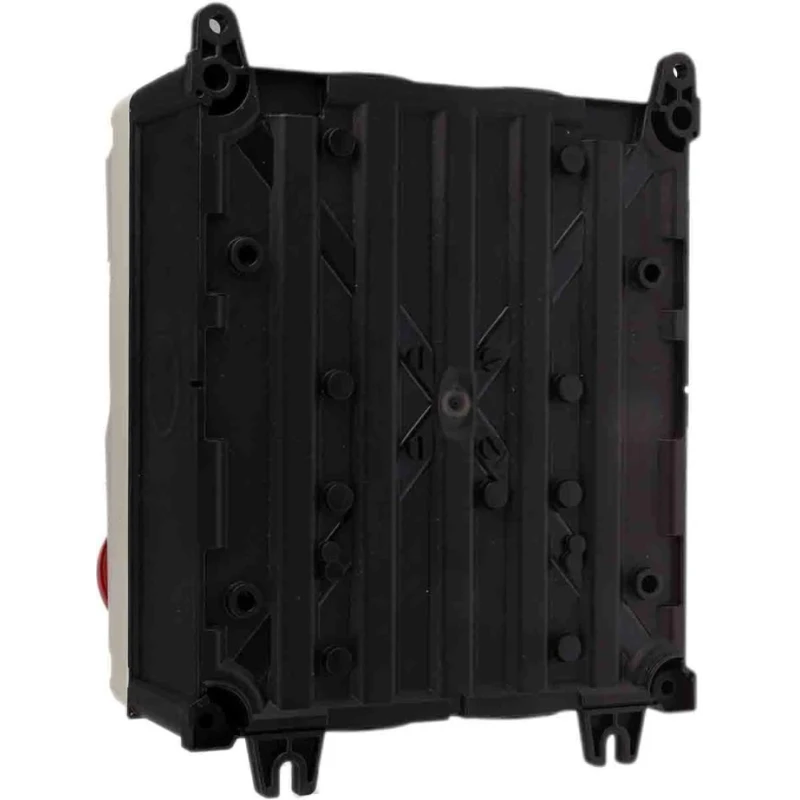

- Wall-mount installation with dimensions 260mm height and 225mm width.
- Pre-wired with screw terminals supporting feeders up to 5 x 10mm² cable.
- Enclosure and inserts hinged to the side for easy access and maintenance.
- Fusing located behind a transparent cover for enhanced safety during operation.
- Compliant with ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards for electrostatic discharge protection.
Product Description
MENNEKES IP44 Industrial Power Connector model IP44 is a 16A rated, 230V to 400V 5-pole AMAXX recep-tacle combination designed for wall mounting. Constructed from high-quality AMAPLAST material, this unit offers excellent wear resistance, electrical insulation, and shape retention for durable performance in industrial environments.
This combination features three CEE-type interlocked sockets providing safe and reliable electrical connections. The enclosure design includes a hinged insert and transparent fuse cover for quick access and maintenance, while supporting feeder cables up to 5 x 10mm² with screw terminal connections.
With a compact footprint of 260mm height and 225mm width, the IP44 splash-proof rating allows use in environments exposed to moisture and dust. The device complies with DIN EN 61439 and international standards ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007), ensuring protection against electrostatic discharge and robust industrial safety.
Manufactured in Germany, MENNEKES AMAXX power connectors are well-suited for industrial sites, manufacturing plants, electrical distribution setups, and commercial applications requiring dependable power connections under challenging conditions.
Designed for industrial electrical power distribution with IP44 splash-proof rating. Constructed from durable AMAPLAST material with excellent wear resistance and electrical insulation. Equipped with three 5-pole CEE interlocked sockets for secure connections.
Wall-mount design with 260mm height and 225mm width for space-efficient installation. Pre-wired with screw terminal connections compatible with feeder cables up to 5 x 10mm². Hinged enclosure and transparent fuse cover for enhanced safety and ease of maintenance.
Certified to ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards. Manufactured in Germany according to DIN EN 61439 industrial standards. Explore MENNEKES industrial connectors and find premium solutions for your electrical power distribution needs at EnvMart.
