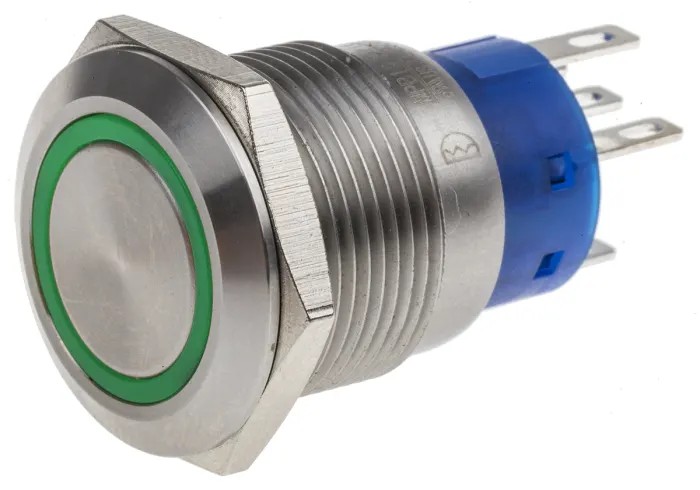

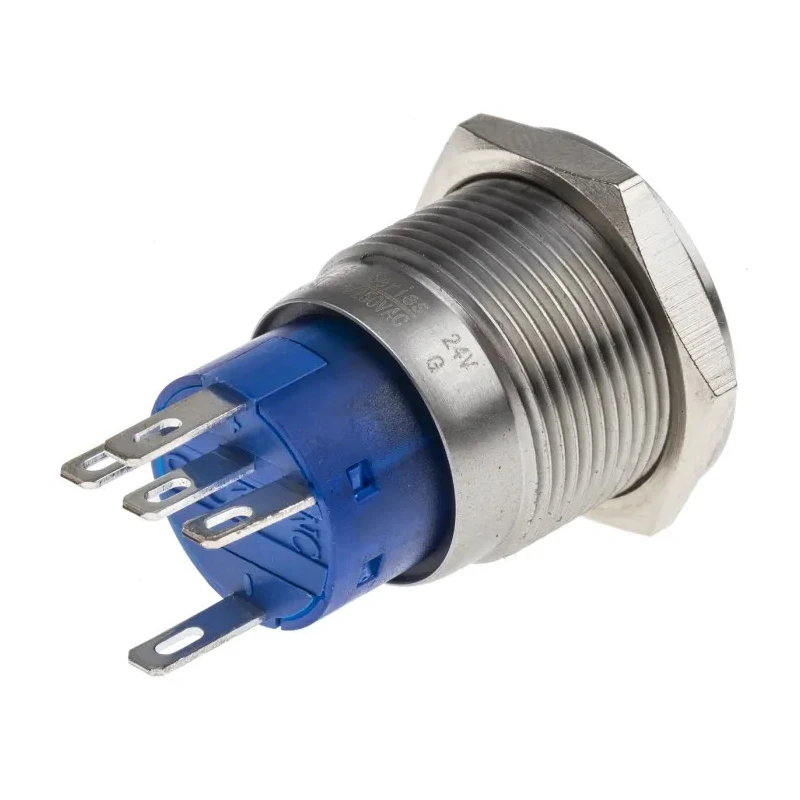

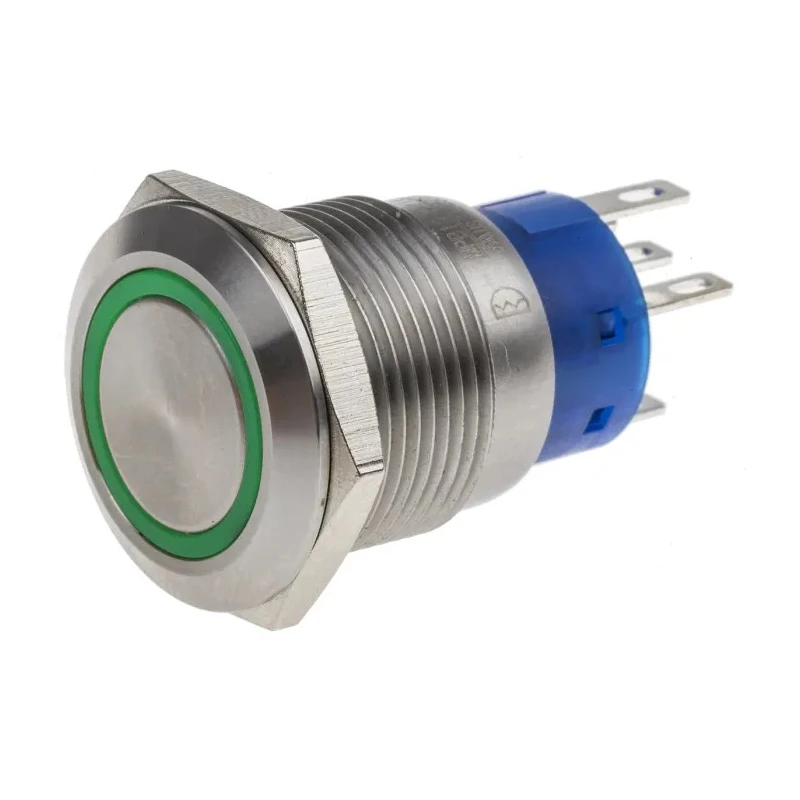

RS PRO Illuminated Push Button Switch Latching Panel Mount SPDT Green LED IP67 250 V AC 111-3774
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-3774 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, IK10 |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator is silver and features a round, flat style for ease of use.
- It has a 19.2 mm diameter panel cutout size for compact installation.
- Illumination is provided by a green LED operating at 24 V.
- The switch offers IP67 rating, ensuring protection against dust and temporary immersion in water.
- Suitable for control circuits operating at up to 250 V AC with a contact current rating of 5 A.
- The terminal type is solder pin for reliable electrical connections.
- Operating temperature range is from -20°C to 55°C, allowing for use in varied environments.
- The switch operation is latching, maintaining state until manually changed.
Product Description
RS PRO 111-3774 is an illuminated push button switch designed for panel mounting in industrial and automation systems. Featuring a latching operation and SPDT (Single Pole Double Throw) contact configuration, it offers reliable control of electrical circuits at up to 250 V AC and 5 A contact current.
The switch includes a silver, round flat actuator with a green LED indicator operating at 24 V, providing visual confirmation of the switch state. Its panel cutout diameter is 19.2 mm, allowing installation in compact control panels.
Constructed to meet IP67 ingress protection standards, this switch withstands dust ingress and can be submerged briefly in water, making it suitable for harsh or demanding environments such as food production lines, medical equipment, and communication systems.
With an operating temperature range from -20°C to 55°C, the switch functions reliably under various thermal conditions. The solder pin terminals facilitate secure and stable electrical connections. The copper contacts enhance conductivity, minimizing power loss during operation.
The product complies with safety and performance standards including cULus Recognized E 187490 and IK10 impact rating, ensuring durability and operational safety in industrial use.
The actuator is silver and features a round, flat style for ease of use. It has a 19.2 mm diameter panel cutout size for compact installation. Illumination is provided by a green LED operating at 24 V. The switch offers IP67 rating, ensuring protection against dust and temporary immersion in water.
Suitable for control circuits operating at up to 250 V AC with a contact current rating of 5 A. The terminal type is solder pin for reliable electrical connections. Operating temperature range is from -20°C to 55°C, allowing for use in varied environments.
The switch operation is latching, maintaining state until manually changed. Standards met include cULus Recognized E 187490 and IK10 for impact resistance and compliance.
This push button switch is ideal for use in industrial automation, manufacturing machinery, medical device controls, and communication systems where reliable switching with indication is required. Its rugged design and IP67 protection also make it suitable for outdoor or harsh environment applications.
For more options and detailed specifications, browse the RS PRO Push Button Switch category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 250 V AC.
This switch requires a panel cutout size of 19.2 mm for installation.
It features a latching operation, which maintains its state until manually changed.
The contact current rating for this switch is 5 A.
This model has an IP67 rating, providing protection against dust and temporary immersion in water.
The operating temperature range for this unit is from -20°C to 55°C.
It uses solder pin terminals for secure electrical connections.
This switch complies with cULus Recognized E 187490 and has an IK10 impact rating.
The LED indicator on this model is green.
The actuator style is round and flat, designed for ease of use.
This push button switch is suitable for industrial automation, manufacturing machinery, and medical device controls, among others.
The contact configuration for this switch is SPDT (Single Pole Double Throw).
