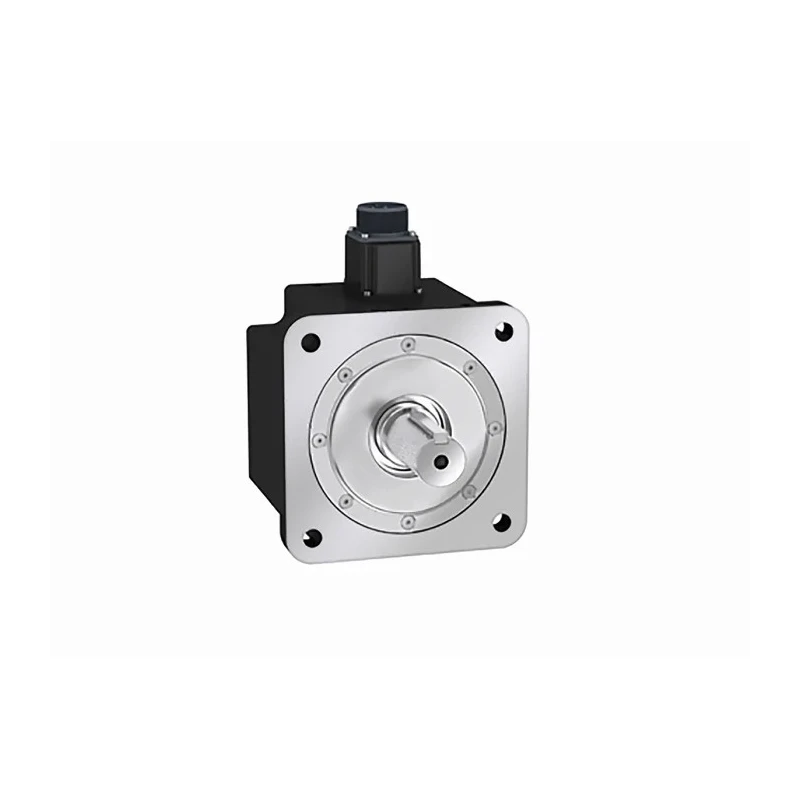

Schneider Electric 220V DC 2 kW Servo Motor, 3000 rpm, 28.65 Nm Max Output Torque, 22 mm Shaft Diameter BCH2MM2023CA6C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Length | 242mm |
| Model | BCH2MM2023CA6C |
| Depth | 176mm |
| Width | 130mm |
| Mount Type | Flange, Screw |
| Current Rating | 32.85Arms |
| Series | Lexium |
| Power Rating | 2kW |
| Output Speed | 3000rpm |
| Shaft Diameter | 22mm |
| Shaft Length | 55mm |
| Supply Voltage | 220V dc |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 28.65Nm |
| Stall Torque | 9.55Nm |
| Rotor Inertia | 13.5kg.cm² |
Key Features
- This servo motor delivers a maximum output torque of 28.65 Nm.
- Operates at an output speed of 3000 rpm for high performance.
- Features a 22 mm diameter shaft for multiple mounting options.
- Includes flange and screw mounts for flexible installation.
- Ratings include 2 kW power and 32.85 Arms current for stable operation.
- 20-bit absolute encoder provides high accuracy position feedback.
- Compact dimensions of 242 mm length, 130 mm width, and 176 mm depth.
- Stall torque of 9.55 Nm supports start-up load handling.
Product Description
Schneider Electric BCH2MM2023CA6C is a 220V DC servo motor delivering 2 kW power output, operating at 3000 rpm and capable of producing up to 28.65 Nm of maximum output torque. Designed for high performance in automation and precision positioning tasks, this servo motor is ideal for industrial, manufacturing, and control applications.
This model features a 22 mm shaft diameter and includes flange and screw mounting options, providing flexible installation solutions. The motor length is 242 mm, width 130 mm, and depth 176 mm, making it suitable for compact setups.
Its stall torque rating of 9.55 Nm supports overcoming initial load resistance during startup. The current rating of 32.85 Arms ensures consistent electrical input capacity. The BCH2 series includes a high-resolution (20-bit) single-turn absolute encoder that enables precise control and feedback essential for sophisticated motion control systems.
Belonging to Schneider Electric's Lexium range, these servo motors cater to applications requiring exact speed regulation and positioning such as packaging machines, printing equipment, materials handling, and winding machinery. The product complies with RoHS directives and has rotor inertia of 13.5 kg.cm², further enhancing its reliability in demanding environments.
This servo motor delivers a maximum output torque of 28.65 Nm. Operates at an output speed of 3000 rpm for high performance. Features a 22 mm diameter shaft for multiple mounting options. Includes flange and screw mounts for flexible installation.
Ratings include 2 kW power and 32.85 Arms current for stable operation. 20-bit absolute encoder provides high accuracy position feedback. Compact dimensions of 242 mm length, 130 mm width, and 176 mm depth. Stall torque of 9.55 Nm supports start-up load handling.
Part of the Lexium series designed for automation and precision control. Compliance with RoHS standards and rotor inertia of 13.5 kg.cm².
This servo motor is optimal for industrial automation, manufacturing processes, and robotics that demand high precision and reliable torque control. For further product options, browse the Servo Motors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output torque of this servo motor is 28.65 Nm.
This model has a power rating of 2 kW.
It operates at an output speed of 3000 rpm.
The dimensions are 242 mm in length, 130 mm in width, and 176 mm in depth.
The shaft diameter is 22 mm.
It includes flange and screw mounting options for flexible installation.
The stall torque rating is 9.55 Nm.
The current rating is 32.85 Arms.
It features a 20-bit absolute encoder for high accuracy position feedback.
The rotor inertia is 13.5 kg.cm².
This model complies with RoHS standards.
It is typically used in industrial automation, manufacturing processes, and robotics that require high precision and reliable torque control.
