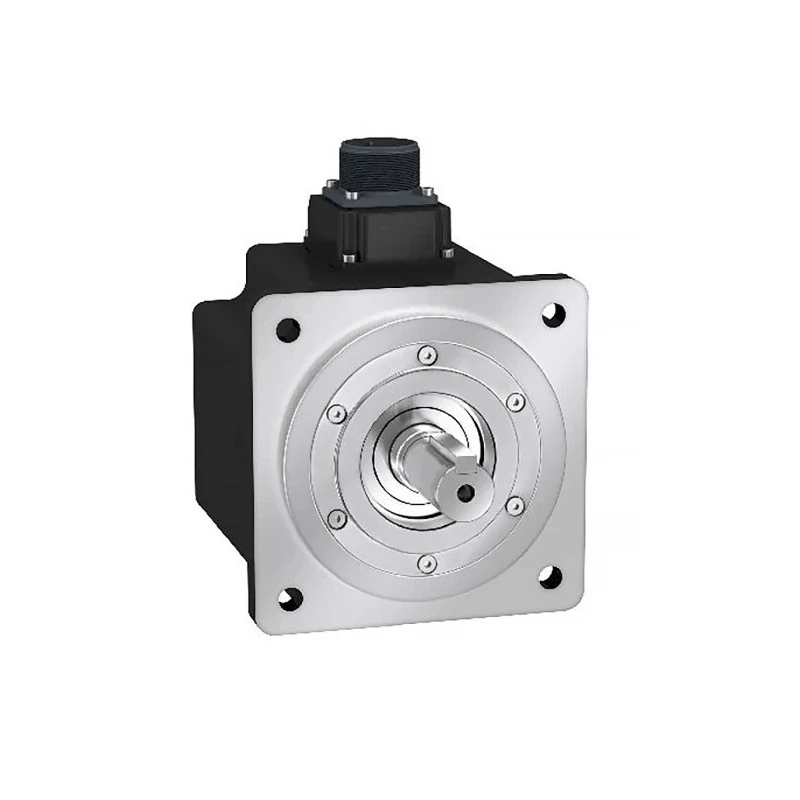

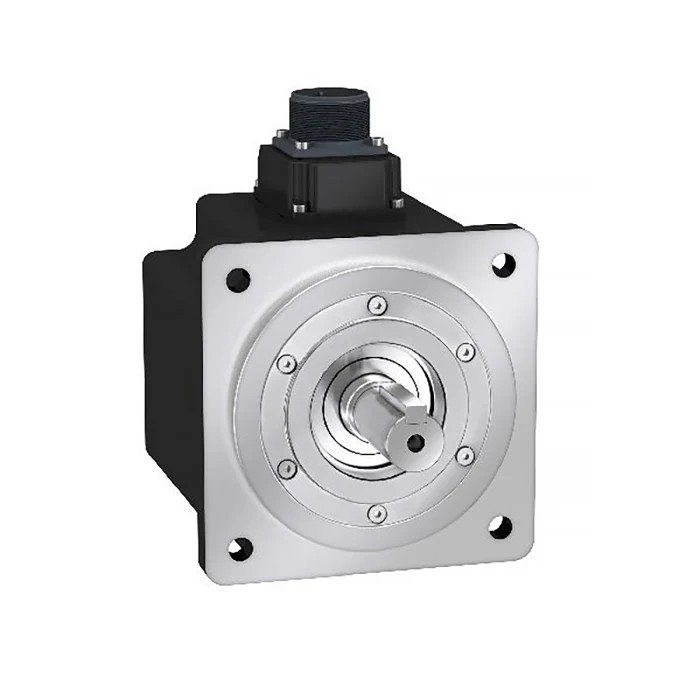

Schneider Electric 220V DC 1.5 kW Brushless Servo Motor, 3000 rpm, 14.3 Nm Torque, 22 mm Shaft Diameter BCH2MM1523CA6C

Schneider Electric BCH2MM1523CA6C is a 220V DC brushless servo motor delivering 1.5 kW of power at 3000 rpm speed, designed for precise and high-performance motion control applications. It combines a high moment of inertia rotor with an absolute encoder to enable accurate position feedback and optimized torque performance, making it suitable for complex automation systems found in industrial, robotics, packaging, and material handling settings.

The motor has a maximum output torque rating of 14.3 Nm and a stall torque of 7.16 Nm. Its shaft has a diameter of 22 mm and length of 55 mm, providing robust mechanical connectivity. The motor mounts via screw and flange options, conforming to an Asian 130 mm flange standard, and is sealed with an IP65-rated parallel keyed shaft for dust and water resistance, ensuring reliability in demanding environments.

This model integrates a 20-bit single-turn absolute encoder for high resolution feedback, critical to precision motion applications. With a compact footprint measuring 222 mm in length, 130 mm in width, and 176 mm in depth, it fits well in machines constrained by space. The motor operates at a continuous current of 20.31 Arms and benefits from natural convection cooling, allowing fanless operation and minimizing maintenance.

It meets RoHS compliance and is part of the Lexium 28 series, delivering energy-efficient and embedded safety features. This servo motor is ideal for applications such as packaging machinery, robotic systems, and the food and beverage industry, where precise control and reliability are paramount.

High moment of inertia brushless design ensures smooth operation and precise control. IP65-rated shaft is dust-tight and protected against water jets for enhanced durability. 20-bit single-turn absolute encoder provides accurate position feedback.

Compact dimensions and compatible mount types facilitate versatile installation. Natural convection cooling reduces system complexity and saves space. Wide operating temperature range supports demanding industrial environments.

Compatible with Lexium 26D and Lexium 28 servo drives for integrated motion control solutions. Energy-efficient operation with embedded safety features aligns with modern automation standards. Suitable for packaging, robotics, material handling, and food and beverage industries.
