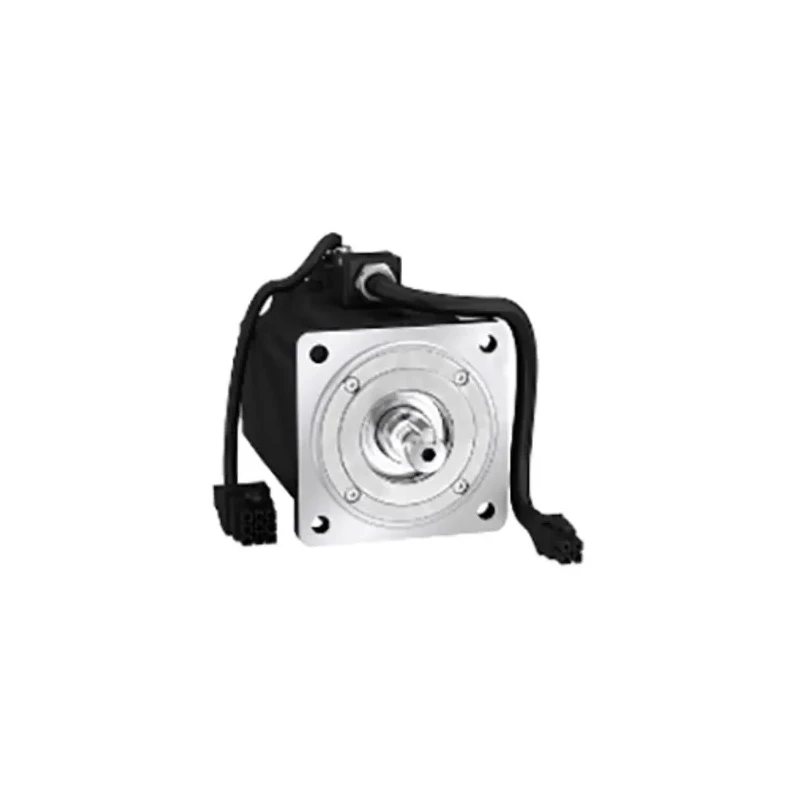

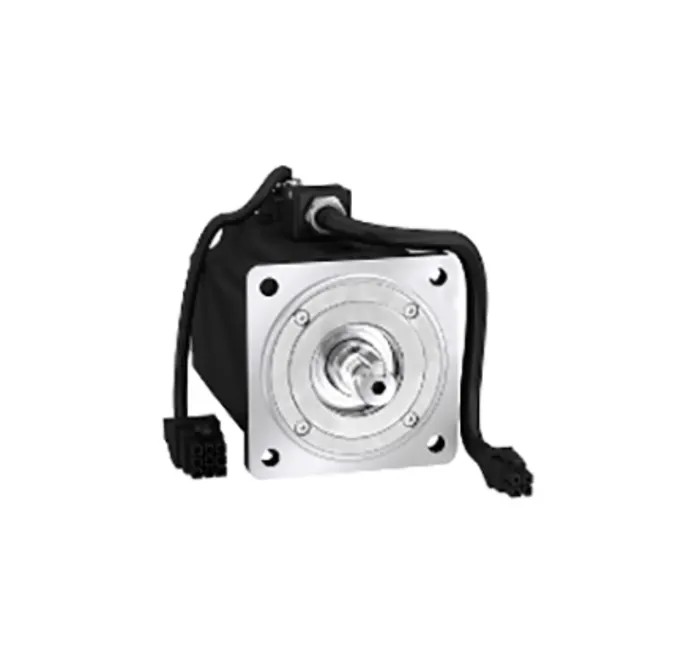

Schneider Electric 220V DC 2 kW Servo Motor, 5000 RPM, 19.11 Nm Max Output Torque, 22 mm Shaft Diameter BCH2LH2033CA6C

Schneider Electric BCH2LH2033CA6C is a high-performance servo motor designed for industrial automation and precise motion control applications. This 220V DC motor delivers continuous power of 2 kW with a rated maximum output torque of 19.11 Nm and a top mechanical speed of 5000 RPM. Equipped with a 20-bit single-turn absolute encoder, it ensures exact positioning and reliable operation in demanding environments.

The motor shaft has a diameter of 22 mm and length of 45 mm, and the unit mounts using a flange and screw interface. The overall motor dimensions are 243.5 mm in length, 100 mm width, and 146 mm depth, making it compact for integration into machines. It features a stall torque of 6.37 Nm and a current rating of 32.3 Arms for continuous stall current operations.

Part of the Lexium 28 series, this servo motor is compatible with Lexium 28 servo drives, particularly the LXM26D model, facilitating seamless integration with three-phase 220V servo drive systems. It includes a MIL connector for electrical connections and supports IP50 and IP65 ingress protection ratings, offering resistance to dust and water ingress suitable for industrial environments.

The motor's rotor inertia is 4.28 kg.cm², providing balanced dynamic response ideal for printing, packaging, winding/unwinding processes, and materials handling systems. Its flange mount meets the 100 mm Asian standard, and it has a centering collar 95 mm in diameter and 7 mm in depth, with 115 mm mounting holes. The natural convection cooling system stabilizes temperature during operation.

This reliable servo motor is designed for machine control solutions requiring high accuracy, durability, and efficient performance. It supports synchronous AC servo motor applications with robust mechanical construction ensuring long operational life under continuous use.

Equipped with 20-bit single-turn absolute encoder for accurate positioning. Features flange and screw mount type with 22 mm diameter shaft. Compact dimensions: 243.5 mm length, 100 mm width, and 146 mm depth. Designed for industrial automation and machine control applications.

Compatible with Lexium 28 servo drives, supporting three-phase 220V operation. Robust build with IP50 and IP65 rated protection. Weight of 6.7 kg ensures stable mounting and operation. Explore more high-quality Servo Motors in the Motors & Pumps category at EnvMart for reliable industrial automation solutions.
